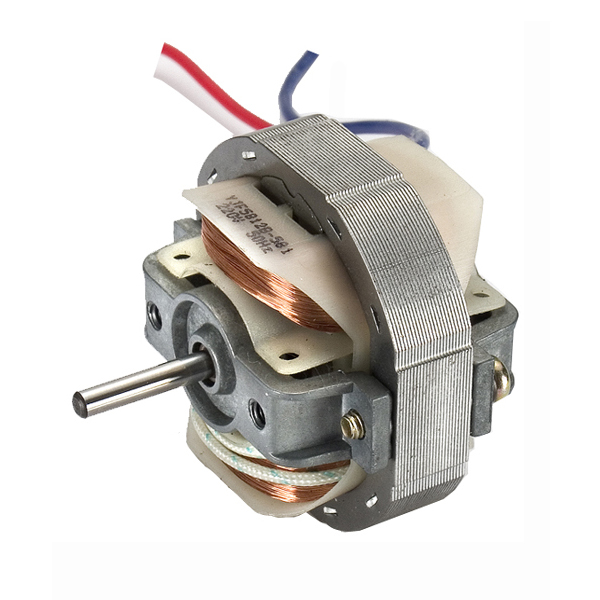

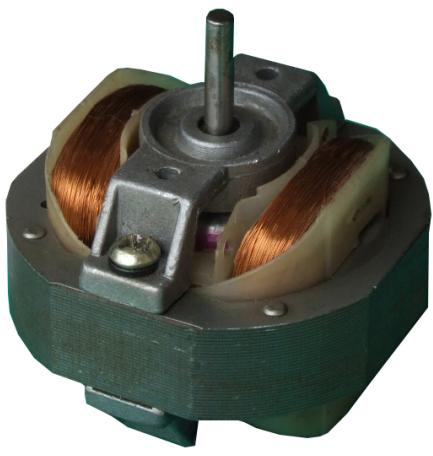

58 series shaded pole motor

Product Description
58 series/52 series shaded pole motor
Fully customized range universal motors designed and manufactured to meet individual customer needs for speed, torque and power.

Technical Specification
Voltage: 110V -240V
Frequency: 50/60Hz
Power Draw: 120Watts
Insulation Class: Class E and F
Speed RPM: 25000 RPM
Protection: thermal fuse devices, with or without reset function
Lamination diameter: 54mm
Shaft diameter: 4.0mm, 4.5mm or 6.35mm, 7.14mm shaft
Bearing: Sleeve bearing
Typically used in hand blender, hair dryer, hand dryer, juicer, food processor etc.

220V AC electric motor with low noise,little vibration for air heater,massager,exhaust fan,slide projector,etc.

Type:
Asynchronous motor
Votalge:
220V/110V 50HZ/60HZ
Phase:
Single phase
Speed:
2300PRM
Insulation glass:
A/E/B/F
Certificate:
CCC,CE,UL,ROSH
Protect Feature:
Totaly Enclosed
Output:
4-40w
Delivyer time:
30 days
Packing:
Cartons

Model:
58-18
Brand:
RETEK
Code:
84189910

Quantity:



Inquire Add to Basket

Product Description

Product Description

58 series/52 series shaded pole motor
Fully customized range universal motors designed and manufactured to meet individual customer needs for speed, torque and power.

Technical Specification
Voltage: 110V -240V
Frequency: 50/60Hz
Power Draw: 120Watts
Insulation Class: Class E and F
Speed RPM: 25000 RPM
Protection: thermal fuse devices, with or without reset function
Lamination diameter: 54mm
Shaft diameter: 4.0mm, 4.5mm or 6.35mm, 7.14mm shaft
Bearing: Sleeve bearing
Typically used in hand blender, hair dryer, hand dryer, juicer, food processor etc.

220V AC electric motor with low noise,little vibration for air heater,massager,exhaust fan,slide projector,etc.

MODEL	LAMINATED COIL (mm)	VOTALGE/ FREQUENCY (V/HZ)	INSULATION	NO LOAD			ON LOAD
MODEL	LAMINATED COIL (mm)	VOTALGE/ FREQUENCY (V/HZ)	INSULATION	INPUT CURRENT (A)	INPUT POWER (W)	SPPEED (R/,M)	INPUT CURRENT (A)	INPUT POWER (W)	SPPEED (R/,M)	OUTPUT POWER (W)	COS (OD)	TORQUE
AB58-JO-12	12	230/50	E	0.10	12.5	2600	0.13	16	2400	1.5	0.55	60
AB58-JO-16	16	230/50	E	0.11	13.5	2700	0.15	17	2350	1.95	0.58	80
AB58-JO-20	20	230/50	E	0.115	14.5	2750	0.14	18	2400	2.5	0.60	100
AB58-JO-35	30	230/50	E	0.145	15	2800	0.16	20	2450	3.0	0.53	120
