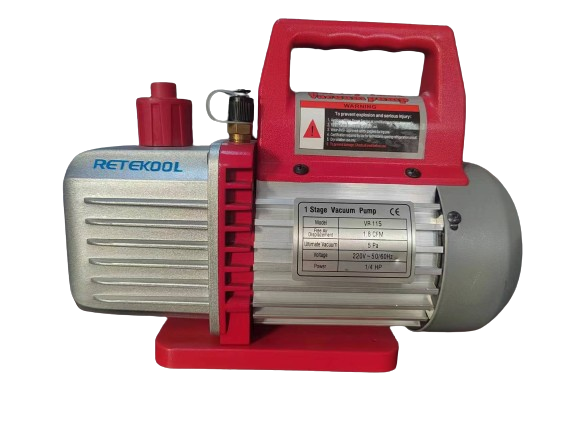

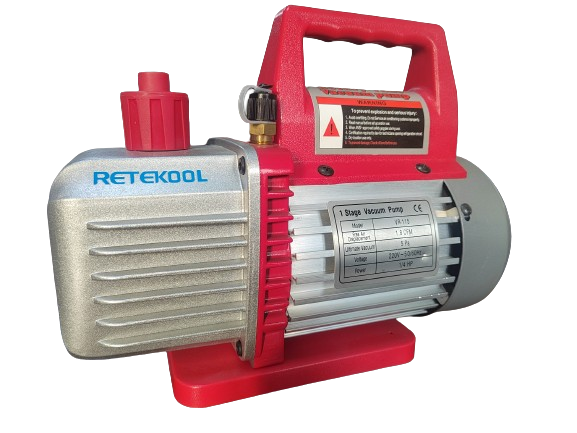

RETEKOOL Brand 3CFM 1/4HP 220V/50Hz Refrigeration Rotary Vane Single Stage Vacuum Pump

Name: RETEKOOL Brand 3CFM 1/4HP 220V/50Hz Refrigeration Rotary Vane Single Stage Vacuum Pump
Brand: RETEKOOL
Rating: 5.0 (44 reviews)

Our vacuum pump is compact, light and attractive in design. It uses the big starting torque and is specially designed for low temperature environment. It is guaranteed start normally in winter’s low temperature. It is applicable to vacuum packaging, vacuum freez ,This kind of pump is widely used in food packaging, scientific research, medical treatment, electronics, chemicals, medicine and laboratory of universities and colleges etc.

Model:
3CFM
Brand:
RETEKOOL
Code:
3CFM

Availability:

Quantity:



Inquire Add to Basket

Product Description

SINGLE STAGE
MODEL		VE115SV	VE125SV
FLOW RATE	50HZ	1.5CFM	2.5CFM
		42L/MIN	70L/MIN
	60HZ	1.8CFM	3CFM
		50L/MIN	84L/MIN
ULTIMATE VACUUM		5PA	5PA
		0.05MBAR	0.05MBAR
POWER		1/4HP	1/4HP
INLET PORT		1/4"FLARE	1/4"FLARE
OIL CAPACITY		310ML	310ML
DIMENSIONS		285X124X230MM	285X124X230MM
WEIGHT		7.3KG	8.1KG

SINGLE STAGE			SINGLE STAGE
MODEL		VE135SV	VE145SV	VE160SV
FLOW RATE	50HZ	3.5CFM	4.5CFM	6.0CFM
	50HZ	100L/MIN	128L/MIN	170L/MIN
	60HZ	4.0CFM	5.0CFM	7.0CFM
	60HZ	114L/MIN	142L/MIN	198L/MIN
ULTIMATE VACUUM5PA		5PA	5PA	5PA
ULTIMATE VACUUM5PA		0.05MBAR	0.05MBAR	0.05MBAR
Power		1/3HP	1/3HP	1/2HP
INLET PORT		1/4&3/8"FLARE	1/4&3/8"FLARE	1/4&3/8"FLARE
OIL CAPACIRY		310MM	300MM	440MM
DIMENTIONS		315X124X240MM	314X124X240MM	335X138X250MM
WEIGHT		9.1KG	9.2KG	11.5KG
