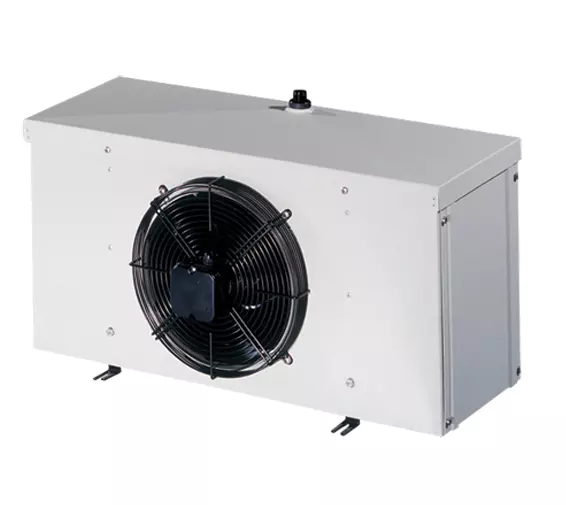

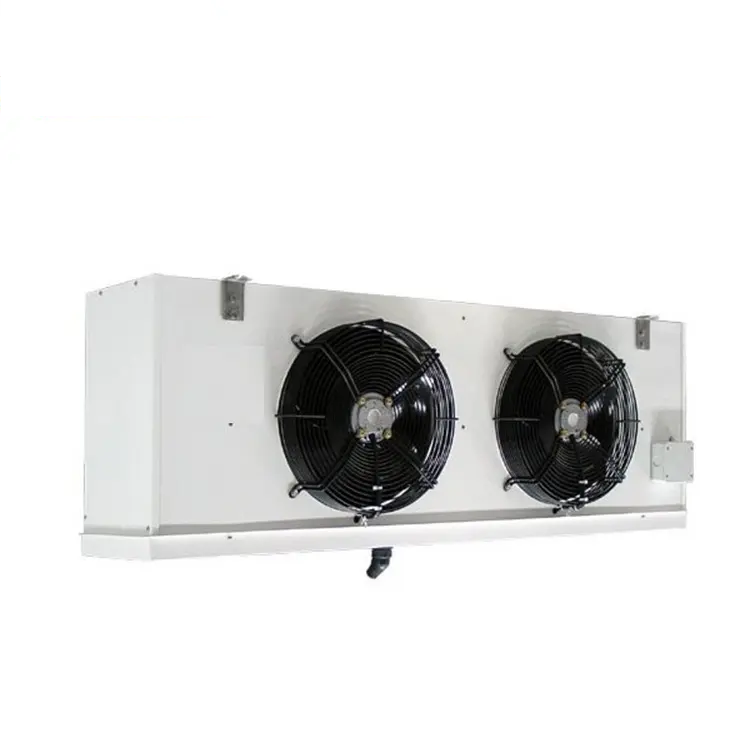

RETEKOOL Brand Cooling Refrigeration Copper Tube Evaporator

Name: RETEKOOL Brand Cooling Refrigeration Copper Tube Evaporator
Brand: RETEKOOL
Rating: 5.0 (98 reviews)

Water to air heat exchangers are used to transfer heat from hot water to air. Water to air heat exchangers are commonly used in outdoor boiler applications when hooking up units to existing forced air furnaces.
These exchangers are designed to transfer hot water heat through 3/8” seamless copper tubes with high density aluminum fins, with minimal flow resistance. Exchanger housings are manufactured with galvanized steel. Headers are made from copper and have a 1” ID.

Model:
RTKOOL-Heat exchanger 001
Brand:
RETEKOOL

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

 As our company main products copper coil heat exchanger,It is widely used in a variety of applications such as refrigerators, freezers and other refrigeration tools manufacturers or alternatives in the home and business sectors. We mainly supply copper coil heat exchangers for manufacturers of condensing unit such as refrigerators and freezers, wholesalers and distributors.

Size Information

 Mould Size Information

Product Description

Item	Copper Condenser & Evaporator
Raw Material	Copper Tube , Aluminium Fin,Galvanized Plate and stainless steel plate
Size Of Copper Tube	7mm,7.94mm,9.52mm ;
Aluminium Foil	Hydrophilic or Bare ;
Fin Type	Louver fin , Flat Fin , Corrugated fin ;
Pitch of holes and pitch of rows	2521.65mm;19.0512.7mm; 25.4*22mm .
Pitch of fins	1.8-6mm
Test	30MPA air pressure notrogen leakage test

Company Introduction

00:03

00:18

 JINAN RETEK INDUSTRIES INC is a China manufacturer of refrigeration condenser , evaporator  ,heat exchanger and copper driers in China .
We are cooperating with many refrigerator & freezer & heater factories . From year 2018 , we begin to develop 5G Base Station Radiator . Now we are supplying 5G station radiator to one famous mobile company .  If you have any interest in our products , pls just send an email to us or call us .
