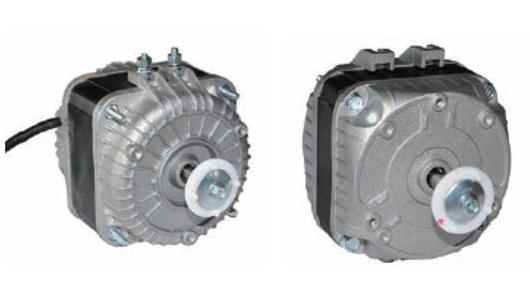

Refrigerator Condenser 5W Fan Motor

YZF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220~240v, 50~50Hz or 110~120v, 60Hz. They are widely used in the radiator, evaporator and other refrigeration equipments. The output power of motors is from 4w to 34w, which is relate to stack thickness and coil parameters. The insulation grade of motors is B level, and the protection class is IP42. On request of IP44 is available. The motor with output power less than 10w are with impedance protection and the motors with output power is higher than 10w equipped with thermal protection. The thermal protector’s is 120℃+/-5℃,135℃+/-5℃or 150℃+/-5℃. The applicable ambient temperature is -30℃~50℃. The average service life of motors is over 20,000 hours.

Model:
YZF5-13,YZF10-20,YZF16-25
Brand:
RETEKOOL

Availability:

Quantity:



Inquire Add to Basket

We can supply YZ Series refrigerator fan motor,shaded pole motor for radiators/evaporators,fan motor,motor,electric fan motor,electric motor..

YZ series motors are shaded pole motors with single-phrase and four-pole, and running

at the rated voltage/frequency of 220-240v, 50/60HZ or 110-120v, 60HZ. They are widely applied to radiators, evaporators and other refrigeration equipments.

1)4 shaded poles,single phase ,alternating current.

2)output power:5W, 6W,7W, 10W,12W,16W, 18W, 25W, 34W

3)Running at rated voltage of 220-240V,50/60HZ or 110-120V,60HZ

4) Insulation class of motors is B with the protection class IP42.

IP44 is also available.

6) Applicable ambient temperature is -30degree to 50 degree

7) Average service life is over 20000 hours

8) CE,VDE,UL, RoHs& CCC certificates be attained

9)Accessories need or not is up to you.

motor 5W motor shaded pole motor refrigerator motor condensing fan motor freezer fan motor
