A Refrigerator Condenser is the part of a refrigerator that releases heat removed from inside the cabinet. It works by cooling hot refrigerant gas from the compressor and turning it back into liquid, so the refrigeration cycle can continue.
That is the simplest answer. If a refrigerator is not cooling properly, understanding the condenser helps explain why. The condenser is one of the key components that determines whether the fridge can remove heat efficiently, maintain stable temperatures, and avoid overloading the compressor.
A Refrigerator Condenser is a heat-exchange component in the refrigeration system. Its job is to take high-pressure, high-temperature refrigerant vapor from the compressor and release that heat into the surrounding air.
As the refrigerant loses heat inside the condenser, it changes from vapor into liquid. That liquid then moves through the rest of the refrigeration system to support the cooling process inside the fridge.
In practical terms, the condenser is the part that helps the refrigerator get rid of unwanted heat. A fridge does not simply “make cold air.” It removes heat from the inside and transfers it outside, and the condenser is central to that process.
To understand how a Refrigerator Condenser works, it helps to look at the refrigeration cycle step by step.
The cycle starts when the compressor compresses refrigerant vapor. This raises both the pressure and the temperature of the refrigerant.
At this stage, the refrigerant is hot and under high pressure.
The hot gas then flows into the Refrigerator Condenser. Because the refrigerant is hotter than the surrounding air, heat moves from the condenser coils or tubing into the room.
As air passes over the condenser surface, the refrigerant cools down. In some refrigerators, this happens through natural airflow. In others, a condenser fan helps move air across the coils.
Once enough heat is removed, the refrigerant changes from high-pressure vapor into high-pressure liquid.
This phase change is where the condenser gets its name.
After leaving the condenser, the refrigerant travels through an expansion device, where pressure drops. It then enters the evaporator, absorbs heat from inside the refrigerator, and the cycle repeats.
The Refrigerator Condenser does more than complete one step in the cooling cycle. It directly affects overall refrigerator performance.
If the condenser cannot release heat effectively, the whole system becomes less efficient. The refrigerator may run longer and struggle to maintain the target temperature.
Poor condenser performance increases stress on the compressor. When heat rejection is weak, the compressor has to work harder to keep the fridge cold.
A clean and properly functioning condenser can help reduce unnecessary runtime. A dirty or poorly ventilated condenser often leads to higher power use.
Excess heat is hard on refrigeration systems. Better condenser performance generally supports more stable operation and lower long-term wear.
The location of the Refrigerator Condenser depends on the refrigerator design.
Many older refrigerators have visible condenser coils on the back of the unit. These are easy to identify and relatively easy to clean.
Many modern refrigerators place the condenser underneath the appliance, usually near the compressor. These models often use a fan to improve airflow.
Some refrigerators use condenser tubing built into the cabinet walls or hidden behind structural panels. This gives the appliance a cleaner appearance, but servicing and inspection can be less straightforward.

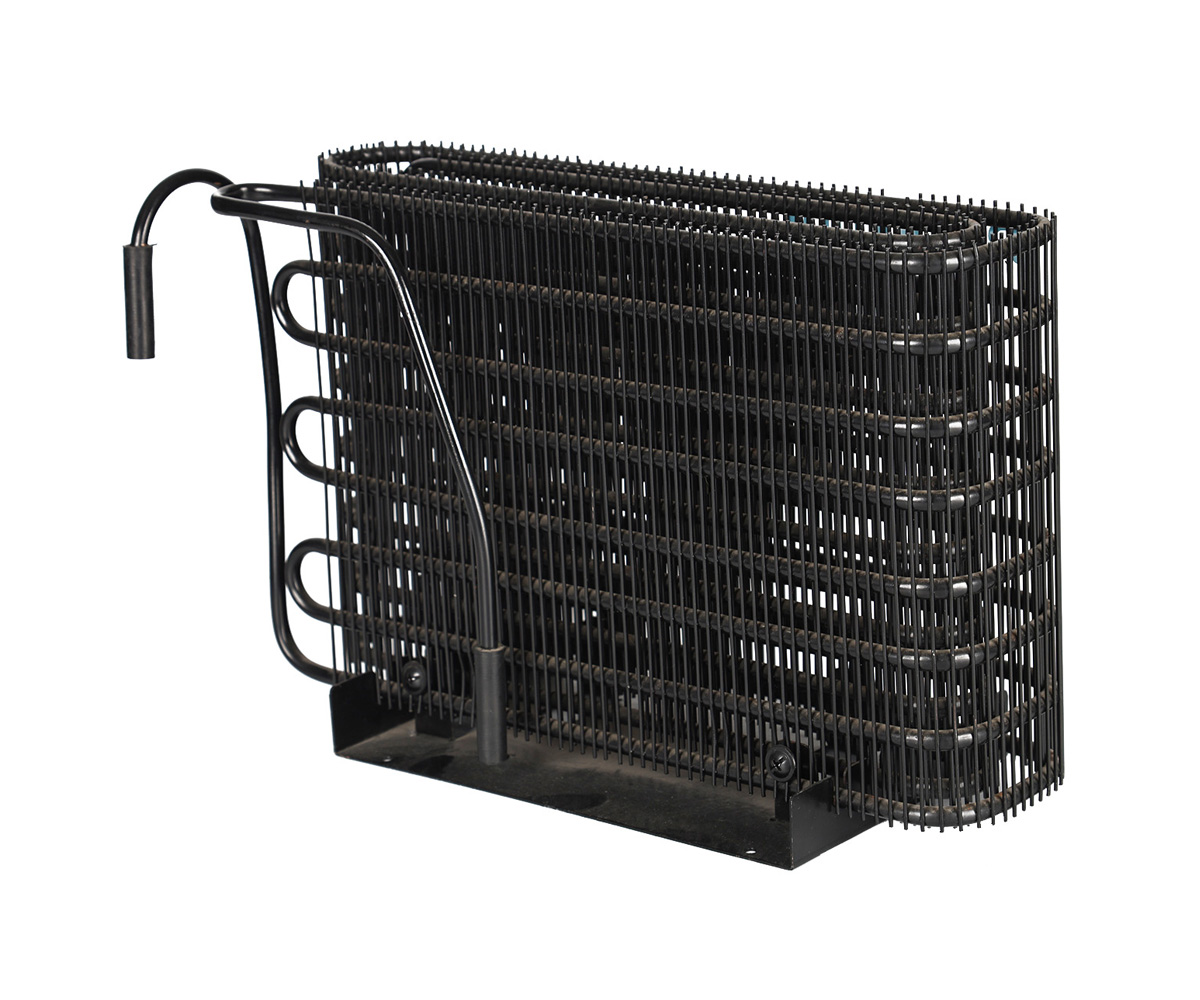

For users trying to identify the part, the condenser may appear as black coils, metal tubing, or a compact heat-exchange assembly near the compressor section.
The condenser does not work alone. Several nearby parts influence how well it performs.
These provide the surface area needed to transfer heat from the refrigerant to the air.
On many refrigerators, a fan blows air over the condenser to improve heat dissipation. If this fan fails, condenser performance can drop quickly.
The compressor sends hot, pressurized refrigerant into the condenser. These two components work closely together.
The surrounding air space matters more than many users realize. Even a good condenser cannot perform well if airflow is blocked.
Many users confuse the condenser and the evaporator, but their functions are opposite.
Releases heat to the outside air
Usually located outside the food storage area
Receives hot, high-pressure refrigerant from the compressor
Changes refrigerant from vapor to liquid
Absorbs heat from inside the refrigerator
Usually located behind interior panels or inside the freezer section
Receives low-pressure refrigerant after expansion
Helps create the cooling effect inside the cabinet
A simple way to remember the difference is this: the evaporator takes heat out of the fridge, and the Refrigerator Condenser throws that heat away.
Condenser-related issues can affect cooling, efficiency, and reliability. The symptoms are often practical and easy to notice.
If the condenser cannot reject heat properly, the fridge may struggle to maintain the correct temperature.
When the condenser is dirty or airflow is poor, the system often runs longer to compensate.
A hot lower rear section can point to weak heat dissipation, especially if combined with poor cooling.
Longer compressor cycles often mean higher electricity consumption.
This is one of the most common causes of reduced condenser efficiency.
It is important to note that these symptoms do not prove the condenser itself is damaged. Similar symptoms can also come from fan problems, door seal leaks, thermostat issues, or other cooling-system faults. That is why inspection should be systematic.
Dust, grease, and pet hair can collect on the condenser surface. This reduces heat transfer and is one of the most common maintenance problems.
If the refrigerator is installed too close to the wall or surrounded by clutter, air cannot circulate properly around the condenser.
On models with forced-air condenser cooling, a failed fan can cause overheating and weak heat rejection.
Physical damage or refrigerant leaks are more serious problems and may require professional service.
For most refrigerators, condenser maintenance is straightforward and worthwhile.
Use a soft brush or vacuum attachment to remove dust and debris. This is especially important in homes with pets, grease, or heavy dust.
Leave enough space around the refrigerator according to the manufacturer’s installation guidance. Airflow restriction reduces condenser efficiency.
If the model has a condenser fan, unusual noise or lack of airflow may indicate that the fan needs inspection.
If the refrigerator suddenly runs longer, cools poorly, or feels hotter than usual, the condenser area is one of the first places worth checking.
Some condenser-related issues go beyond routine cleaning.
Professional service is usually the better choice when:
The refrigerator still cools poorly after coil cleaning
The condenser fan is not operating correctly
The tubing appears damaged or corroded
There are signs of refrigerant leakage
The compressor is overheating repeatedly
The cause of the cooling problem is unclear
This matters because sealed-system repairs are more complex than basic maintenance. Incorrect diagnosis can waste time and money.
Consider a refrigerator with dust-covered condenser coils and restricted airflow under the unit. The compressor may still run, and the evaporator may still get cold, but the system cannot reject heat efficiently. As a result, internal temperatures may become unstable, the compressor may run longer, and energy use may rise.
Now compare that with a refrigerator that has a clean Refrigerator Condenser, open airflow, and a working fan. Heat leaves the system more efficiently, cooling recovery is faster, and compressor stress is lower.
This is why condenser maintenance is not just a technical detail. It directly affects real-world refrigeration performance.
A Refrigerator Condenser is the component that releases heat removed from inside the fridge. It works by receiving hot, high-pressure refrigerant from the compressor, transferring that heat to the surrounding air, and condensing the refrigerant back into liquid.
In simple terms, if the evaporator absorbs heat from inside the refrigerator, the Refrigerator Condenser removes that heat from the system. That makes it one of the most important parts in the refrigeration cycle, with direct impact on cooling performance, efficiency, and long-term reliability.
