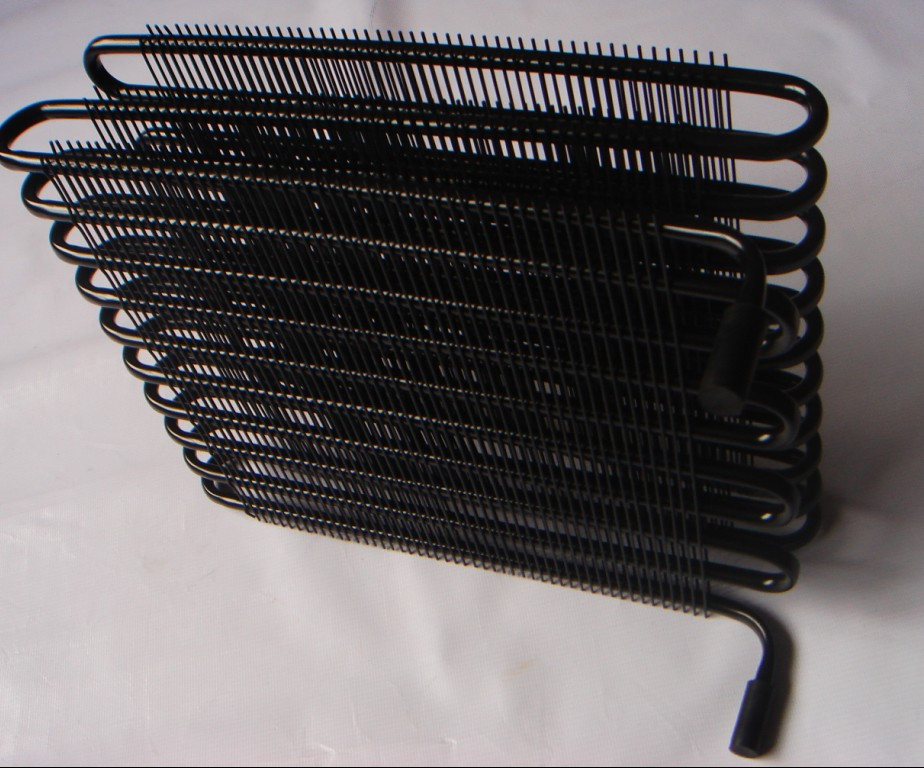

In industrial and commercial heat exchange systems, the structural integrity of the condenser dictates the lifespan and safety of the entire refrigeration cycle. Specifying an inadequate plate thickness leads to tube-to-plate joint failure, cross-contamination, and catastrophic pressure leaks. Conversely, over-specifying thickness results in unnecessary material costs, excessive weight, and diminished thermal responsiveness. To ensure long-term reliability, engineers and procurement teams must evaluate tube plate thickness through the lens of operating pressures, thermal stress, and industry compliance standards. This guide breaks down the technical criteria for specifying the optimal thickness for your application, focusing on mechanical load distribution, material yield strength, and strict adherence to ASME and TEMA engineering codes. You will learn how to balance structural rigidity with heat transfer efficiency across various system footprints.
Plate thickness directly controls deflection limits; excessive deflection compromises the tube-to-plate joints and causes refrigerant leaks.
Operating pressure differentials and thermal expansion rates are the primary variables dictating minimum thickness requirements.
High-pressure refrigerants (like CO2) in a compact refrigeration condenser require thicker, higher-yield-strength plates despite the smaller footprint.
Compliance with ASME BPVC and TEMA standards provides the baseline mathematical frameworks for calculating safe plate thickness.

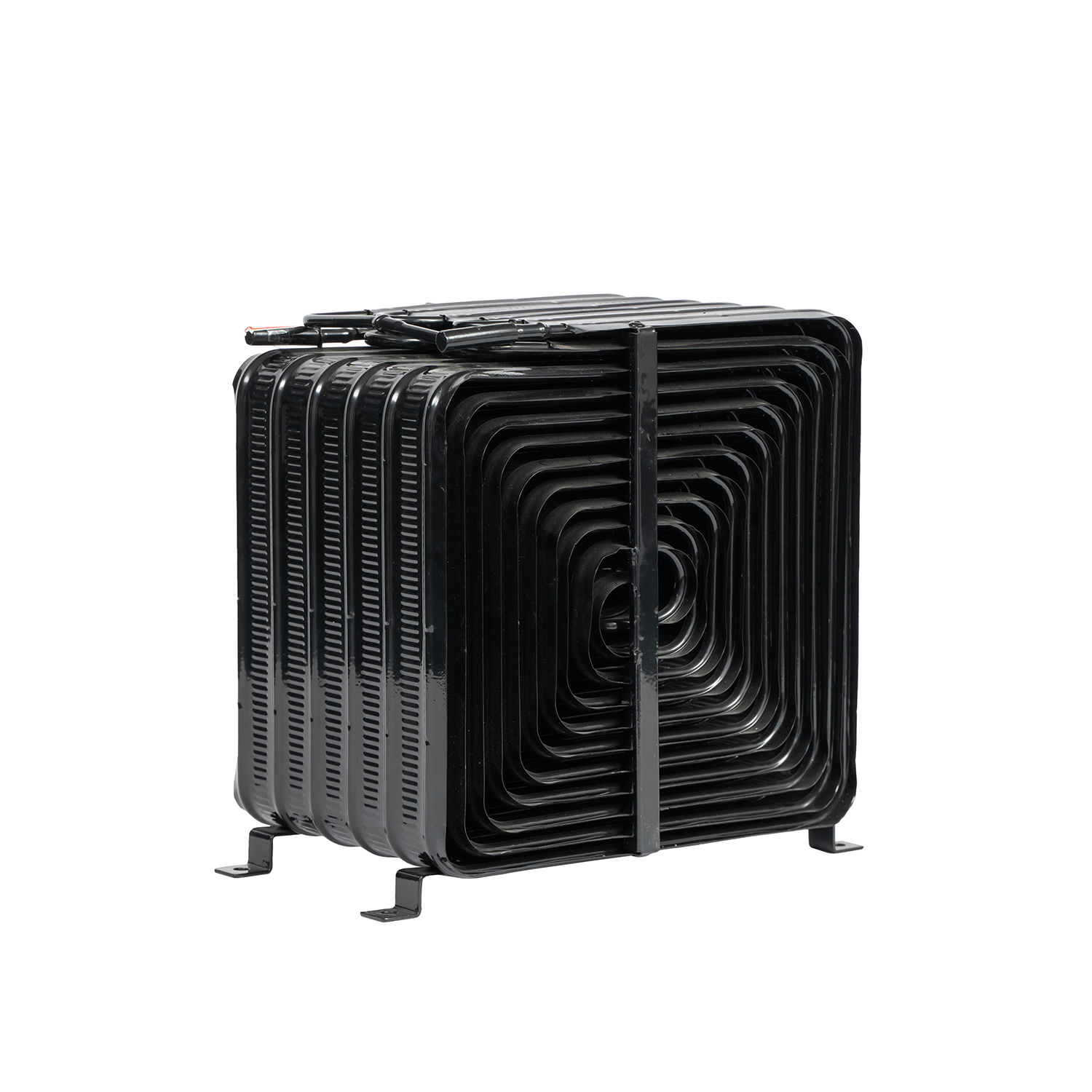

The primary function of the tube plate, often referred to as a tubesheet, is to act as the physical barrier separating the cooling medium from the refrigerant while structurally supporting the tube bundle. A well-designed tube plate condenser relies on this component to maintain strict fluid isolation under continuous operation. The plate must absorb significant mechanical stress generated by fluid pressure on both sides, along with the dead weight of the tubes and the fluids contained within them. When you look at a large-scale chiller or a heavy-duty industrial refrigeration unit, the tubesheet is the anchor point holding hundreds or thousands of individual tubes in precise alignment.
Minimizing plate bending, or deflection, is the ultimate success metric for maintaining the integrity of expanded or welded tube joints. When a plate deflects under pressure, it exerts lateral forces on the tube ends. This movement can break the mechanical seal or fracture the root of a weld, leading to immediate refrigerant loss. Controlling deflection through precise thickness calculations ensures the structural geometry remains stable throughout the equipment's operational life. Field technicians frequently encounter systems where a tubesheet that was specified just a fraction of an inch too thin has bowed outward, causing the peripheral tubes to pull away from their expanded joints.
To understand the mechanical load distribution, consider that the tubesheet acts as a uniformly loaded circular or rectangular plate supported at its edges. The pressure from the refrigerant side pushes against the plate, while the cooling water side exerts its own counter-pressure. The differential between these two forces dictates the net load. Furthermore, the tubes themselves act as stays or tie-rods, providing some structural support to the plate. However, this support is only effective if the plate is thick enough to hold the tubes rigidly in place without yielding.
Common Deflection Limits by Application Type | |||
Application Type | Typical Operating Pressure (psi) | Maximum Allowable Deflection (inches) | Primary Failure Risk if Exceeded |
|---|---|---|---|
Commercial HVAC | 150 - 300 | 0.015 | Mechanical joint weeping |
Industrial Process Cooling | 300 - 600 | 0.010 | Weld root micro-cracking |
High-Pressure Ammonia | 600 - 1000 | 0.005 | Catastrophic tube pull-out |
The maximum allowable working pressure (MAWP) on both the shell side and tube side dictates the baseline thickness of the plate. Engineers calculate the differential pressure across the tubesheet to determine the maximum load the plate will experience during worst-case scenarios. Pressure surges, common during system startups or unexpected valve closures, add dynamic loads that the plate must withstand without yielding. Cyclic loading from continuous pressure fluctuations also contributes to material fatigue over time, requiring a thickness buffer to prevent long-term structural degradation.
When a compressor cycles on, the sudden spike in discharge pressure hits the condenser tubesheet like a hammer. If the plate lacks the mass and rigidity to absorb this shock, the metal flexes. Over thousands of cycles, this flexing causes work-hardening and eventual fatigue cracking around the tube holes. You must account for these transient pressure spikes, not just the steady-state operating pressure, when determining the final plate dimension.
During operation, a significant thermal gradient exists between the tube side and the plate side. The tubes and the plate often operate at different temperatures and may be constructed from different metals. These differing coefficients of thermal expansion induce severe shear stress at the tube-to-plate joints. The plate must possess specific thickness tolerances to absorb this thermal load without fracturing or causing the tubes to buckle. Adequate thickness provides the necessary rigidity to force the expansion outward along the length of the tubes rather than distorting the plate itself.
For example, if you have copper tubes expanded into a carbon steel tubesheet, the copper will expand faster and further than the steel as the system heats up. This differential expansion pushes against the walls of the tube hole. A thick plate contains this expansion, maintaining the seal. A thin plate will warp under the localized stress, permanently deforming the hole and destroying the joint integrity once the system cools down.
The inherent yield strength of the chosen material drastically alters the required thickness. Carbon steel, stainless steel, and copper-nickel alloys each offer different mechanical properties. A high-strength stainless steel plate can achieve the same deflection resistance at a thinner profile compared to standard carbon steel. Additionally, engineers must add a corrosion allowance to the baseline calculation. This extra material compensates for expected degradation over the condenser's lifespan, ensuring the plate maintains structural integrity even at the end of its service life.
Corrosion allowances typically range from 1/16 inch to 1/8 inch, depending on the aggressiveness of the cooling medium. If you are using raw river water or seawater for cooling, the corrosion rate will be significantly higher than if you are using a closed-loop treated glycol system. You must add this allowance to the calculated minimum thickness required for pressure containment.
Material Yield Strength and Typical Thickness Multipliers | |||
Material Grade | Yield Strength (ksi) | Relative Thickness Multiplier (Base = Carbon Steel) | Common Use Case |
|---|---|---|---|
Carbon Steel (SA-516 Gr 70) | 38 | 1.00 | Standard commercial cooling |
Stainless Steel (304/316) | 30 - 35 | 1.10 - 1.15 | Corrosive environments |
Duplex Stainless (2205) | 65 | 0.75 | High-pressure marine applications |
Titanium (Grade 2) | 40 | 0.95 | Extreme chemical processing |
Ligament efficiency is the ratio of the solid material between tube holes to the overall tube pitch. When designing a condenser for maximum heat transfer, engineers often pack tubes closely together. This tight tube spacing reduces ligament efficiency, leaving less solid metal to bear the pressure loads. To prevent structural yielding under high-pressure conditions, a proportionally thicker plate is required. The thickness compensates for the reduced cross-sectional area of the ligaments, preventing cracks from propagating between adjacent tube holes.
If you drill holes too close together, the remaining metal (the ligament) becomes a weak point. Under pressure, these thin strips of metal can tear. Increasing the plate thickness adds cross-sectional area to these ligaments, restoring the necessary shear strength to hold the pressure boundary intact.
Standard thickness ranges for commercial HVAC applications generally accommodate moderate pressures and predictable thermal loads. These applications utilize standard materials where extreme pressure spikes are rare. In contrast, heavy-duty industrial process cooling demands custom, heavy-wall plates. Industrial environments often involve corrosive fluids, extreme temperature differentials, and high-pressure refrigerants. A standard plate mounted condenser coil is sufficient for rooftop commercial units, but chemical processing plants require engineered heavy-duty configurations to prevent catastrophic failure.
When specifying equipment for a standard office building chiller, a tubesheet thickness of 1 to 1.5 inches is often adequate. However, if you are installing a condenser in a petrochemical refinery handling volatile hydrocarbons, that same diameter tubesheet might need to be 3 to 4 inches thick to meet safety margins and corrosion allowances.
The thickness of the plate directly impacts the reliability of the tube-to-plate joints. Mechanically expanded joints require sufficient "land" or plate thickness for the tube to grip effectively. If the plate is too thin, the expansion process cannot create a reliable seal, leading to tube pull-out under pressure. For fully welded joints, insufficient thickness leads to micro-cracking at the weld root due to thermal distortion during the welding process. The plate thickness must also accommodate specific joint geometries, such as grooved holes, which require extra depth to lock the expanded tube in place.
In mechanical expansion, a tool is inserted into the tube end and rotated, forcing the tube wall outward against the hole in the tubesheet. For this friction fit to hold, there must be enough surface area contact. Industry practice generally dictates that the expansion depth should be at least 80% of the tubesheet thickness, up to a maximum of about 2 inches. If your plate is only 0.5 inches thick, you simply do not have enough contact area to secure a high-pressure joint.
Engineers face a conceptual trade-off between structural rigidity and thermal efficiency. Thicker plates provide maximum strength and prevent deflection, but they also increase the thermal mass of the system. This added mass can slow system responsiveness during rapid temperature changes. Optimizing this balance involves selecting high-yield materials that allow for thinner plates without sacrificing safety. Advanced manufacturing techniques, such as precision CNC drilling and automated orbital welding, help achieve strong joints without relying solely on excessive plate thickness.
You want the plate to be as thin as safely possible to reduce weight and material usage, but thick enough to guarantee zero deflection. Using high-strength alloys like Duplex stainless steel allows you to reduce the plate thickness by up to 25% compared to standard carbon steel, giving you a lighter, more responsive condenser that still meets all pressure vessel codes.
Designing a compact refrigeration condenser for modern, high-pressure natural refrigerants like R-744 (CO2) or Ammonia presents unique challenges. These refrigerants operate at significantly higher pressures than legacy fluorocarbons. The reduced surface area in compact designs means the pressure density on the tubesheet is concentrated. Consequently, these compact units often necessitate proportionally thicker plates to handle the intense mechanical loads, ensuring the smaller footprint does not compromise pressure containment.
A transcritical CO2 system can see discharge pressures exceeding 1400 psi. Even on a small condenser with a 12-inch diameter tubesheet, that pressure exerts over 150,000 pounds of force against the plate. You cannot use standard commercial HVAC plate thicknesses for these applications. The plate must be engineered specifically for high-pressure containment, often resulting in a component that looks disproportionately thick compared to its overall diameter.
Plate thickness heavily influences the overall dry and operating weight of the condenser. In skid-mounted or roof-mounted systems, structural load limits restrict the maximum allowable weight of the equipment. Engineers must evaluate the weight penalty of thicker plates against the structural limits of the installation site. Utilizing high-strength alloys can reduce the required thickness and overall weight, keeping the condenser within acceptable limits for modular or elevated installations.
When building a modular chiller plant on a structural steel skid, every pound matters. If you over-specify the tubesheet thickness by just one inch on a large condenser, you can add hundreds of pounds of dead weight. This requires heavier structural steel for the skid, larger lifting cranes for installation, and stronger roof supports. Precision engineering is required to find the exact thickness that provides safety without unnecessary mass.
The ASME Boiler and Pressure Vessel Code (BPVC) Section VIII (Div 1 & Div 2) governs tubesheet design and thickness calculations. These codes provide strict formulas for determining the minimum safe thickness based on pressure, temperature, and material properties. Adherence to these codes is not optional for industrial applications; it protects against liability and ensures a recognized baseline of safety. Inspectors verify compliance through rigorous design reviews and material traceability.
Section VIII, Division 1, Part UHX provides the specific rules for designing tubesheets. It treats the tubesheet as a complex structural element, accounting for the support provided by the tubes and the shell. You cannot simply guess the thickness; you must run the UHX calculations, which involve dozens of variables and iterative steps to prove the design is safe under all operating conditions.
The Tubular Exchanger Manufacturers Association (TEMA) provides comprehensive guidelines for calculating bending moments and shear stress in tubesheets. TEMA classes dictate different minimum thickness requirements based on application severity. Class R is designated for severe refinery service, Class C for moderate commercial applications, and Class B for chemical process service. Each class applies different safety factors and minimum thickness rules to ensure the condenser withstands the specific operational hazards of its intended environment.
TEMA standards often require thicker plates than the bare minimum calculated by ASME codes. For instance, TEMA Class R mandates a minimum tubesheet thickness based on the tube diameter, regardless of how low the operating pressure might be. This ensures a robust joint that can withstand aggressive mechanical cleaning and harsh industrial environments.
Mathematical thickness design formulas rely on several critical variables to ensure structural safety. You must gather accurate data for each of these inputs before beginning the design process.
Determine the Design Pressure (P): The maximum internal pressure the system will face, including safety margins above normal operating pressure.
Identify the Allowable stress of the plate material (S): The maximum stress the material can endure before yielding at the specific design temperature.
Calculate the Tubesheet configuration factor (F): A multiplier based on how the plate is supported by the shell and channel (e.g., fixed, floating, or U-tube).
Establish the Corrosion allowance (CA): Additional thickness added to account for material loss over the expected lifespan of the equipment.
Determine the Joint efficiency factor (E): A rating of the reliability of the welded or expanded joints, based on the type of construction and level of non-destructive testing performed.
Verifying the integrity of thick-plate tube joints requires rigorous Non-Destructive Testing (NDT). Liquid penetrant testing (PT) and magnetic particle testing (MT) are utilized to detect surface cracks and discontinuities in the welds. For thick plates, ultrasonic testing (UT) is crucial prior to drilling to verify the internal soundness of the raw material, ensuring there are no hidden laminations or voids that could compromise the final component.
When you are machining a 4-inch thick steel plate, a hidden lamination inside the metal can cause the plate to split under pressure. Ultrasonic testing scans the entire volume of the raw plate before any drilling begins. Once the tubes are welded to the plate, liquid penetrant testing ensures there are no microscopic cracks in the weld root that could leak refrigerant.
Pressure testing validates plate integrity under simulated operating conditions. Hydrostatic testing involves filling the condenser with water and pressurizing it beyond its design limit to check for leaks and structural yielding. For compact systems handling high-pressure natural refrigerants, helium mass spectrometer leak testing is necessary. Helium's small atomic size allows it to escape through microscopic defects, detecting micro-deflections and tiny joint failures that water testing might miss.
During a hydrostatic test, the vessel is typically pressurized to 1.3 or 1.5 times its maximum allowable working pressure. Inspectors monitor the tubesheet for any signs of bowing or weeping at the tube joints. If the plate is too thin, this test will reveal the flaw before the unit ever leaves the manufacturing facility.
Defaulting to excessively thick plates incurs severe financial and logistical penalties. Unnecessary thickness drives up raw material costs and increases machining time. The cascading effect includes the need for heavier mounting hardware, increased transportation costs, and extended material lead times. Over-specifying also complicates the tube expansion process, requiring specialized tooling to achieve a proper seal across a deep tube hole.
Drilling thousands of holes through a plate that is two inches thicker than necessary wastes days of machine time and burns through expensive drill bits. Furthermore, standard tube expanders only reach a certain depth. If your plate is too thick, you have to step-roll the tubes, a labor-intensive process that increases manufacturing costs and introduces more opportunities for joint failure.
The failure modes of thin plates are severe. Under-specified plates suffer from bowing under pressure, which distorts the tube holes and breaks the joint seals. This leads to ligament cracking between tube holes, allowing cross-contamination of fluids. In high-pressure systems, a thin plate can suffer catastrophic blowout, resulting in immediate system failure, environmental hazards, and severe safety risks for facility personnel.
When a tubesheet bows, the holes on the outer edge become oval-shaped. The round tubes can no longer seal against an oval hole. Refrigerant leaks into the cooling water, or worse, water leaks into the refrigerant loop, destroying the compressors and requiring a complete system replacement.
To mitigate these risks, engineers utilize Finite Element Analysis (FEA) software during the design phase. FEA simulates complex pressure and thermal loads, identifying stress concentrations and optimizing plate thickness before manufacturing begins. Partnering with manufacturers who provide transparent calculation sheets and material test reports (MTRs) ensures the fabricated plate matches the engineered specifications, preventing costly failures in the field.
FEA allows you to visualize exactly how the plate will deform under pressure. You can see the high-stress areas around the outer perimeter and adjust the design accordingly. This computational modeling takes the guesswork out of tubesheet design, ensuring you specify the exact thickness required for safe, reliable operation.
To ensure your heat exchange systems operate safely and efficiently, you must treat plate thickness as a critical engineered dimension rather than a standard default. Follow these steps to verify your equipment specifications:
Audit your current condenser specifications against actual field operating pressures and thermal loads.
Prioritize manufacturers that strictly adhere to ASME and TEMA standards for all tubesheet calculations.
Request Finite Element Analysis (FEA) for custom applications or high-pressure refrigerant systems.
Consult with a specialized heat exchanger manufacturer to perform a comprehensive structural analysis on your next project.
A: Minimum thickness is not a universal measurement. It is dictated by TEMA and ASME codes based on tube diameter, design pressure, material allowable stress, and ligament efficiency. Each application requires a specific calculation to determine the safe minimum.
A: Plate thickness determines the surface area available for mechanical expansion or welding. Sufficient thickness provides the necessary grip for expanded tubes and prevents thermal distortion and micro-cracking during the welding process.
A: Compact units often utilize high-pressure natural refrigerants like CO2. The reduced surface area concentrates the pressure density, requiring proportionally thicker plates to handle the intense mechanical loads within a smaller footprint.
A: A thicker plate prevents leaks caused by structural deflection and bowing. However, it must be paired with precise machining and proper joint construction to guarantee a leak-free seal.
A: Calculations involve variables such as design pressure, allowable stress of the material, tube pitch, ligament efficiency, tubesheet configuration factors, and a designated corrosion allowance, following ASME or TEMA formulas.
A: A thin plate will deflect under pressure, leading to tube pull-out, weld root cracking, and ligament failure between holes. This causes cross-contamination of fluids and catastrophic loss of refrigerant.
