Air Conditioner Bracket
An air conditioner bracket is a sturdy metal framework designed to safely mount and stabilize outdoor AC units. Typically made from galvanized steel or aluminum, these brackets provide corrosion resistance and long-term durability in various weather conditions.
The adjustable design ensures proper installation on walls or rooftops while maintaining stability and vibration reduction.
Air conditioner bracket material mainly is cold rolled plate / hot rolled plate/ stainless steel.
Hot rolled plate
Hot rolled plate:(moderate price, clean surface, thickness, width standard, do not need to deal with.
Cold rolled plate and hot rolled plate mean the same thing, but the cold rolled plate is a little bit harder, usually use hot rolled sheet.
The regular thickness of hot rolled plate is 1.5,1.8,2.0,2.3,2.5mm.
Galvanized plate
Galvanized plate: price is slightly expensive, the surface of the zinc layer treatment, rust effect is a little better, galvanized plus spray rust effect is better.
Stainless steel
Stainless steel: price is expensive, not rust, good effect, more hard, rarely used.
Air conditioner bracket style：Split Bracket and folding bracket.

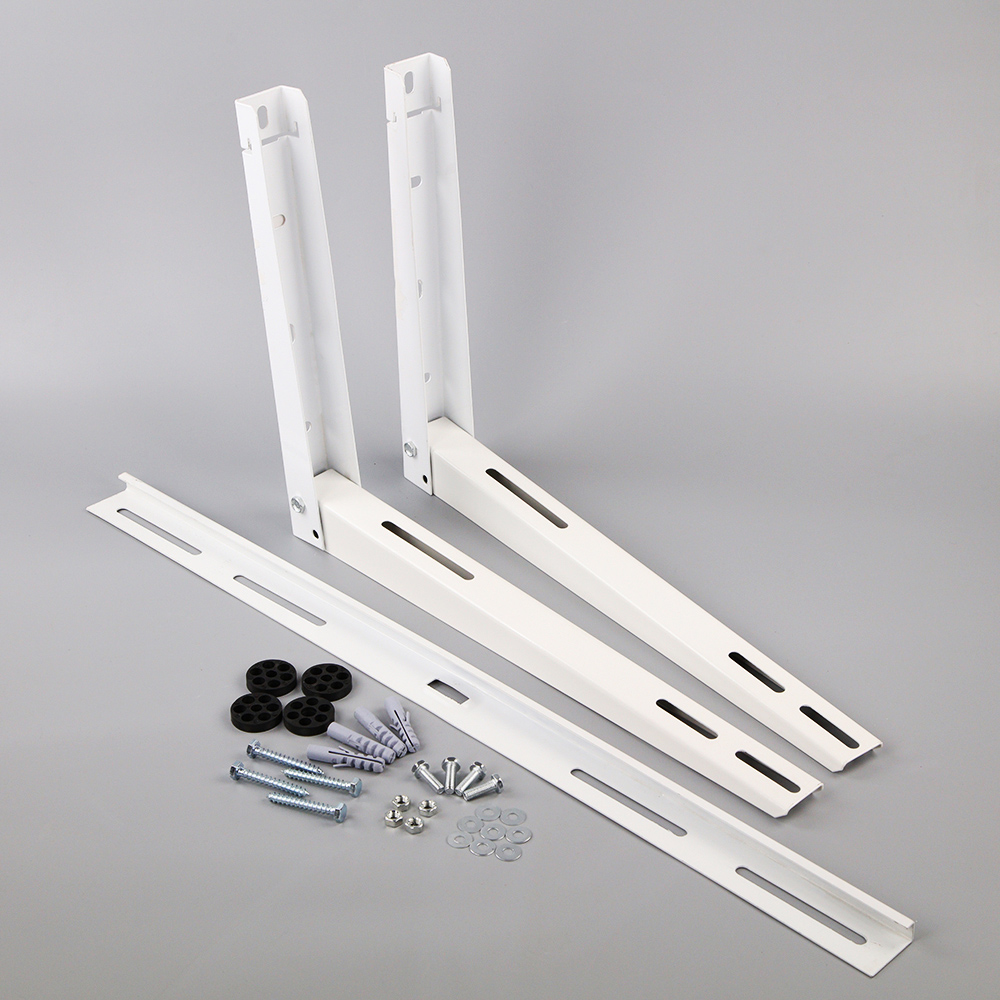

Split Bracket: The two vertical ones are called corners, and the two parallel ones are called pieces.RTK-101, RTK-123, RTK-106, RTK-107, etc. These are split bracket. Split bracket's piece is divided into left and right, and the corner is not divided.
Asian and Southeast Asian countries, generally use the split bracket, such as China, Thailand, the Philippines, Sri Lanka and so on.

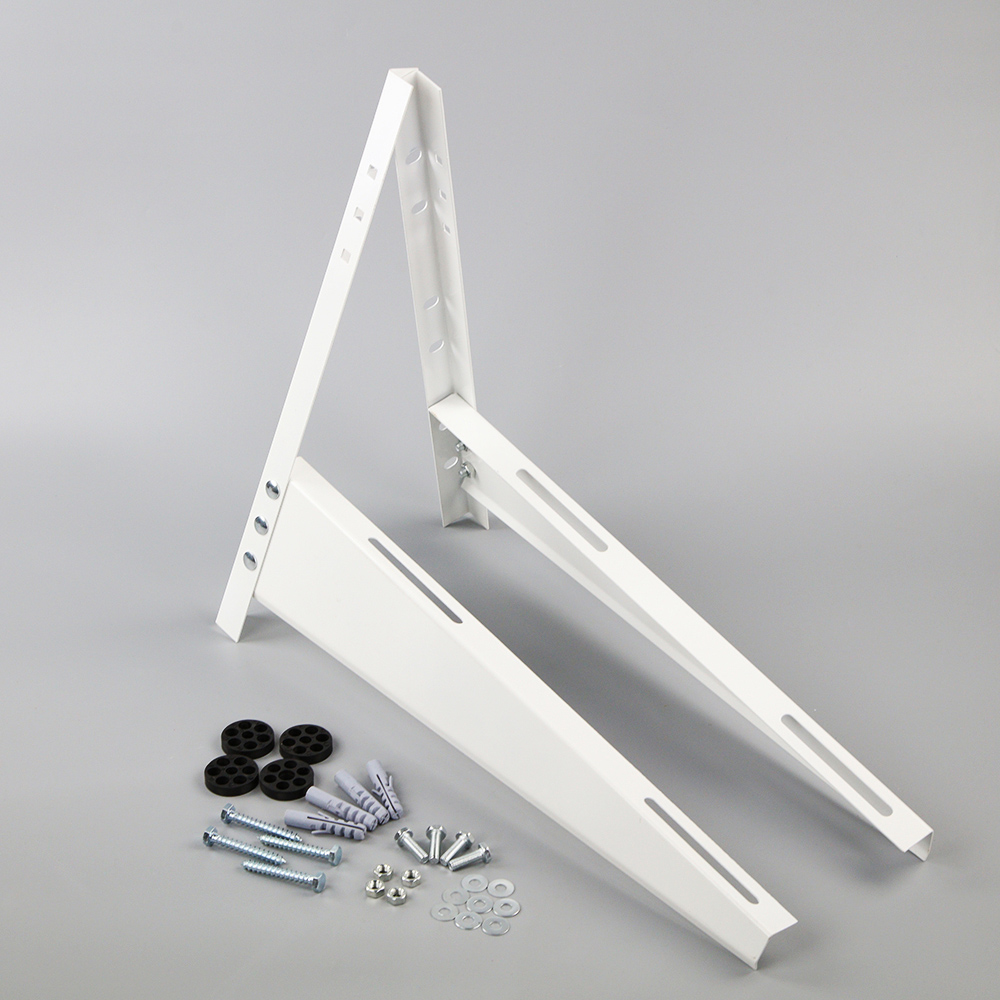

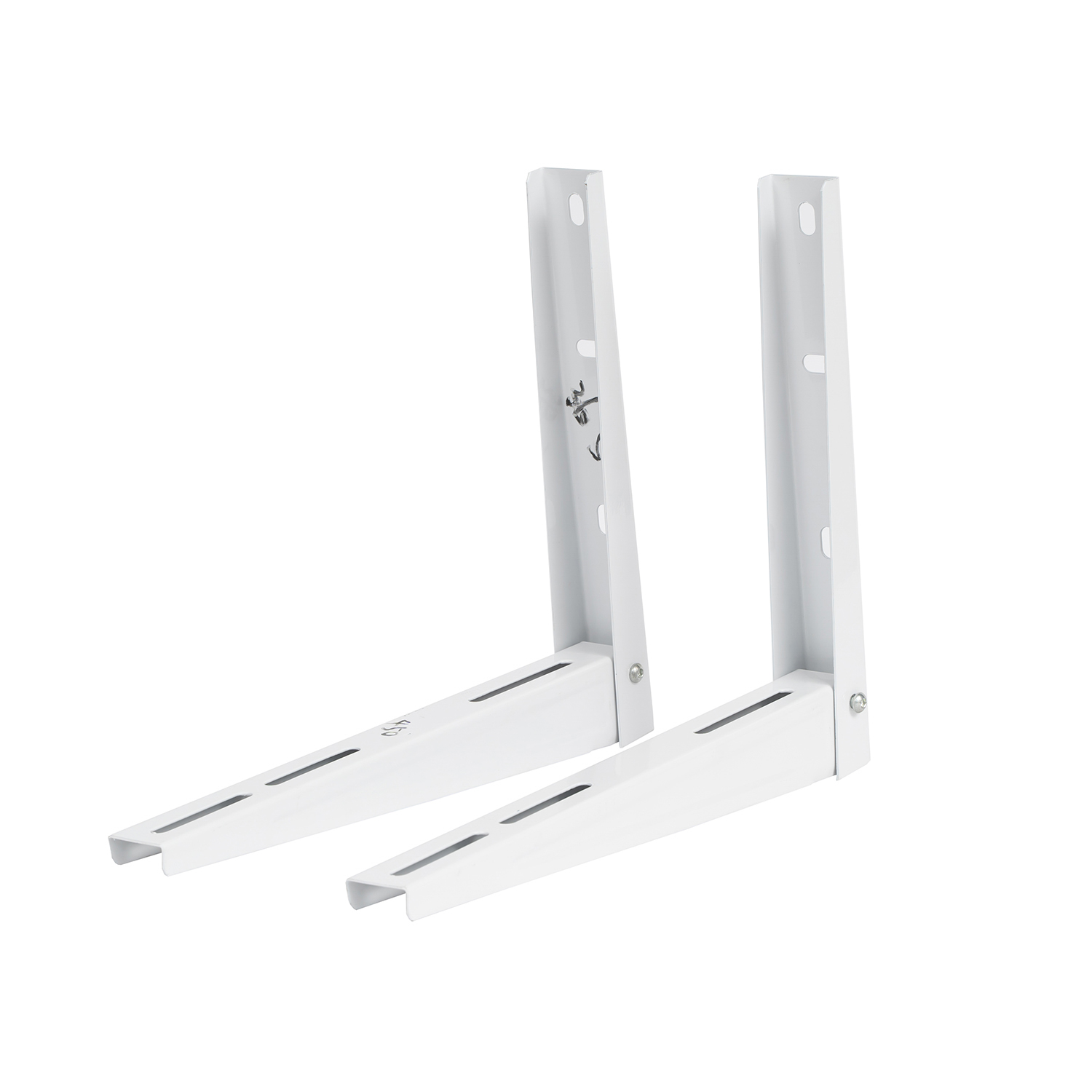

Folding bracket：The two vertical ones are called corners, and the two parallel ones are called pieces. These are folding brackets: RTK-103, RTK-108, RTK-133, RTK-134, RTK-113, RTK-122, RTK-121 etc.
Nordic countries and Central Europe, Western Europe, Southern Europe, the use of folding bracket is more, the better bracket to use the folding measurement bracket.
