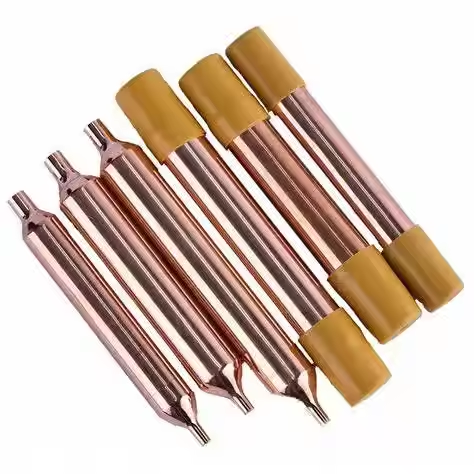

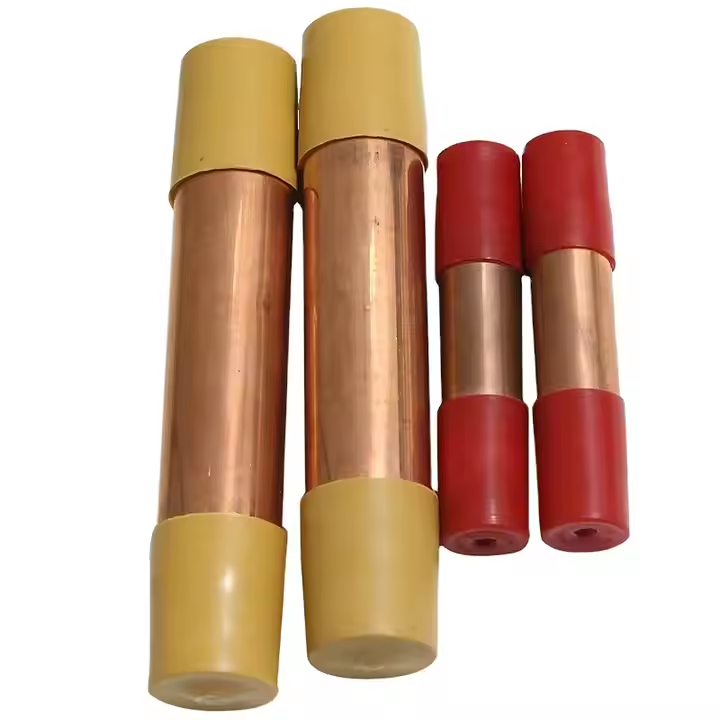

The Introduction of Copper Filter Drier
The copper filter drier is mainly installed in the front of the capillary tube refrigeration system or pipeline, or installed in an electronic expansion valve and out of the end for collecting lubricating oil in refrigeration systems and solid impurities, to prevent the system and an expansion valve and capillary blockage and ensure the smooth flow of the pipeline system.
● The copper filter driers are used in two-way circulation refrigeration system tubes.Absorb moisture and acidic harmful substances in the refrigeration system and filter impurities.
● The structure of the filter drier is made of copper tubes through circular arc spinning, the molecular sieve is built in to absorb water for drying, and the filter nets are installed at both ends.
● The dehydration and drying of the refrigerant and the filtration of impurities can avoid ice clogging and dirty clogging in the refrigerant cycle, so that the refrigeration machine can operate normally.
The Features of Copper Filter Drier
1.Is suitable for freezing, central air conditioners, automobiles, ships and other air-conditioning equipment;
2.Can be frozen and existing oil and mixtures of compatible;
3.Has the ability to absorb water, acids and other pollutants;
4.50um The filter can be kept at a minimum pressure of high efficiency filter;
5.With a brazing weld joint type ODF or flare SAE;
6.Stent structure can effectively cushion the effects of vibration on internal components.
Advantages
● Available copper tube diameters 16- 19- 24- 30 mm;
● Equipped with the Universal Molecular Sieve with the highest adsorption capacity available on the market;
● Supplied with 2 ,3 or 4 solder connections.
● Weights, lengths and diameters of connections according to customer requirements;
● Different Mesh available for mechanical filtration mesh;
● Very high resistance to corrosion, highest working and burst pressures.
