Introduction

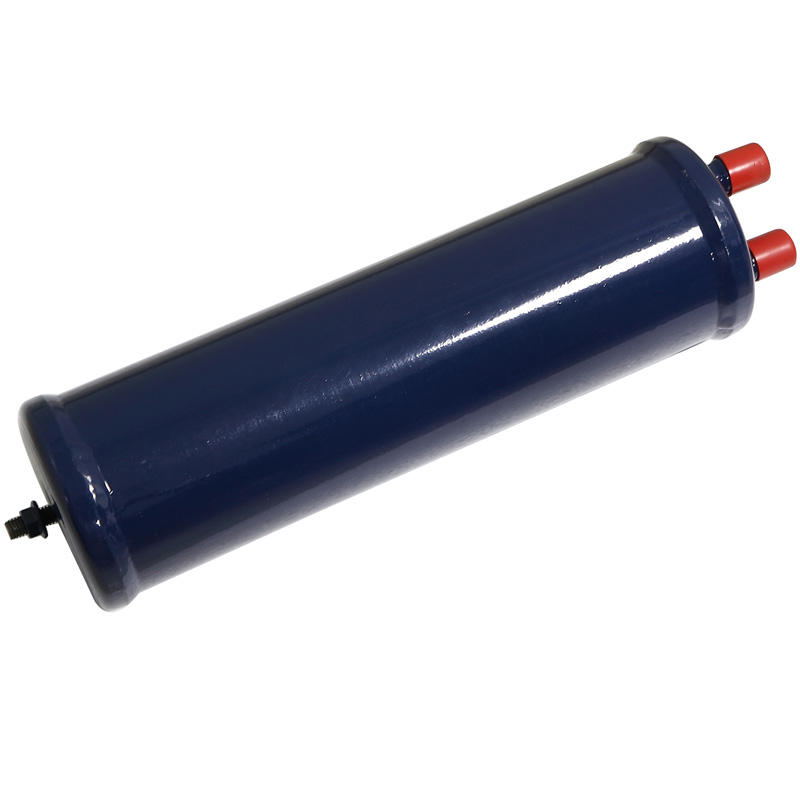

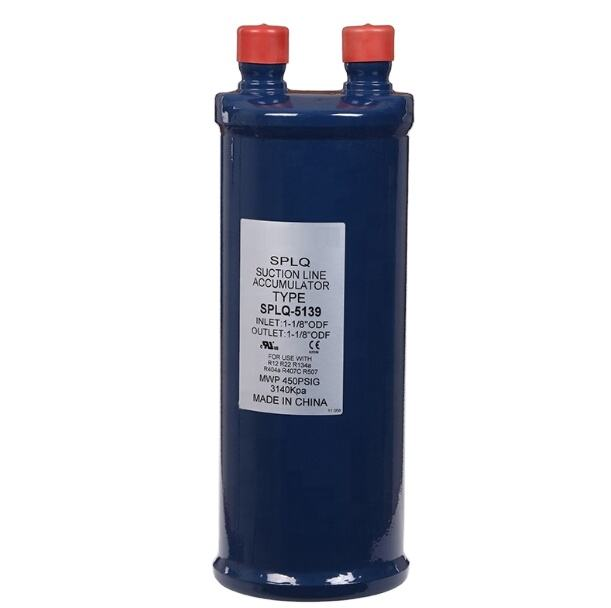

The liquid accumulator separator is a critical component in air conditioning systems, designed to store excess refrigerant and separate liquid from vapor before it reaches the compressor. Located between the evaporator and compressor, it prevents liquid slugging—a major cause of compressor damage.
The liquid accumulater separator is designed with internal bend pipes toprevent from internal splashing and help the aggregation of the oil at thebottom of the separator. The separator shall be installed as nearer to thecompressor as possible.
Features
（1）Adaptive to CFCHCFC/HFC
（2）A variety of shape design, the same volume of different aspect ratio cases, user-friendlyselection and installation
（3）In order to facilitate welding, ODF adoption of TP2 copper reserve
（4）Corrosion resistant epoxy powder paint finish, salt spray test above 500 hours
（5）For a variety ofrefrigerant R-12,R-134a,R-22,R-404A,R-407C,R-410A,R-500,R-502,R-507
（6）Maximum working pressure: 3.1Mpa/450Psig,with the UL and CE certification

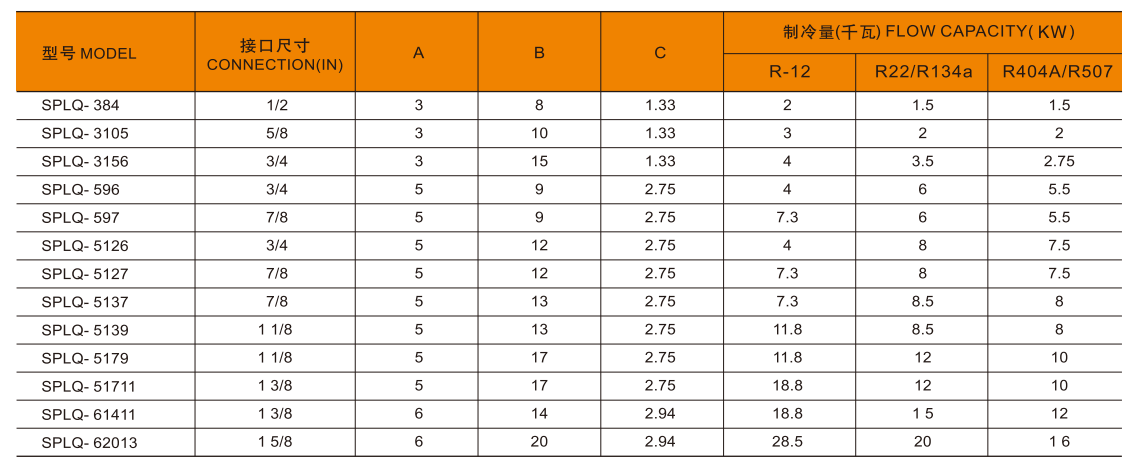

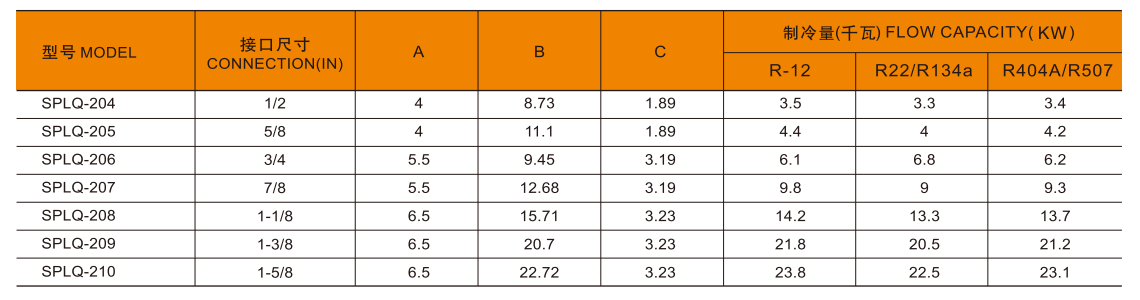

Models
