Views: 0 Author: Site Editor Publish Time: 2026-08-13 Origin: Site

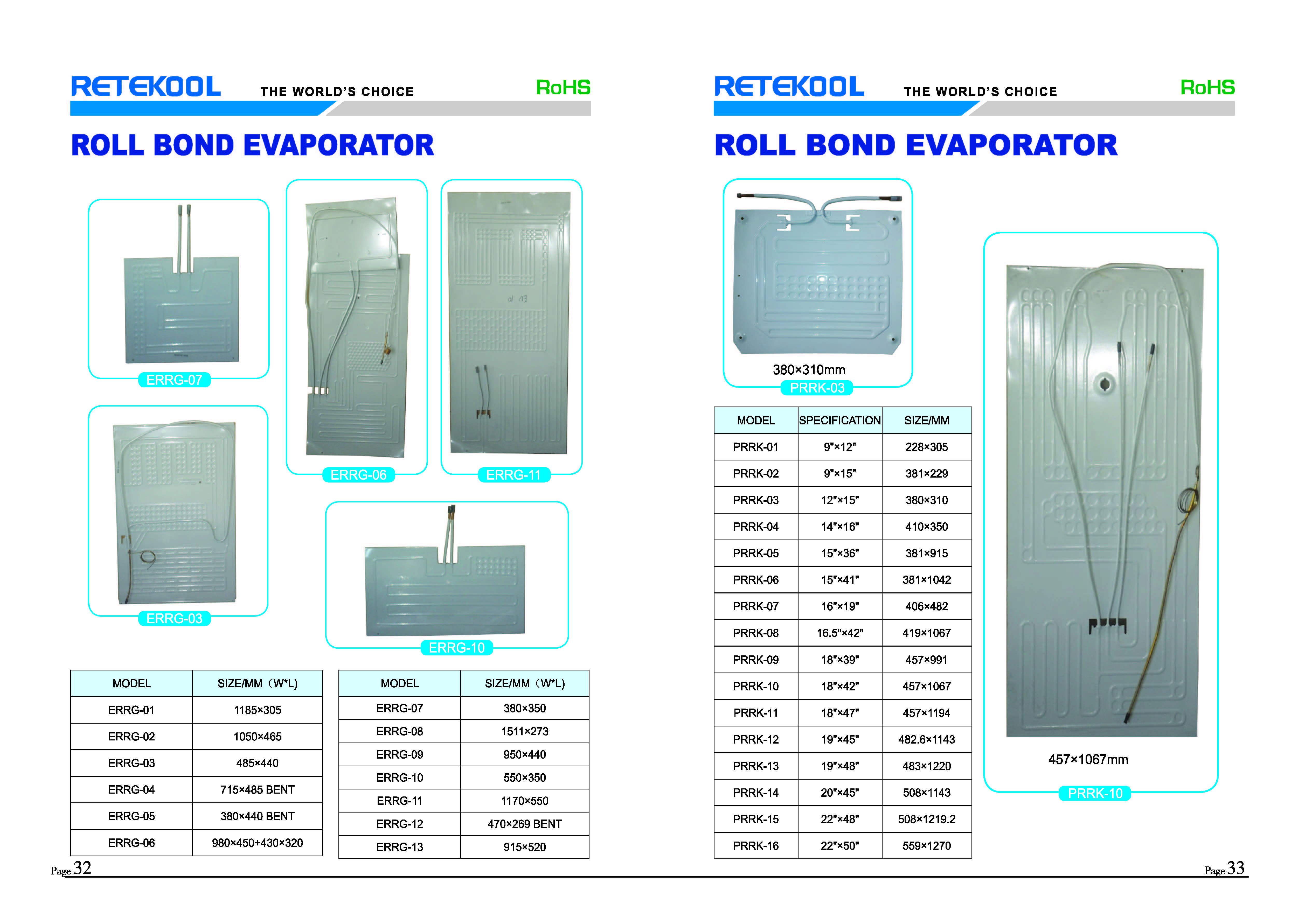

Joining dissimilar metals remains a persistent failure point in modern HVAC/R engineering. Integrating lightweight aluminum components into traditional copper systems requires absolute precision on the shop floor and in the field. Manufacturers and technicians face severe metallurgical hurdles daily. Differing melting points, thermal expansion mismatches, and aggressive galvanic corrosion complicate these critical connections. When connecting copper tubing to the aluminum stubs of an Aluminum Roll Bond Evaporator, failure at this joint guarantees immediate refrigerant leaks. Complete system failure and expensive warranty claims inevitably follow. This guide evaluates proven connection methodologies to solve this exact problem. We analyze specialized brazing, mechanical crimping, and advanced OEM welding techniques. You will understand their structural integrity, implementation risks, and long-term viability for both manufacturing and field repair environments.
Galvanic Corrosion is the Primary Threat: Any direct copper-to-aluminum joint exposed to moisture creates a galvanic cell; successful methods must isolate the metals or seal the joint entirely from electrolytes.
Brazing Requires Strict Thermal Control: Flame brazing is viable but demands specialized zinc-aluminum filler metals (e.g., Al-Cop) and highly controlled heat application due to aluminum’s low melting point.
Mechanical Fittings Dominate Field Repairs: Cold-connection crimp couplings and quick-join solutions eliminate heat-related risks and are the most reliable, repeatable solutions for field technicians.
OEMs Favor Friction/Ultrasonic Welding: For high-volume production of an aluminum plate cooling panel or roll bond evaporator, solid-state welding provides the most durable, leak-free joint without filler materials.
Fusing copper and aluminum defies basic metallurgical principles. These two metals possess vastly different physical and chemical properties. Forcing them together without specialized techniques guarantees structural failure. Understanding these underlying incompatibility factors is mandatory before selecting a connection method for any refrigeration circuit.
The primary barrier to thermal joining is the extreme difference in melting points. Copper melts at approximately 1,085°C (1,984°F). Aluminum melts at a much lower 660°C (1,220°F). This massive temperature gap creates a severe brazing hazard on the job site. Applying enough heat to bring the copper to brazing temperature will instantly liquefy the aluminum tube. Technicians must utilize highly specific filler metals that melt well below the aluminum threshold. Heat transfer rates also differ significantly. Aluminum dissipates heat rapidly, pulling thermal energy away from the joint zone. This forces operators to apply more heat, further increasing the risk of burning through the thin aluminum walls.
Physical Property Comparison Between Copper and Aluminum
Property | Copper | Aluminum | Impact on Joining |
|---|---|---|---|
Melting Point | 1,085°C | 660°C | High risk of melting aluminum before copper reaches brazing temp. |
Thermal Conductivity | 401 W/m·K | 237 W/m·K | Uneven heat distribution requires targeted flame control. |
Thermal Expansion | 16.5 µm/m·K | 23.1 µm/m·K | Causes shear stress and micro-cracking during temperature swings. |
Density | 8.96 g/cm³ | 2.70 g/cm³ | Weight differences affect vibration dampening at the joint. |
Connecting dissimilar metals creates an electrochemical reaction known as galvanic corrosion. Copper acts as the cathode. Aluminum acts as the anode. When moisture introduces an electrolyte, electrons flow from the aluminum to the copper. This process rapidly degrades the aluminum material. The tube walls thin out and eventually rupture under refrigerant pressure. This reaction accelerates in damp refrigeration environments. Condensation constantly bathes the evaporator lines in moisture. Protecting a corrosion protected flat evaporator requires absolute isolation of this joint. If the connection allows any moisture ingress, the galvanic cell activates immediately and destroys the aluminum stub within months.
Metals expand and contract as temperatures fluctuate. Aluminum expands at a significantly different rate than copper under thermal cycling. The coefficient of thermal expansion for aluminum is roughly 30% higher than that of copper. Refrigeration systems undergo constant temperature swings during defrost cycles and normal operation. This continuous movement places immense shear stress on rigid joints. Over time, this stress causes micro-cracking within the filler metal or the tube walls. A successful joint must either possess enough elasticity to absorb this movement or be mechanically robust enough to resist the shear forces entirely.
Aluminum reacts instantly with atmospheric oxygen. It forms a tough, microscopic layer of aluminum oxide on its surface. This oxide layer protects the metal from further corrosion, but it creates a nightmare for brazing. Aluminum oxide melts at over 2,000°C (3,632°F)—far above the melting point of the underlying aluminum. Standard filler metals simply bounce off this oxide shield. They cannot wet or adhere to the base metal. Technicians must chemically or mechanically remove this layer immediately prior to joining. Even a few minutes of air exposure allows the oxide layer to reform, ruining the connection attempt.
Industry professionals rely on four primary methods to bridge the copper-aluminum gap. Each approach offers distinct advantages depending on the application environment. We evaluate these methods based on structural integrity, implementation difficulty, and long-term reliability for an aluminum roll bond evaporator.
Traditional silver brazing fails on aluminum. Technicians must use specialized low-temperature zinc-aluminum filler rods. These alloys typically consist of 78-85% zinc and 15-22% aluminum. They melt between 380°C and 450°C. This provides a safe working window below the aluminum melting point. The process requires a highly active, non-corrosive flux designed specifically for dissimilar metals. This flux chemically breaks down the aluminum oxide layer as heat is applied.
Implementation requires precise mechanical preparation. The copper tube must be swaged to accept the aluminum tube. The flame must be directed primarily at the thicker copper side. The operator relies on conductive heat transfer to warm the aluminum. Directing the flame at the aluminum guarantees a blowout. This method offers high joint strength and low tooling costs. It demands exceptional operator skill. Strict temperature control is mandatory. The risk of component damage in the field remains very high.
Cold connections bypass thermal risks entirely. This method utilizes specialized brass or aluminum mechanical couplings. Technicians crimp these fittings over the joint using manual or hydraulic tools. Modern push-to-connect quick-join solutions also fall into this category. These systems often incorporate an anaerobic sealant that cures in the absence of oxygen, filling microscopic surface imperfections.
This approach represents the industry standard for field repairs. It requires specific tooling, such as LOKRING systems, or dedicated transition couplings designed to handle size mismatches. Stepping down from 3/8" copper to 5/16" aluminum tubing is a common scenario. Mechanical fittings eliminate fire hazards completely. They require no nitrogen purging. They bypass the melting point issue and neutralize galvanic corrosion by isolating the metals. The primary drawback is the high upfront cost of proprietary fittings and crimping tools.
Adhesive bonding utilizes industrial-grade, two-part epoxy resins. Chemists formulate these epoxies specifically for HVAC/R pressures and temperature extremes. The technician applies the resin to the overlapping tubes and allows it to cure. Many consider this the simplest, lowest-barrier connection method available.
Implementation demands absolute surface cleanliness. Technicians must aggressively abrade and chemically degrease both tubes. Any residual oil or oxide prevents adhesion. Curing time presents a significant operational delay. Technicians must wait for the epoxy to harden before pulling a vacuum or charging the system. Adhesives act as excellent dielectric insulators, completely preventing galvanic corrosion. They break electrical continuity. This poses grounding hazards if not properly managed. Epoxies are generally restricted to low-pressure applications and remain highly susceptible to failure under mechanical vibration.
Solid-state welding fuses metals without melting them. Ultrasonic welding utilizes high-frequency vibrations to create localized friction. Rotational friction welding spins one tube against the other under immense pressure. Both methods disrupt the oxide layers and fuse the metals at a molecular level.
This is strictly an OEM-level solution. Manufacturers utilize these machines during the high-volume production of an aluminum plate cooling panel. Solid-state welding produces the strongest, most reliable, and cleanest joint possible. It requires zero filler materials and creates zero galvanic potential at the weld interface. The sole barrier to entry is the massive capital expenditure required for the automated machinery. It is entirely impossible to replicate this method in the field.
Field technicians demand foolproof workflows. Repairing a failed copper-aluminum transition requires strict adherence to protocol. Skipping a single step guarantees a repeat failure. The following workflow outlines the proper execution for a cold-connection or low-temperature braze.
Preparation & Sizing: Begin by cutting out the failed joint completely. Do not attempt to repair a leaking dissimilar metal braze. Use a sharp tubing cutter to ensure clean, square ends. Identify the exact outer diameters of both the copper and aluminum tubing. Select the appropriate step-down mechanical coupling. If brazing, swage the copper tube to create a tight slip-fit over the aluminum. The gap clearance must be minimal to allow capillary action.
Surface Cleaning: Surface preparation dictates the success of the joint. Use a dedicated stainless steel wire brush on the aluminum tubing. Never use a brush that was previously used on copper or steel. Cross-contamination embeds foreign metal particles into the soft aluminum, accelerating galvanic corrosion. Brush the aluminum aggressively to remove the oxide layer. Wipe the surface with a residue-free chemical degreaser.
Execution: For mechanical fittings, apply the manufacturer-specified anaerobic sealant to the tube ends. Insert the tubes into the coupling. Ensure they seat fully against the internal stops. Use the designated hydraulic or manual tool to crimp the fitting. For brazing, apply the specialized flux immediately after cleaning. Ignite the torch and adjust to a neutral flame. Focus the heat strictly on the copper side. Allow the heat to conduct into the aluminum. Touch the zinc-aluminum filler rod to the joint. Once the base metals reach the correct temperature, the alloy will flow smoothly into the gap. Remove the heat instantly.
Sealing: Post-connection sealing is mandatory. You must isolate the new joint from environmental moisture. Clean off any residual flux with warm water and a brush. Flux residue is highly corrosive. Apply a heavy-wall, adhesive-lined heat shrink tube over the entire joint assembly. Alternatively, wrap the connection tightly with specialized anti-corrosion mastic tape. This barrier permanently halts the galvanic corrosion cycle.
Selecting the correct connection method requires analyzing the operational environment. Field repairs prioritize speed and safety. OEM manufacturing prioritizes scalability and per-unit cost. Understanding these variables ensures long-term system reliability.
Connection Method Comparison Matrix
Connection Method | Ideal Environment | Pressure Compatibility | Galvanic Risk | Operator Skill Required |
|---|---|---|---|---|
Specialized Flame Brazing | Field / Light Manufacturing | High (R-290, R-600a) | Moderate (Requires Sealing) | Very High |
Mechanical Crimp | Field Repair | High (R-290, R-600a) | Low (Dielectric Separation) | Low |
Adhesive Bonding | Temporary / Low Pressure | Low | None (Insulator) | Moderate |
Solid-State Welding | OEM Manufacturing | Very High | None (Molecular Fusion) | Automated (Machine) |
Field environments demand low tooling footprints and high safety margins. Technicians often work in confined spaces with flammable materials nearby. Mechanical crimps and quick-connects dominate here. They require no open flames and eliminate the risk of burning the aluminum stub. Manufacturing environments operate under different constraints. OEMs require low per-unit costs and zero-defect rates across thousands of units. Ultrasonic welding requires a massive initial investment but costs pennies per joint to execute. Automated brazing lines offer a middle ground for mid-volume production.
Modern refrigeration systems utilize high-pressure, environmentally friendly refrigerants. Hydrocarbons like R-600a and R-290 operate at specific pressure thresholds. The connection method must withstand these pressures without yielding. Solid-state welding and specialized brazing offer the highest pressure ratings. Mechanical crimp fittings are engineered to exceed burst pressures of the tubing itself. Adhesive bonding generally fails under high-pressure testing and should be avoided for modern hydrocarbon systems.
Commercial refrigeration units endure continuous thermal cycling. Defrost heaters activate and deactivate multiple times a day. Compressors generate constant mechanical vibration. The joint must survive these dynamic forces. Solid-state welds provide infinite fatigue life. Mechanical fittings absorb vibration well due to their mass and elastic memory. Brazed joints are rigid and can develop micro-cracks if the piping is not properly secured. Adhesives degrade rapidly under continuous vibration and thermal shock.
Even the best connection methods fail if implemented poorly. Technicians must actively mitigate the inherent risks associated with joining copper and aluminum. Strict adherence to risk management protocols prevents catastrophic system leaks.
The aluminum oxide layer is the enemy of adhesion. You must remove it completely. Stainless steel wire brushing physically breaks the layer. Chemical degreasing removes manufacturing oils and finger lipids. This preparation must occur just seconds before brazing or bonding. If you clean the tube and wait ten minutes, the oxide layer reforms. Prepare the surface, apply the flux or sealant immediately, and execute the joint.
Brazing generates intense localized heat. This heat travels rapidly down the aluminum stub. If the heat reaches the main body of the evaporator, it will melt the internal roll bond channels. You must manage the Heat Affected Zone. Apply a commercial heat-blocking paste around the base of the aluminum stub. Alternatively, wrap the stub tightly with a wet rag. This heat sink absorbs stray thermal energy, protecting the delicate internal structure of the evaporator panel.
Dielectric joints create electrical hazards. Adhesives and isolated mechanical fittings break the electrical continuity between the copper and aluminum lines. If a short circuit occurs, the evaporator chassis may become energized without a path to ground. You must address this hazard. Ensure proper system grounding is maintained elsewhere in the chassis. Install dedicated grounding straps if the piping was previously acting as the primary ground path.
Galvanic corrosion never sleeps. If moisture touches the copper-aluminum interface, the aluminum will dissolve. You must mandate the use of heavy-wall, adhesive-lined heat shrink tubing over the finished joint. As the tubing shrinks, the internal adhesive melts and flows into every microscopic crevice. This seals out atmospheric moisture completely. Specialized anti-corrosion mastics provide a viable alternative for oddly shaped joints. This final step permanently halts the galvanic corrosion cycle.
Fusing copper and aluminum requires precision, the right tooling, and a deep understanding of metallurgy. There is no single perfect method. The optimal choice is dictated entirely by the environment. Mechanical cold connections and quick-join solutions remain the undisputed choice for field repairs. Solid-state welding and highly controlled brazing dominate OEM applications. Selecting the wrong method guarantees rapid system failure.
If repairing a system in the field, invest in a mechanical crimping tool or dedicated transition couplings. This ensures safety, reliability, and repeatability. If manufacturing at scale, evaluate the long-term return on investment of ultrasonic welding versus the ongoing labor costs of skilled brazing operators. Stop relying on outdated, high-risk thermal methods in uncontrolled environments.
Audit your current failure rates at the copper-aluminum transition point to identify systemic installation errors.
Consult with metallurgical engineers to evaluate solid-state welding machinery for new OEM production lines.
Standardize a single, verifiable mechanical connection protocol for all field technicians.
Equip service vans with dedicated stainless steel brushes and anti-corrosion heat shrink tubing.
A: Standard silver solder requires temperatures exceeding 600°C to melt. Aluminum melts at 660°C. The temperature window is too narrow. You will likely melt the aluminum tube before the silver solder flows. Additionally, standard flux cannot break down the tough aluminum oxide layer.
A: High-quality mechanical fittings, when installed correctly with the proper anaerobic sealant, do not leak. They are engineered to handle continuous thermal cycling and vibration. They often exceed the burst pressure rating of the tubing itself.
A: You must eliminate the electrolyte. Galvanic corrosion requires moisture to transfer electrons. By sealing the joint completely with adhesive-lined heat shrink tubing or anti-corrosion mastic, you block moisture and permanently halt the electrochemical reaction.
A: No. While epoxies are easy to apply, they lack the tensile strength required for high-pressure refrigerants like R-410A or R-290. Adhesives also degrade rapidly under the continuous mechanical vibration typical in commercial refrigeration compressors.
A: Always focus the torch flame entirely on the thicker copper tube. Allow the thermal energy to conduct naturally into the aluminum. Never point the flame directly at the aluminum stub, or it will melt instantly and destroy the component.
A: Absolutely not. Using a brush on copper embeds microscopic copper particles into the bristles. If you use that same brush on aluminum, you embed copper into the aluminum surface. This creates thousands of microscopic galvanic corrosion cells.
