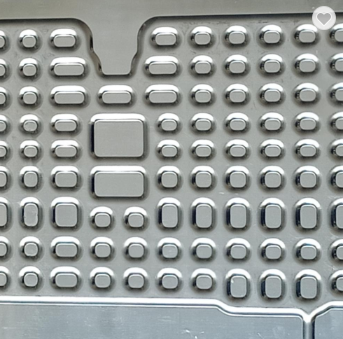

Aluminum Roll Bond Evaporator for TV Radiator 8K

Share to:

Quick Details
After-sales Service Provided:
Return and Replacement
1 Year
Refrigerator Parts, Refrigerator parts
Car, Hotel, Commercial, Household
Power Source:
Place of Origin:
Brand Name:
Model Number:
Aluminum Roll Bond Evaporator for TV Radiator 8K
Raw material:
Aluminium plate
Powder painting
Double/single/part single side
Coating Thickness:
Hardness of Coating:
More than 2H
Impact of coating:
50cm.kg/cm impact,no crack
refrigerator evaporator:
roll bond evaporator, refrigeration evaporator
aluminum plate evaporator:
evaporator for refrigerator, freezer

Product Description

Aluminum Roll Bond Evaporator for TV Radiator 8K


Main use: Used in Car battery cooling plate, 5G, freezer, refrigerator.,Air Conditioner,wine cabinet, showcase chiller,etc

Good quality, service and moderate price in the same field

Powerful production ability, quick delivery!


Raw materialAl-plate: finished products thickness: 1.1 2.0mm,raw material Al plate thickness: 1.4 2.5mmStructureDouble side rollbond evaporator,Single side rollbond evaporator,part single side rollbond evaporatorKey processPrepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, PackingTechnical Standards1) Size: width 590 (max), length 2050 (max)2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.Performance1) Surface treated with powder painting to prevent the corrosion2) Inner cleanness can meet the requirement of R134a & CFC cooling system.3) Can satisfy the cooling capability requirements.Capacity3.5 million sets per year (10000 sets per day)


R134a Cooling System Tube Inside standards

Residual moisture≤5 /100cm3Residual impurity≤1 /100cm3Residual mineral oil≤100 /100cm3Residual chlorine≤5vloppmResidual paraffin≤3 /Biggest single impurity≤0.5mm


Specification of coating

Coating thicknessthickness of coating40 90 μ mHardness of coating≥2HImpact of coating50cm?kg/cm impact, no crackAdhesion of coating≥two gradeFlexibility of coatingAround R=3D bend 180?, no crack or no fall offColor tolerance of powderpainting




Techinical :
Residual moisture: ≤5mg/100cm3
Residual impurity: ≤1mg/100cm3
Residual mineral oil: ≤100mg/100cm3
Residual chlorine: ≤5vloppm
Residual paraffin: ≤3mg/m2
Biggest single impurity: ≤0.5mm
Coating thickness: 40~90μm
Hardness of coating: ≥2H
Impact of coating: 50cm.kg/cm
Adhesion of coating: ≥2 grade
Flexibility of coating: around R=3D bend 180°
Color tolerance of powder painting: ΔE≤1.5

Customized is Available !
We can do by customer Drawing or Photos !
