The refrigerator condenser is mainly have three type: Louver condenser,wire tube condenser and internal-mounted condenser.

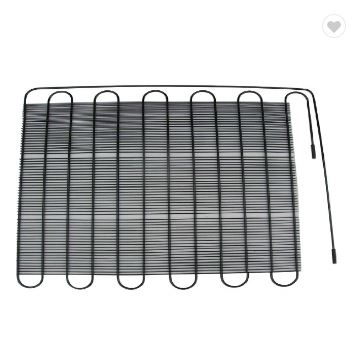

The wire tube condenser is made of bundy tubes and steel wire tubes, it is to increase the heat dissipation area. Generally, the diameter of a bundy tube is 5-6 mm, the steel wire tube diameter is about 1.5 mm, and the steel wires pitch is about 4-5 mm. the heat tansfer efficiency of wire tube condenser is better than louver condenser, and its strength and rigidity are also better.
We can supply many kinds of CO2 condenser ,CO2 wire tube Condenser ,Refrigeration Parts , Fridge wire condenser ,Fridge Wire Tube Condenser , Fridge Condenser parts , Refrigeration Parts ,Wire Tube Fridge Condenser,Fridge Condenser , Refrigeration Wire Tube Condenser , Refrigeration Condenser ,Wire Tube Condenser ,Refrigeration Wire Tube Condenser ,tube condenser, Fridge Condenser, Fridge Wire Tube Condenser ,Fridge
PRODUCT DETAILS
This is our Commonly condenser, it is universal type in Bangladesh,pakistan,DubaiSri Lanka etc market.
and the Main Meaterial as follows:
1:Diameter of Bundy tube: 4.76,6,6.35,8,9.52mm
2: Low carbo steel wire: 1.0-1.6
3: Bracket:steel plate(SPCC),thickness 0.6-1.5
4: Steel Plate:SPCC thickness 0.3-0.4

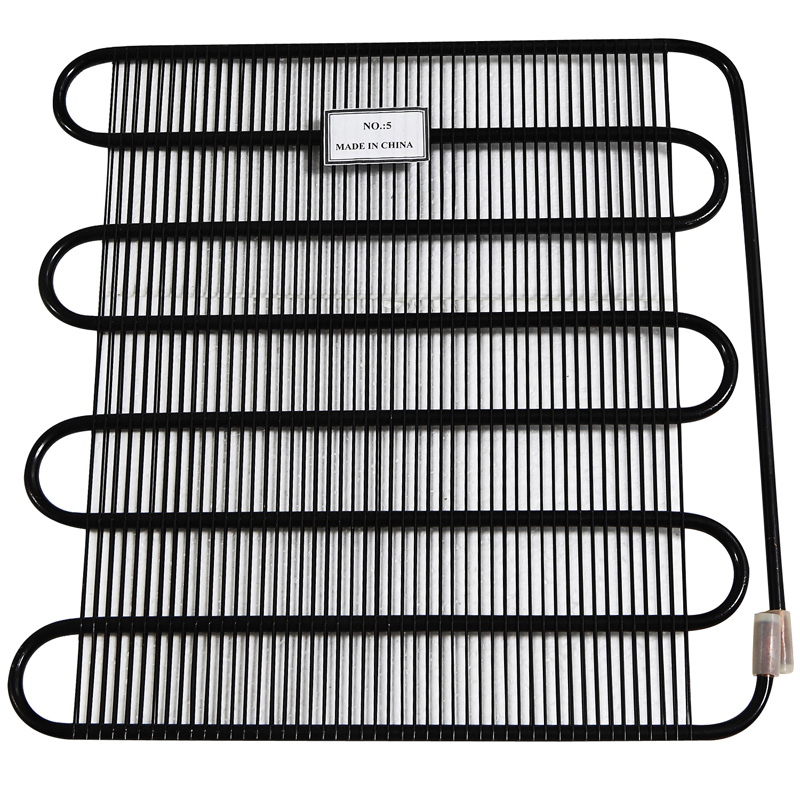

PRODUCT NAME: | wire tube condenser for home refrigerator |
APPLICATION: | REFRIGERATOR,FREEZER,SHOWCASE,WATER COOLER |
REFRIGENT: | R134a |
MAIN MATERIAL:
| 1,BUNDY TUBE:Ø4.76/6/6.35/8/9.52,WALL THICKNESS 0.7MM. 2,LOW CARBON STEEL WIRE Ø1.0-1.6MM. 3,BRACKET:STEEL PLATE(SPCC),THICKNESS 0.6-1.5MM. 4,STEEL PLATE:SPCC THICKNESS 0.3-0.4MM
|
STRUCTURE: | 1,FLAT TYPE OF WIRE ON TUBE CONDENSER USED AT THE BACK. 2,BENDED OR SPIRAL TYPE OF WIRE ON TUBE CONDENSER USED AT THE BOTTOM. 3,WRAPPED TYPE OF TUBE EMBED ON PLATE.
|
MAIN PRODUCTION PROCESS: | TUBE BENDING->WELDING->FIX THE BRACKET->WELD THE SUCTION TUBE->LEAKAGE TEST->COATING->FOLDING OR BENDING SHAPING->INSPECTION->PAKAGE.
|
PERFORMANCE:
| 1,SUEFACE WITH ELECTROPHORESIS COATING TO PREVENT THE CORROSION. 2,INNER CLEANESS CAN MEET THE REQUIREMENT OF CFC & R134A COOLING SYSTEM 3,CAB SATIFY DIFFERENT COOLING CAPABILITY REQUIREMENTS.
|
