Designing thermal management systems presents a massive cooling efficiency challenge for engineers. Teams across OEM refrigeration, solar thermal, and automotive sectors constantly balance heat rejection rates against extreme space constraints. You need components capable of rapid thermal transfer. They must do this without causing excessive system pressure drops. Enter the roll bond evaporator. This component stands firmly as the industry standard for high-surface-area, low-pressure drop heat transfer. Its unique flat-plate construction maximizes the available contact area. This design allows circulating fluids to absorb heat rapidly across a uniform surface. Our goal here is straightforward. We will clarify the core operational mechanics driving these thermal systems. We will evaluate specific performance limits you must respect during integration. Finally, we will provide a clear procurement framework. This guide helps you specify the exact evaporator for your precise thermal management requirements.

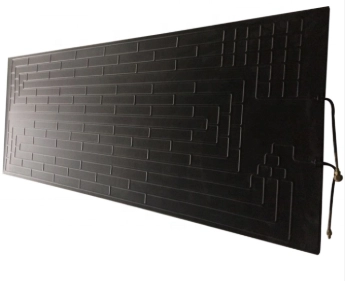

A roll bond evaporator uses two pressure-welded aluminum sheets with inflated internal channels to maximize heat transfer efficiency.
The "silk-screen and inflate" manufacturing process allows for highly customizable fluid channel designs without the cost of complex mechanical tooling.
An aluminum roll bond evaporator offers superior thermal conductivity-to-weight ratios but requires strict galvanic corrosion management during system integration.
Supplier evaluation
A Roll Bond Evaporator operates on fundamental thermodynamic principles. It leverages two-phase heat transfer to extract thermal energy from surrounding environments. Liquid refrigerant enters the internal channels at a low pressure state. As warm air flows over the exterior aluminum plates, thermal energy transfers inward. The aluminum conducts this heat rapidly. The liquid refrigerant absorbs the thermal energy instantly. It undergoes a crucial phase change from liquid to vapor. This vaporization process absorbs significant latent heat. The resulting vapor then exits the panel. It travels onward to the compressor to restart the cooling cycle.
The flat-plate geometry is strictly intentional. Traditional fin-and-tube coils cluster the cooling surface area densely. This dense clustering can restrict natural airflow. Flat plates spread the heat exchange area over a much wider footprint. This broad distribution minimizes temperature gradients across the metal surface. It ensures highly uniform cooling inside a closed cabinet or compartment. Uniform cooling prevents localized freezing spots. It maintains consistent temperatures for sensitive materials stored nearby.
Engineers must balance internal fluid velocity against pressure drop. If the internal channels are too narrow, fluid velocity increases sharply. High velocity does improve heat transfer coefficients. However, it also creates severe pressure drops. The compressor must work significantly harder to push the fluid forward. If channels are too wide, fluid velocity drops too low. The refrigerant might not fully vaporize. Un-vaporized liquid can reach the compressor. This liquid slugging will damage mechanical valves. Complex serpentine channel pathways solve this issue. They manage flow rates perfectly.
The operational cycle relies on four distinct phases:
Refrigerant Injection: Low-pressure liquid enters the expanded inlet port from the capillary tube.
Thermal Absorption: Conductive aluminum plates pull sensible heat from the surrounding ambient air.
Phase Change: The liquid refrigerant boils actively, transforming entirely into a gaseous vapor.
Superheating: The vapor absorbs additional heat before exiting the panel, ensuring no liquid remains.
Fluid dynamics inside the channels dictate overall efficiency. You want turbulent flow rather than laminar flow. Turbulent flow mixes the refrigerant aggressively. It pushes un-vaporized liquid against the warm aluminum walls. Properly designed channels induce this turbulence. They maximize the heat transfer coefficient continuously.
Producing an aluminum roll bond evaporator relies on a highly specialized metallurgical process. It entirely avoids traditional mechanical stamping. Stamping requires heavy, inflexible steel dies. Instead, this manufacturing method uses pressure welding combined with hydraulic inflation. It offers unmatched design flexibility. You can change channel routing simply by altering a print screen layout.
The core sequence involves several distinct and highly controlled phases. Proper execution ensures a leak-free final product.
Surface Preparation: Two raw aluminum sheets undergo rigorous chemical cleaning. Heavy wire brushing removes native oxide layers. This exposes pure aluminum. It ensures a pristine surface for metallurgical bonding.
Pattern Printing: Technicians apply a specialized stop-weld ink. They use an automated silk-screen process to print the exact channel pattern onto one sheet. This specific ink prevents the aluminum from bonding in designated areas.
Stacking and Rolling: Operators place the second aluminum sheet on top. The stacked sheets pass through a massive rolling mill. Extreme physical pressure reduces their combined thickness dramatically. This immense pressure forces the clean aluminum surfaces to cold-weld together. The metal fuses everywhere except where the stop-weld ink lies.
Annealing: The newly bonded panel enters a high-temperature continuous furnace. Annealing softens the heavily work-hardened aluminum. It restores ductility needed for the next step. The heat also cures and volatilizes the stop-weld material.
Inflation: A technician inserts a hollow inflation needle into the unbonded inlet tract. High-pressure air or hydraulic fluid injects into the flat panel. The unbonded patterned areas expand outward forcefully. They form permanent internal fluid channels.
This process creates a completely seamless, leak-proof panel. The fluid channels become integral to the metal itself. This structural integration eliminates the thermal resistance usually found in mechanically joined tubes. Heat moves seamlessly from the flat surface directly into the fluid.
Aluminum dominates this specific application for excellent reasons. It offers tremendous thermal conductivity. It keeps component weight remarkably low. It shapes easily during the rolling process. However, you must respect its physical and chemical boundaries. Exceeding these engineering limits leads to catastrophic system failure in the field.
Galvanic corrosion represents the primary threat. Aluminum acts as an active anode when connected directly to dissimilar metals. Copper or steel components act as cathodes in this reaction. If an electrolyte like environmental moisture is present, electrons flow rapidly away from the aluminum. The aluminum degrades heavily. Microscopic pin-hole leaks develop along the metal grain boundaries. System refrigerant escapes into the atmosphere.
You must actively manage this interaction during system integration. Use dedicated dielectric unions when connecting copper tubing to aluminum ports. Apply robust protective epoxy coatings to the entire evaporator surface. These heavy coatings isolate the bare metal from environmental moisture. They prevent widespread oxidation in high-humidity operating environments. A flawless coating extends the component lifespan significantly.
Operating pressure also dictates panel longevity. Inflated channels have strict burst pressure thresholds. Refrigerants like R600a operate at relatively lower pressures. They pair perfectly with standard aluminum panels. High-pressure synthetic refrigerants require much thicker aluminum base sheets. Thicker sheets reduce thermal transfer efficiency substantially. You must carefully balance raw material thickness against your maximum system pressure requirements.
Below is a detailed breakdown of common material constraints you must monitor.
Performance Metric | Standard Limitation | Engineering Mitigation Strategy |
|---|---|---|
Galvanic Corrosion | Rapid degradation near copper joints | Use zinc-based brazing or dielectric heat-shrink sleeves |
Burst Pressure | Typically maxes out around 8-10 MPa | Increase base sheet thickness; specify R600a refrigerant |
Surface Oxidation | White rust formation in humid environments | Apply cathodic epoxy powder coatings post-inflation |
Thermal Expansion | Warping during rapid temperature cycling | Implement sliding mounting brackets to allow flex |
Internal channel geometry heavily influences overall fluid dynamics. You can specify highly customized inflation profiles based on your spatial constraints. The standard rolling and inflation process readily supports three distinct physical configurations. Each serves a unique engineering purpose.
Double-sided inflation remains the industry standard approach. The internal fluid pressure expands both exterior sheets equally during manufacturing. The resulting channels protrude symmetrically from both the front and back surfaces. This configuration maximizes total exposed surface area. It provides excellent convective heat transfer in open-air compartments. Air flows freely over both sides of the panel.
Single-sided flat-back inflation serves as a specialized alternative. One aluminum sheet remains perfectly flat after inflation. The opposite sheet expands outward to form the channels. This requires a much thicker base plate on the flat side. The rolling process uses uneven pressure distribution to achieve this. The flat side allows for flush mounting directly against solid cabinet walls. It ensures maximum conductive contact with inner cabinet liners.
Capillary tube integration requires meticulous channel routing near the inlet. The internal inlet port must precisely match the exact outer diameter of the expansion device. Furthermore, the channel width must gradually increase toward the outlet. This widening prevents dangerous vapor locking. It maintains steady fluid velocity as the expanding refrigerant changes state. Proper routing prevents localized pressure spikes.
Selecting the right thermal component requires rigorous supplier evaluation. You cannot rely solely on basic dimensional drawings. The manufacturing process demands strict quality control at the factory level. Minor variations in rolling mill pressure cause major field failures later. Poorly bonded panels will inevitably separate under internal fluid pressure.
Begin by evaluating the supplier's metallurgical expertise thoroughly. Ask detailed questions about their precise rolling reduction ratios. The initial raw aluminum sheets must compress by at least 60 percent. This massive thickness reduction ensures a proper, irreversible cold weld. Insufficient reduction leaves microscopic voids in the metal grain structure. These hidden voids lead directly to internal fluid leaks.
Assess their channel inflation tolerance controls. The internal fluid pathways must inflate completely uniformly. Uneven channel inflation causes highly unpredictable pressure drops. The flowing fluid will short-circuit entirely. It will follow the easiest path of least resistance. Some panel sections will starve for refrigerant, leaving warm spots. Demand pressure drop test data across multiple production batches to verify consistency.
Examine their surface corrosion protection protocols rigorously. Bare aluminum is rarely acceptable in demanding environments. The factory must apply protective coatings flawlessly. Review their standard salt spray test results. A high-quality epoxy powder coating should easily withstand hundreds of hours of continuous salt fog exposure. It should show zero signs of blistering or peeling.
Use the following specification chart to structure your procurement requirements systematically.
Specification Category | Critical Parameters to Define | Common Industry Standards |
|---|---|---|
Material Grade | Alloy composition, temper state, base thickness | 1000-series aluminum (e.g., 1060 or 1070) |
Geometry | Overall length, width, single vs. double inflated | Customized per specific cabinet interior dimensions |
Internal Volume | Channel cross-section, total refrigerant capacity | Mathematically matched to compressor displacement |
Surface Treatment | Coating type, thickness, color, curing method | Epoxy powder coat, typically 15-30 microns thick |
Quality Testing | Helium leak rate, burst pressure, internal moisture | Helium mass spectrometry vacuum testing |
Engineers often make critical errors when specifying flat-plate components. One frequent mistake involves ignoring internal moisture limits. The manufacturing process uses compressed air or hydraulic fluid for inflation. If the factory fails to dry the interior perfectly, moisture remains. Moisture reacts catastrophically with modern refrigerants. It forms highly corrosive acids inside the sealed system. Always mandate strict internal moisture limits below 20 milligrams per panel.
Another common oversight involves improper capillary tube sizing. The flat plate cools efficiently only when supplied with the exact correct refrigerant volume. Oversized capillary tubes flood the channels. Undersized tubes starve them. You must calculate the precise flow restriction required. Do not assume previous tube dimensions will work for a newly designed channel layout.
Failing to account for thermal cycling fatigue causes long-term issues. Compressors cycle on and off continuously. The aluminum panel expands and contracts with every single temperature shift. Rigid mounting brackets force the aluminum to bear this physical stress. Eventually, fatigue cracks develop near the mounting holes. You must incorporate flexible mounting solutions to absorb this movement.
Mounting these panels requires highly precise handling on the assembly line. The inflated aluminum sheets are remarkably thin. They dent quite easily upon sudden impact. Dented channels restrict internal fluid flow immediately. Train assembly technicians to handle the panels strictly by the outer unbonded edges.
Pay close attention to physical orientation. The channels rely partially on gravity to assist liquid-vapor separation. Mounting a panel completely upside down disrupts this delicate balance. The liquid refrigerant might pool heavily in the upper headers. This pooling reduces overall cooling efficiency drastically. Always orient the panel according to the manufacturer's specific flow directional arrows.
Vibration isolation proves absolutely critical. Operating compressors transmit significant kinetic energy through the connecting copper tubing. Rigidly mounting the panel to hard cabinet walls transfers this aggressive vibration. The thin aluminum will eventually suffer severe fatigue cracking near the brazed inlet joints. Use soft rubber dampeners at all mechanical mounting points. Leave a small physical loop in the connecting copper tubing. This loop acts as a mechanical spring. It absorbs physical shocks effectively.
Ensure strict internal cleanliness during final brazing. Any oxidation forming inside the connecting copper tubes will enter the panel directly. These microscopic metal flakes will clog the narrowest channel sections instantly. Always purge the copper lines gently with dry nitrogen while brazing the final connections. This prevents internal scale formation entirely.
A well-specified evaporator forms the absolute backbone of highly efficient thermal management. You must respect the delicate thermodynamic balance between internal fluid velocity and resulting pressure drop. The unique silk-screen and inflate manufacturing process provides immense design flexibility. However, it also demands rigorous factory quality control regarding cold-welding reduction and channel inflation uniformity.
Moving forward, implement these specific action steps. First, map out your precise spatial cabinet constraints to determine if a flat-back or double-inflated panel suits your needs best. Second, analyze your system's peak operating pressures to select the correct raw aluminum sheet thickness. Finally, establish strict dielectric protocols on the assembly line to prevent galvanic corrosion at the copper joints. Following these guidelines ensures robust, leak-free cooling performance for years.
A: No. Repairing a punctured flat-plate aluminum panel is generally impossible. The material is far too thin for reliable field welding. The internal operating pressures will quickly break any temporary epoxies. You must replace the entire component if a puncture or leak occurs.
A: White powder indicates rapid aluminum oxidation, commonly called white rust. This happens when bare aluminum faces high ambient moisture levels. It means the protective epoxy coating is either missing, scratched, or heavily compromised. You must improve cabinet dehumidification immediately to slow this destructive process.
A: Isobutane (R600a) is highly recommended. It operates at relatively low pressures. This perfectly matches the specific burst pressure limitations of the inflated aluminum channels. High-pressure synthetic refrigerants like R410A are entirely unsuitable for standard flat-plate aluminum constructions.
A: Direct brazing requires specialized zinc-aluminum flux and highly controlled low-temperature torches. Many engineers prefer specifying factory-installed copper-aluminum transition joints (Lokring connectors or ultrasonic welds). This eliminates the need for difficult field brazing between dissimilar metals entirely.
