Selecting the right evaporator architecture dictates thermodynamic efficiency. It also controls manufacturing scalability and long-term reliability. Engineers face a core tension during early design phases. You must balance the superior heat transfer of integrated channels against the flexibility of traditional tube designs. Procurement teams similarly struggle to align tooling investments to expected production runs. A misstep here impacts overall performance and delays market entry.
We provide a strict, evidence-based technical comparison below. You will learn how to choose the correct evaporator based on thermal needs. We explore manufacturing volume constraints and structural spatial limits. This guide helps specifiers navigate complex engineering tradeoffs. You can optimize both cooling performance and daily production processes. Expect practical insights to guide your next refrigeration project.
Thermal Efficiency: Roll bond designs eliminate the thermal boundary layer found in tube-on-sheet designs, offering more efficient heat transfer per square inch.
Cost Dynamics: Tube evaporators require lower upfront tooling costs (ideal for low-volume or prototyping), while roll bond evaporators offer superior unit economics for high-volume production.
Space Utilization: Roll bond panels can double as structural components (like a cold plate evaporator or freezer shelf), saving interior packaging space.
Durability: Both offer high reliability, but failure modes differ—tube systems risk contact-loss over time, while roll bond requires strict internal moisture control to prevent channel corrosion.

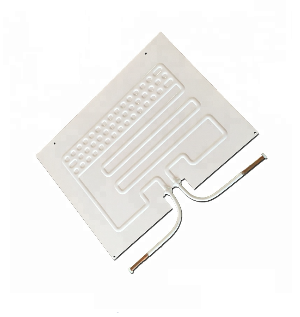

Manufacturers build these units using a highly specialized forging process. They start by silk-screening a specific channel pattern onto a flat aluminum sheet. Operators then clad this patterned layer against a second bare sheet. Industrial machines hot-roll the metals under extreme pressure. This pressure forces the two sheets to bond completely.
The silk-screened pattern resists bonding. Technicians inject high-pressure fluid into these unbonded areas. This fluid inflates the internal pathways to create the refrigerant channels. The final product is a monolithic metal structure. The refrigerant channel and the exterior fin share the exact same continuous material. When specifying a Roll Bond Evaporator, engineers rely on this homogenous build. It offers unmatched structural integrity.
Tube systems follow a more traditional assembly method. Technicians construct them by attaching separate copper or aluminum tubes onto a flat heat-transfer plate. Some designs omit the plate entirely. They leave the tubes bare or attach external fins to them.
Assemblers use mechanical pressing, gluing, or brazing to secure the tubes. The system relies entirely on this physical joint. The joint must effectively transfer heat from the flat plate directly to the tube wall. Any weakness in this connection diminishes cooling capacity. You will often see these designs in applications requiring heavy-walled tubing.
Thermal boundary layers dictate cooling speed. Tube evaporators inherently introduce an interstitial thermal boundary. This boundary exists exactly at the joint connecting the tube to the flat plate. Mechanical presses cannot achieve atomic-level bonding. Microscopic air gaps always remain between the two surfaces.
Air acts as a powerful thermal insulator. These tiny gaps reduce overall BTU extraction capabilities. You lose valuable thermodynamic efficiency across the entire surface area. Engineers must oversize the compressor to compensate for this lost heat transfer.
Roll bond panels feature zero contact resistance. The homogenous aluminum structure lacks any internal air gaps. Heat moves directly from the external surface into the evaporating refrigerant. The metal conducts thermal energy immediately. You extract maximum BTUs per square inch.
Refrigeration relies on extensive surface contact. Roll bond technology allows engineers to design complex channel routes. You can utilize tight serpentine patterns. These patterns maximize refrigerant contact time without adding physical bulk.
Tube designs face strict geometric limits. Tube bending radii restrict how tightly you can pack the channels. If you bend a copper tube too sharply, it kinks or cracks. You cannot achieve the same dense channel routing found in inflated aluminum sheets.
Performance Metric | Roll Bond Architecture | Tube-on-Sheet Architecture |
|---|---|---|
Contact Resistance | Zero (Homogenous material) | Moderate to High (Air gaps present) |
Channel Density | Extremely High | Limited by bending radius |
Heat Transfer Rate | Rapid and uniform | Slower, concentrated near joints |
Overall Efficiency | Optimal for surface cooling | Requires larger footprint for same BTUs |
Interior cabin space remains a critical metric. Manufacturers frequently form roll bond panels into custom geometric shapes. They easily stamp the metal into U-shapes or O-shapes. These rigid panels serve directly as structural shelving.
They also act as the primary inner housing within commercial units. The flat profile allows it to function as a highly efficient cold plate evaporator in compact settings. You will find them in medical cooling systems and retail display cases. They save valuable packaging space.
Consider the following structural applications:
Vaccine Refrigerators: Flat panels maintain strict temperature uniformity across the entire shelf.
Ice Cream Cabinets: U-shaped panels form the inner tub to cool the product evenly from all sides.
Compact Minibars: O-shaped configurations create a tiny internal freezing compartment without bulky plastics.
Beverage Dispensers: Direct contact plates rapidly chill liquids passing over the flat surface.
Tube evaporators generally require significantly more depth. The external tube diameter rests entirely on top of the plate. This creates a raised, bumpy profile. Designers must leave adequate clearance around these protruding tubes.
The raised profile consumes usable interior volume. Roll bond maintains a nearly flat footprint. The internal inflation only raises the surface by a few millimeters. This maximizes the usable storage capacity of the refrigeration unit. You gain more internal space for the end user.
Financial strategy dictates manufacturing choices. Roll bond panels require significant upfront investment. Factories must create custom silk-screen masks. They also machine heavy steel inflation dies. These initial expenses are substantial.
You cannot justify this capital expenditure for small runs. Producing fewer than 1,000 units makes the tooling costs prohibitive. Tube systems operate differently. They utilize standardized copper or aluminum tubing. Factories use basic bending jigs and standard stamping tools.
Tube architectures are highly flexible. You face negligible custom tooling costs. Engineers can change the tube routing on the assembly line in minutes.
Volume changes the financial equation completely. Scale shifts the advantage toward integrated panels. At high volumes exceeding 10,000 units, the manufacturing process becomes highly automated. Automation drives material efficiency.
The per-unit production cost plummets. It quickly drops below the cost of labor-intensive tube assemblies. Tube-on-sheet designs require workers to manually place, press, and braze components. Manual labor increases operational expenses.
Speed to market matters during product development. Tube designs win strictly on lead time. You can build a proof-of-concept prototype in days. Technicians simply cut and bend off-the-shelf tubing. Inflated panels require weeks to finalize the masks and cut the tooling dies. You should always use tube designs for early thermal testing.
Use standard tubes to validate your initial compressor selection.
Manually bend prototypes to test air flow dynamics.
Switch to integrated flat panels only after finalizing the thermal load.
Commit to custom tooling dies right before mass production begins.
Every engineering choice carries specific risks. Mixing copper tubes with aluminum plates invites trouble. You must strictly manage galvanic corrosion. This risk multiplies in high-humidity environments. Condensation acts as an electrolyte between the dissimilar metals.
Over time, the aluminum degrades. Roll bond architectures use an all-aluminum construction. This homogenous approach completely avoids galvanic issues. However, the inflation process requires extreme precision. Factories must control the wall thickness perfectly.
Uneven rolling leads to thin spots in the aluminum. These thin areas can develop pinhole leaks under high refrigerant pressure. You must mandate strict pressure testing protocols before assembly.
Refrigerators go through thousands of defrost cycles. They freeze and thaw daily. Materials expand and contract constantly. Mechanical bonds in tube-on-sheet designs suffer under this stress.
The continuous movement causes metal fatigue. Eventually, the mechanical tension relaxes. The tube separates slightly from the flat plate. This separation destroys the thermal efficiency. Roll bond units are immune to physical separation. The single piece of metal expands and contracts as one unit. The channels can never detach from the surface.
Design Element | Best Practice | Common Mistake |
|---|---|---|
Moisture Control | Use nitrogen sweeps to keep channels dry. | Leaving systems open to ambient humidity. |
Pressure Testing | Test at 1.5x maximum operating pressure. | Relying solely on visual leak inspections. |
Defrost Cycles | Specify homogenous panels for heavy cycling. | Using glued tubes in heavy-frost environments. |
Material Choice | Match tube and plate materials exactly. | Mixing copper and bare aluminum without coatings. |
You need to produce standard consumer or commercial refrigerators at scale. The high upfront tooling costs easily amortize across thousands of units. It makes perfect financial sense for mass production lines.
You should also specify them when interior cabin space is at an absolute premium. The flat profile maximizes storage volume. They work perfectly when your application demands a uniform temperature across a flat surface. Direct-contact cooling situations heavily favor this technology.
You are designing custom or low-volume equipment. Highly specialized HVAC/R equipment rarely justifies expensive custom dies. Budget constraints often prohibit heavy upfront tooling investments. You need the flexibility to change designs quickly.
You must also use standard tubing when the system operates at extreme pressure thresholds. Thin aluminum walls cannot contain highly pressurized refrigerants safely. Heavy-walled copper tubing handles extreme pressures effortlessly. You ensure safety and regulatory compliance.
The choice between roll bond and tube designs is rarely about absolute cooling power. It is an engineering tradeoff between thermal boundary resistance, spatial efficiency, and manufacturing scale. Both technologies offer distinct operational advantages depending on your specific volume requirements.
You must evaluate your anticipated production run volume immediately. Assess your available interior dimensional tolerances carefully. Review the operating pressures of your selected refrigerant. Gather these exact parameters before requesting custom tooling quotes from manufacturers. Making a data-driven choice early will streamline your assembly line and guarantee long-term thermal reliability.
A: Generally, no. Standard aluminum roll bond is designed for lower pressure refrigerants (R134a, R600a, R290). High-pressure applications typically require specialized heavy-wall tube designs.
A: Repair is extremely difficult and highly discouraged in commercial settings. Due to thin aluminum walls, patching typically causes secondary damage. Full replacement is the standard procedure.
A: It depends on the medium. Cold plates (often utilizing roll bond) are superior for direct-contact cooling (cooling solids or liquids). Fin-and-tube designs are vastly superior for forced-air cooling (cooling ambient space).
