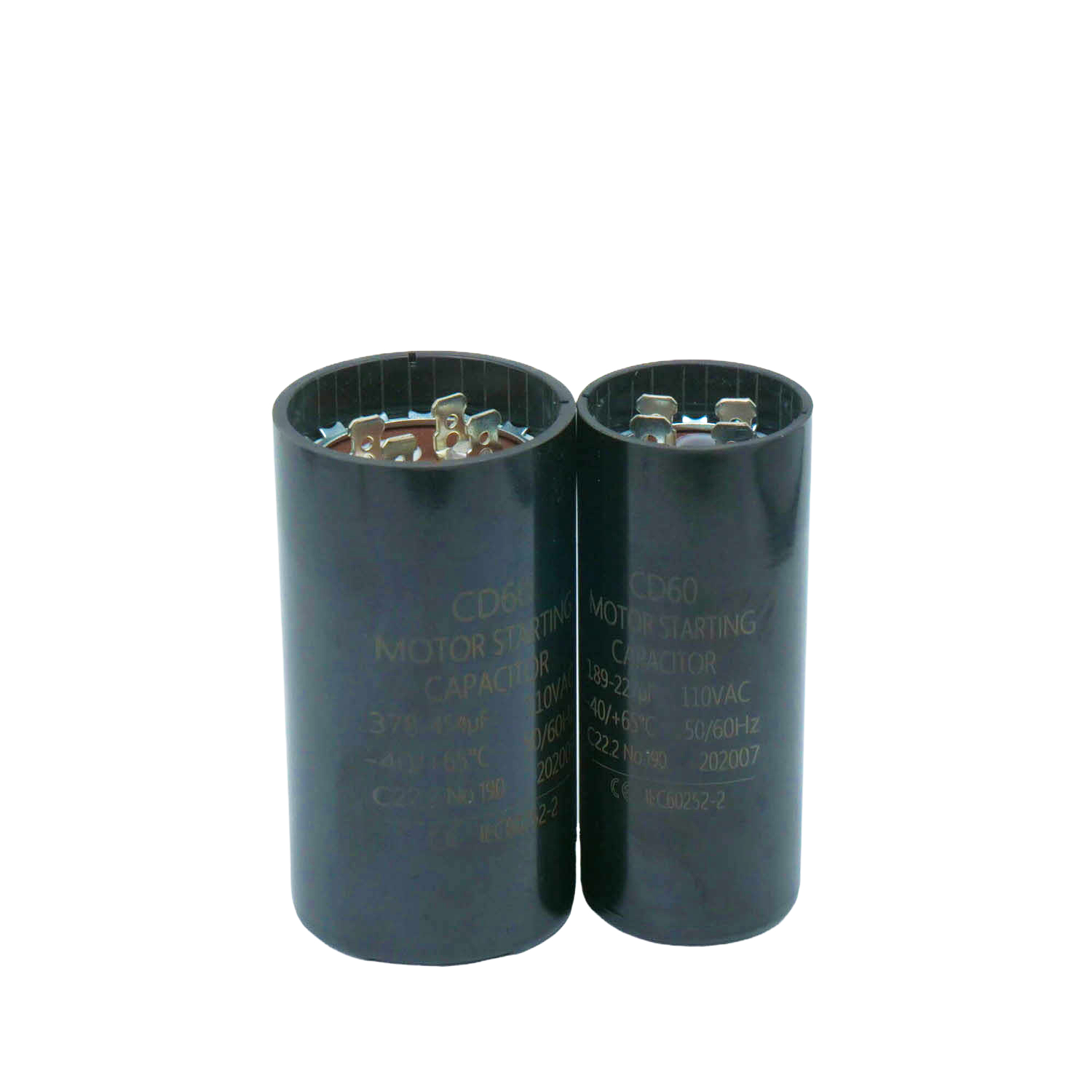

165vac Universal AC Start Capacitor

What is air conditioner capacitor?

Capacitor is one of the most basic components in air conditioning unit and refrigeration equipment. Capacitor could store the electrical energy which can be pushed onto the DC power supply to provide a constant voltage. One of the most basic components inside your air conditioning unit is the capacitor, which is a device that can store electrical energy. This energy can then be pushed onto the DC power supply to help provide a constant voltage. A capacitor consists of two conductive plates separated by an insulating material.

The feature and application of air conditioner capacitor.

1. Motor Capacitor Air Conditioner Compressor Start Capacitor CBB65 450VAC 60uF is type for Metallized Polypropylene Film Capacitor, Metal Case P2 Motor run capacitor.

2. CBB65 Capacitors is equipped inside with reliable explosion-proof equipment and is highly safe

3. Very good pressure resistance function.

4. Air Conditioner capacitor widely used for air-conditioners, refrigerators, generators, compressor and HVAC system.

Mounting parts (optional)

Threaded stud at bottom of can (M8, max.torque = 5 Nm)

The details of air conditioner capacitor.

Place of Origin: Zhejiang, China

Brand Name: RETEKOOL

Model Number: CBB65

Type: Metallized Polypropylene Film Capacitor

Application: Running of AC single-phase motors at 50/60Hz for AC motors

Materials of Case: Aluminium (Polishing or not)

Shape: Cylinder and Oval

Terminal:

2+2 pins 6.35mm x 0.8 250#

2+3 pins 6.35mm x 0.8 250#

2+4 pins 6.35mm x 0.8 250#

4+4 pins 6.35mm x 0.8 250#

2+3+4 pins 6.35mm x 0.8 250#

2+2+2 pins 6.35mm x 0.8 250#

4+4+4 pins 6.35mm x 0.8 250#

Certifications: CQC in China, CE & RoHS in Europe,

Loading Port: Ningbo, Shanghai, Yiwu, Guangzhou

Package: 50-100 Pieces per carton, based on capacitors size

Delivery Time: 15 - 30 days (based on order quantity)

Payment Term: T/T, L/C at sight, Cash, Western Union

Shipment Term: FOB, CNF, CIF

MOQ 200 Pieces per type

Supply Ability: 1,200,000 Piece/Pieces per Month

Samples: For free (The freight shoule be paid by custom)

H.S. Code: 8532 2590

specifications: rated voltage range:110-330vac

The technical data and specifications of air conditioner capacitor.

Reference standards: IEC 60252-1

Safety class according: IEC 60252-1 P2

Life expectancy to IEC 60252-1: 3,000(C) ~ 10,000h(B)

Rated capacitance CR: 2µF ~ 150µF (MFD)

Tolerance: ± 5%

Rated voltage VR: 110VAC ~ 630VAC

Rated frequency FR: 50/60Hz

Maximum permissible votage Vmax: 1.1 x VR (VR=Rated voltage)

Maximum permissible current Imax: 1.3 x IR (IR=Rated current)

AC test voltage terminal to terminal VTT:

2 x VR, 2s (routine test)

2 x VR, 60s (type test)

Insulation voltage terminal to case:

1.75 x VR, 2s (type test)

1.75 x VR, 60s (routine test)

Dissipation factor: tan δ ≤0.002 (50Hz)

Climate types: 25/085/21 to IEC 60068-1
