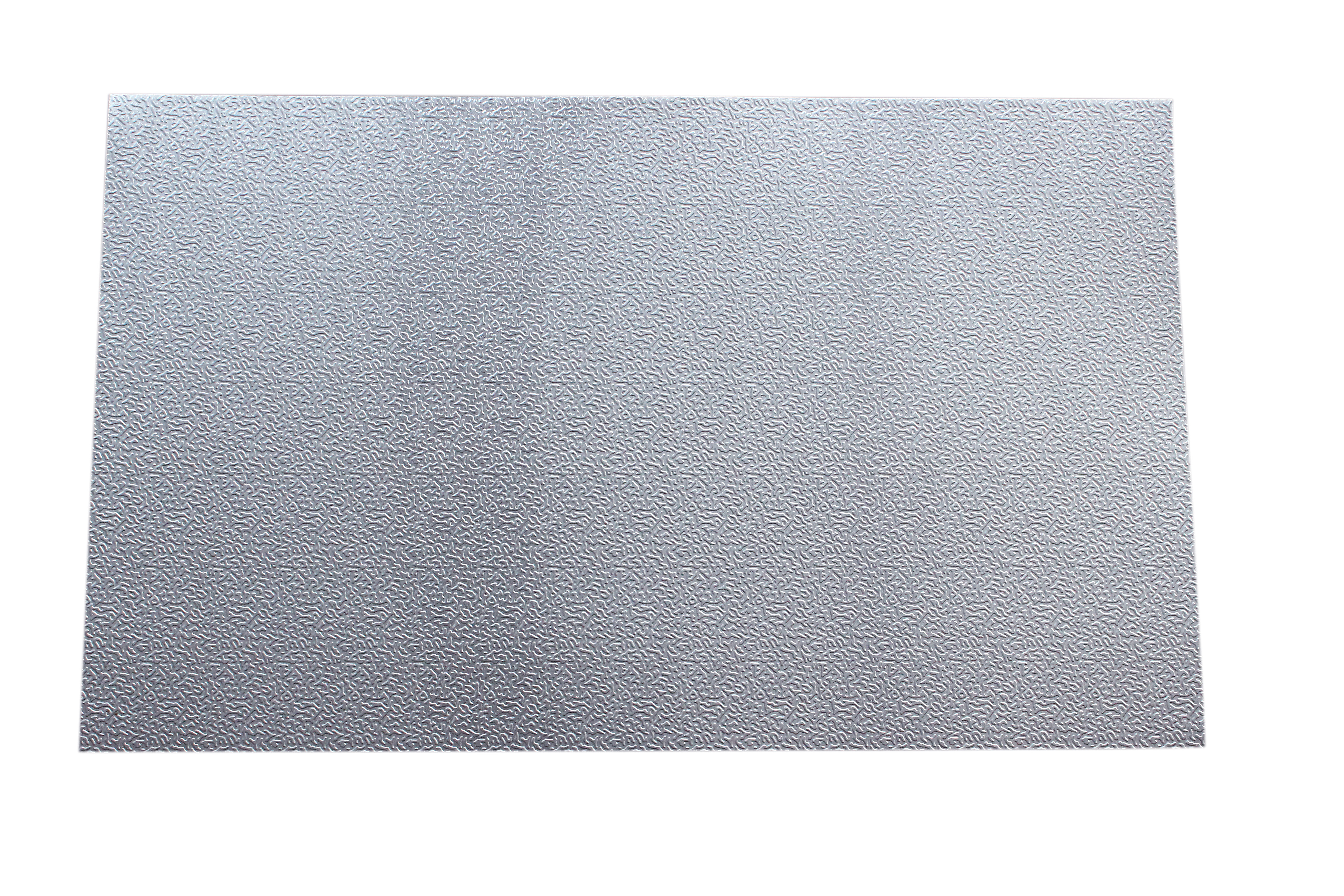

Embossed aluminum checkered plate sheet for refrigerator and freezer

Embossed aluminum checkered plate sheet for refrigerator and freezer

Embossed sheet is also known as checker or diamond plate.
The added texture reduces the risk of slipping, making diamond plate a solution for stairs, catwalks, walkways, and ramps in industrial settings.
Additional applications include truck beds and trailer floors. Its non-skid properties mean that diamond plate is frequently used on the interior of ambulances and on the footplates of firetrucks.
Utility : decoration industry,anti-slip floor in construction,vehicle, ship,etc.
· Dimensions can be produced according to your specifications
· Very good elongation, anti-corrosion

Application:
Refrigerator, Freezer, Fridge...
Range of thickness:
0.3— 0.6 (mm)
Maximum width:
1100 (mm)
Hardness:
hard full/half hard
Mechanical strength:
143 or higher (mpa)
Yield strength:
129 or higher (mpa)
Diffuse reflection rate:
12% or less

Model:
RTK-101
Brand:
RETEKOOL

Quantity:



Inquire Add to Basket

Product Description

Products	Surface Treatment	Thickness Range	Width Range	Length Range
1xxx,3xxx,8xxx	Mill Finish	0.1-10mm	900-1700mm	________
1xxx,3xxx,8xxx	Mill Finish	0.125-4.0mm	900-1700mm	330-6000mm
PE Pre Painted Aluminum Coil	PE 8-25μ	0.15-1.5mm	Max.1600mm	Coil&Sheet
PVDF Pre Painted Aluminum Panel&Coil	PVDF 8-25μ	0.2-1.5mm	Max.1600mm	Coil&Sheet
Back side painting	8-10μ	0.15-1.5mm	Max.1600mm	Coil&Sheet
Marble&Wooden Color painting	Max.35μ	0.2-1.5mm	Max.1600mm	Coil&Sheet
Mirror aluminum painting	8-16μ	0.18-1.5mm	Max.1400mm	Coil&Sheet
Embossed Stucco sheet&coil	Stucco	0.2-1.2mm	350-1300mm	Coil&Sheet
Slitting Coil	_______	0.2-3.0mm	21-1595mm	Coil&Sheet

Range of thickness: 0.3— 0.6 (mm)
Maximum width: 1100 (mm)
Technical parameters
Pure aluminum alloy:
Hardness: hard full/half hard
Mechanical strength: 143 or higher (mpa)
Yield strength: 129 or higher (mpa)
Elongation rate: 2% or higher
The total reflectance: 85% aluminum (grey)
Diffuse reflection rate: 12% or less
The tolerance range
Thickness tolerance: 0.2- 0.5 + / - 0.03 (mm)
The typical tolerance range: 0.2 - 0.5 + / - 0.015 0.6 0.8 + / - 0.025 (mm)
The width of the tolerance: + 5.00 / - 5.00 (mm)
packaging
Protective film, protective film on the surface of the aluminum quality assurance period for five months, aluminum is kept dry and ventilated, avoid heat and direct sunlight. If the aluminium material stored in high temperature or direct sunlight can lead to protective film, or unable to tear in addition to wait for a phenomenon.
Coil: upright wooden pallet packaging.
Plate: packed in wooden cases or wooden pallet packaging.

Embossed aluminum plate refrigerator aluminum plate aluminum plate sheet aluminum plate for freezer
