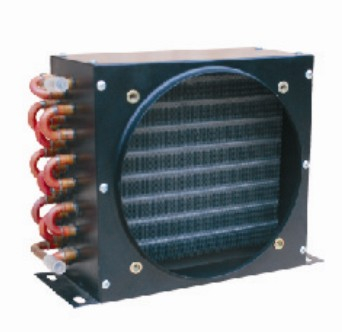

Factory Directly Supply Fin Type Air Cooled Condenser

Factory Directly Supply Fin Type Air Cooled Condenser

condenser for refrigeration parts,copper tube and aluminum fin,cetification:Rhos,ISO90001
size costomized as per drawing.

Productivity:
100000000PCS/Year

Model:
CDC-28
Brand:
RETEKOOL

Quantity:



Inquire Add to Basket

condenser for refrigeration parts,copper tube and aluminum fin,cetification:Rhos,ISO90001

size costomized as per drawing.

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.

	Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm

Usage : for Refrigerate Cooling Method : Indirect Cooling Power: 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP, 3HP, 4HP. Material: Copper tube, aluminum fin, galvanization steel cover. Can work with R134A, R22, R404A, R407c refrigerant and so on. Condneser coil leaking checking 100% Package: In seaworthy cartons, then packing the cartons on pallets. Mould specification as bellow: COPPER TUBE DIAMETER: 7.0mm, 7.94mm, 9.52mm, 12.7mm, 15.88mm... HOLES PITCH AND ROWS PITCH: 50 X 50mm, 38 X 33mm, 25 X 21.65mm, 31.75 X 27.5mm, 21 X 12.7mm... FIN SPACE: Can be1.3mm to 10mm. We can supply according to customer's samples or drawings.

copper tube condenser Aluminium Fin Copper Tube Condenser Air Cooler Condener Refrigerator Copper Tube Condenser Fin Type Copper Tube Condenser
