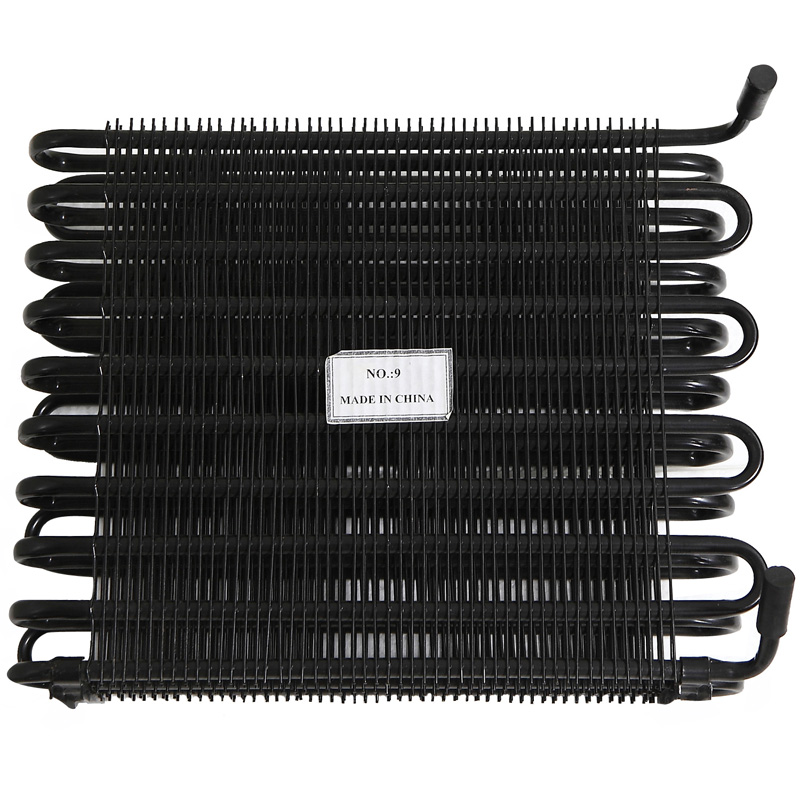

Hot Sale Wire On Tube Condenser for refrigerator

 Refrigerator Parts Bundy Tube Wire Condenser

Main Material:

1.Bundy Tube:φ4.76,φ6,φ6.35,φ8,φ9.52,Wall thickness 0.7mm

2.Low Carbon Steel Wire:φ1.0-1.6

3.Bracket:Steel Plate(SPCC),Thickness:0.6-1.5mm

Structure:

A.Flat type of wire on tube condenser used at the back
B.Bended or spiral type of wire on tube condenser used at the bottom
C.Wrapped type of tube condenser embed on plate

Main Production Process:Tube Bending,Welding,Fix the Bracket,Weld the suction tube,Leakage Test,Coating,Folding or bending shaping,Inspection,Package

Technical Ability:Wire Pitch≥5mm

We can produce according to the drawing or sample supplied by clients,also can help the clents design and produce different condensers

Specification of R134A Refrigerant

Residual moisture ≤18mg/m2

Residual impurity ≤28mg/m2

Residual mineral oil ≤7mg/m2

Residual chlorine ≤0.3mg/m2

Residual paraffin ≤0.2 mg/m2

Specification Of Coating

Coating thickness:(1) thickness of zinc and varnish coating≥12 um

                                 (2) thickness of cathodic exectrophoresis coating ≥12 um

                                 (3)thickness of flat plate or tube power painting:30-100um

                                 (4)thickness of wire tube evaporator power painting:60-200um

Hardness of coating ≥2H

Impact of coating:50cm.kg/cm.no carck

Adhesion of coating: one grade

Flexibility of coating:Around R=3D Benden 180,no crack or no fall off

Color Tolerance of power coating:E ≤1.5

Corrosion resistant: 1. Cathodic electrophoresis coating≥96H

                                      2.. Cathodic electrophoresis coating ADD Power painting ≥240H
