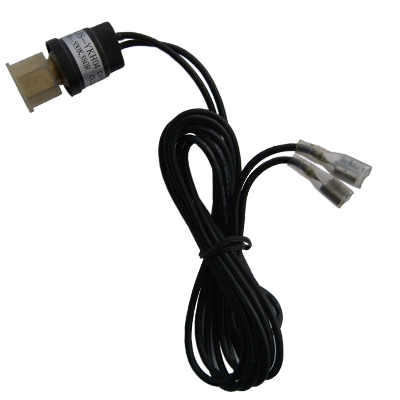

Low Pressure Switch

TECHNICAL SPECIFICATIONS

ACTUATION/OPEN PRESSURE---(OFF)

RELEASE/CLOSE PRESSURE---(ON)

PROOF PRESSURE---250 PSI

BURST PRESSURE---5000PSI

TEMPERATURE RANGE---AMBIT:-30 TO +80

                                         FLUID:-50 TO +120

ELECTRICAL RATING---50/60HZ, 36VDC,3A

VOLTAGE    AMPERAGE

24                125VA    PILOT DUTY

120              375VA    PILOT DUTY

240              375VA    PILOT DUTY

DIELECTRONIC STRENGTH---750VRMS OPEN SWITCH

                                               1550VRMS TERMINALS TO FITTING

LIFE AT RATED LOAD---100,000 CYCLES

SWITCH CONFIGURATION---SPST,AT ATMOSPHERIC PRESSURE:OPEN
