COPPER CONDENSER
RETEKOOL
CUSTOMIZED
| Availability: | |
|---|---|
| Quantity: | |

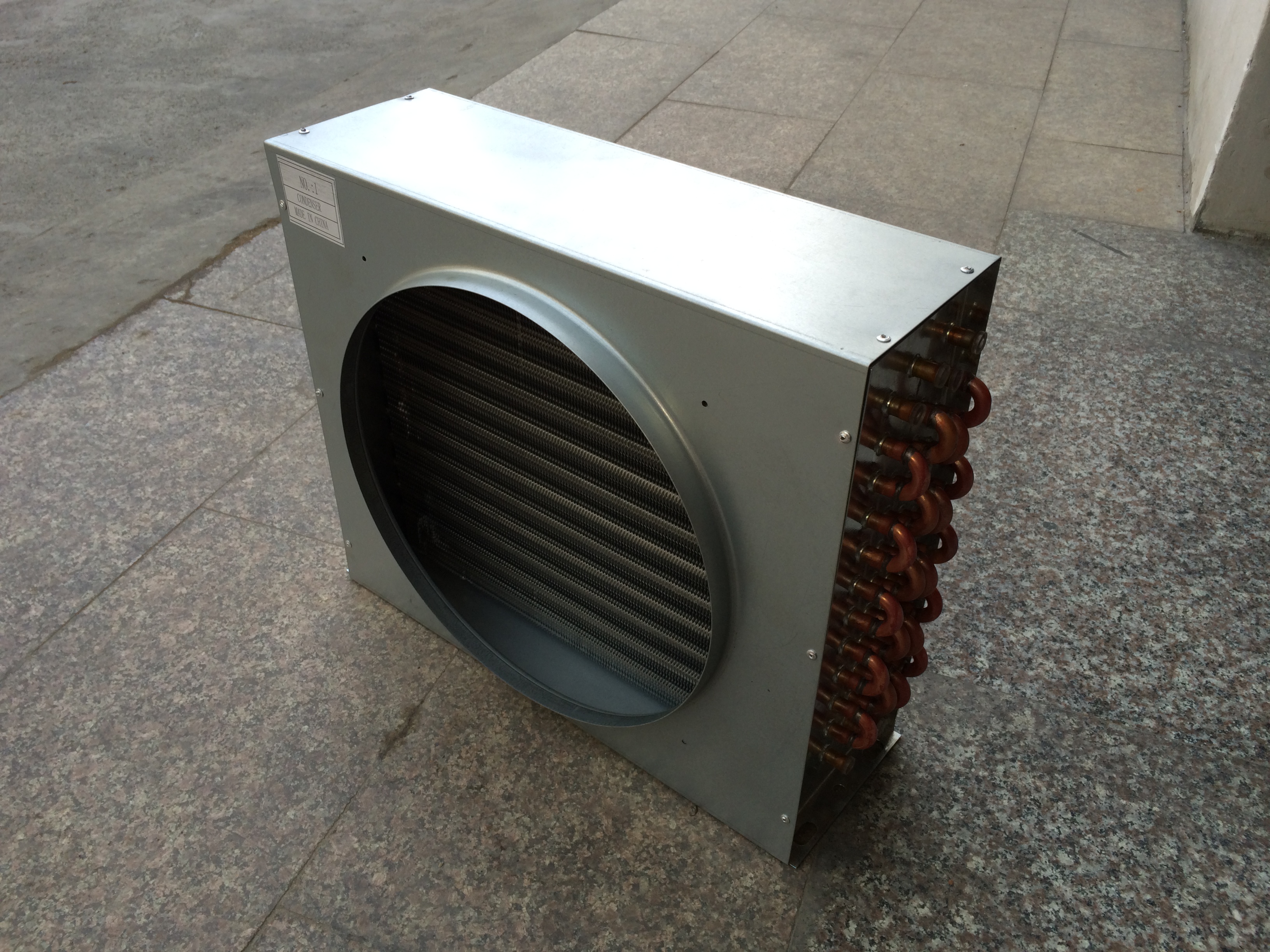

Product name | refrigeration air-coolded copper tube condenser |
Application | Refrigerator,Freezer,showcase,water cooler,cold room |
Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
Materials | Copper tube aluminum fin, galvanized plate |
Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
Aluminum fin | Hydroponic fin or bare fin,Copper fin |
Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
Fin space | 1.3-10mm |
Fan Cover | With cover or without cover,with fan motor or without fan motor |
Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
Feature | Eoxy coating, electrophoresis,sandblasting Leaking checking 100% |
Our mouid of copper condenser as following:
COPPER TUBE DIAMETER | HOLES PITCH AND ROWS PITCH | FIN SPACE | HOLES ARRAY | FIN SURFACE | FIN EDGE TYPE | DEFROST HEATER |
Φ15.88mm | 50 X 50mm | 4-10mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ15.88mm | 38 X 33mm | 2.5-4mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ12.7mm | 31.75 X 27.5mm | 3-9mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 25 X 21.65mm | 1.5-6mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 31.75 X 27.5mm | 2.5-7.5mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 25 X 21.65mm | 1.5-2.5mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
Φ7.94mm | 25 X 21.65mm | 1.5-3.5mm | EQUILATERAL TRIANGLE | FLAT | FLAT+WAVE | WITHOUT |
Φ7.0mm | 21 X 12.7mm | 1.3-1.8mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
Product name | refrigeration air-coolded copper tube condenser |
Application | Refrigerator,Freezer,showcase,water cooler,cold room |
Power | 1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP |
Materials | Copper tube aluminum fin, galvanized plate |
Tube O.D. | 7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm |
Aluminum fin | Hydroponic fin or bare fin,Copper fin |
Fin type | Flat fin, Window fin, louver fin, Smooth sine wave fin |
Fin space | 1.3-10mm |
Fan Cover | With cover or without cover,with fan motor or without fan motor |
Application refrigerant | R417A/R407C/R404A//R410A/R134A, ect. |
Feature | Eoxy coating, electrophoresis,sandblasting Leaking checking 100% |
Our mouid of copper condenser as following:
COPPER TUBE DIAMETER | HOLES PITCH AND ROWS PITCH | FIN SPACE | HOLES ARRAY | FIN SURFACE | FIN EDGE TYPE | DEFROST HEATER |
Φ15.88mm | 50 X 50mm | 4-10mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ15.88mm | 38 X 33mm | 2.5-4mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ12.7mm | 31.75 X 27.5mm | 3-9mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 25 X 21.65mm | 1.5-6mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 31.75 X 27.5mm | 2.5-7.5mm | EQUILATERAL TRIANGLE | SIN-WAVE&CORRUGATED | FLAT+WAVE | WITH |
Φ9.52mm | 25 X 21.65mm | 1.5-2.5mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
Φ7.94mm | 25 X 21.65mm | 1.5-3.5mm | EQUILATERAL TRIANGLE | FLAT | FLAT+WAVE | WITHOUT |
Φ7.0mm | 21 X 12.7mm | 1.3-1.8mm | EQUILATERAL TRIANGLE | LOUVER | FLAT | WITHOUT |
