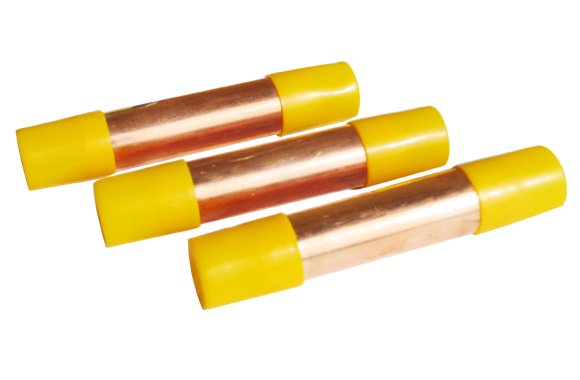

Refrigeration Copper Filter Drier
The copper filter drier is mainly installed in the front of the capillary tube refrigeration system or pipeline, or installed in an electronic expansion valve and out of the end for collecting lubricating oil in refrigeration systems and solid impurities, to prevent the system and an expansion valve and capillary blockage and ensure the smooth flow of the pipeline system.
● The copper filter driers are used in two-way circulation refrigeration system tubes.Absorb moisture and acidic harmful substances in the refrigeration system and filter impurities.
● The structure of the filter drier is made of copper tubes through circular arc spinning, the molecular sieve is built in to absorb water for drying, and the filter nets are installed at both ends.
● The dehydration and drying of the refrigerant and the filtration of impurities can avoid ice clogging and dirty clogging in the refrigerant cycle, so that the refrigeration machine can operate normally.
1)Copper filter drier (Copper Strainer) for refrigerator, freezer, air conditioner
and compressor unit,condenser unit,refrigeration unit
2) Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different colors available)
3) 5GR, 7GR, 10GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR
4) Words can be printed on the body of driers
5) Labels are also available for your choice
6) Molecular sieves: XH-9
7) Stop points available on both inlet and outlet or any one
8) Suitable for R134a, R12, Universal type
If you are interested in our copper filter drier, pls give us detailed specifications. Such asmolecular sieve, copper wall thickness and the copper tube diameter.
We can supply according to customer's drawings or samples.
For anything about the products, pls feel free to contact us. We will reply you immediately.
