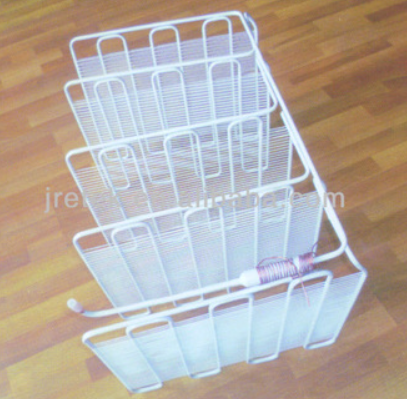

Steel Wire Tube Evaporator with White Painting for Refrigerator

Share to:

Steel Wire Tube Evaporator with White Painting for Refrigerator, find complete details about Steel Wire Tube Evaporator with White Painting for Refrigerator, wire on tube evaporator, Wire Tube Type Evaporator for Refrigerator, tube evaporator For Visi Cooler - RETEK refrigeration parts

  • RETEK-06
  • RETEKOOL
  • 8418999990
Quantity:

Specifications

Steel wire and bundy tube evaporator
1.Low carbon
2.Corrosion-resistant
3.Delivery fast
4.RoSH,CE

Steel wire and bundy tube evaporator

Specification:

Raw material

1) Rolling welded steel pipe: 8 ×0.71 , with wall thickness 0.7
2) low carbon steel wire 1.0 ~1.6
3) Bracket: Steel plate(SPCC) thickness: 0.6 0.9

Structure

Structure 1: evaporator for single temperature control system (Single-capillary evaporator)
Structure 2: evaporator for double temperature control system (Double-capillary evaporator)
Structure 3: evaporator for three way temperature control system (Three-capillary evaporator)

Key process

Tube bending, Welding, Mono shelf assemble, Assembly welding, Leakage test, Cleaning, Coating, Inspection, Packing

Technical standards

Wire pitch: ≥ 5 , can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different evaporators.

Performance

1 Surface treated with electrophoresis or powder painting to prevent the corrosion
2 Inner cleanness can meet the requirements of R134a & CFC cooling system.
3 Can satisfy the cooling capability requirements.

Capacity

3.0million sets per year (9000 sets per day).



R134a Cooling System Tube Inside Standards

Linear measure≤ 0.004LVerticality≤ 0.047B 2Residual moisture≤ 5 /100cm3Residual impurity≤ 10 /100cm3Residual mineral oil≤ 100 /100cm3Residual chlorine≤ 5vloppmResidual paraffin≤ 3 /



Specification of E-coating

Coating thickness  thickness of Anodic electrophoresis coating 18 22 μ m;  thickness of cathodic electrophoresis coating 15 20 μ m;  thickness of wire-tube evaporator powder coating:60 300μ mHardness of coating≥ 2HImpact of coating50cm?kg/cm impact, no crackAdhesion of coating≥two gradeFlexibility of coatingAround R=3D bend 180?, no crack or no fall offColor tolerance of powder paintingE ≤ 1.5Corrosion resistant(Salt spray GB2423)  Anodic electrophoresis coating ≥24h;  Cathodic electrophoresis coating ≥72h;  Powder paining≥200h







We can supply the items according to clients' drawing or samples.

Have any interests, pls feel free  to contact us. Thanks.
