RTK-008
retekool
8418999990
| Availability: | |
|---|---|
| Quantity: | |

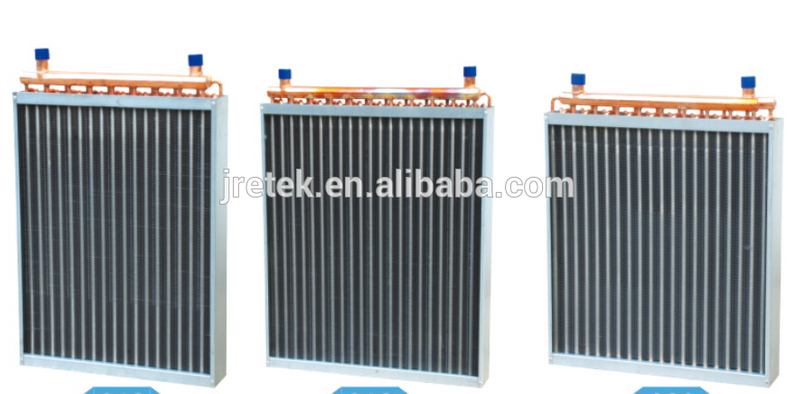

Copper Tube Type Evaporator Coil for Fridge
Made of copper pipe & aluminum fin
Widely used in refrigerator,freezer, cold room, condensing unit
Dimension could be different according to request.
Specification
Raw Material: Copper tube, aluminium fin, galvanized plate and stainless steel plate
Size of copper pipe: Diameter: 7mm, 7.94mm, 9.52mm, Inner Grooved Or smooth tube.
Aluminum foil: Hydrophilic or bare
Fin type: Louver Fin, Flat fin, corrugated fin
Pitch of fins can be adjusted between 1.8-5.8mm
Pitch of holes and pitch of rows: 25x21.65mm, 19.05x12.7mm, 25.4x22mm.
No less than 3.0mpa air pressure (nitrogen)leak test
Different alternative fan available: Micro fan, shaded pole or outer rotor fan motor
We can offer customized service as well
Suitable for R134a, R22, R404a, R407c, refrigerant etc
If you have any interest, pls feel free to contact with us at any time.
copper tube diameter | holds and rows pitch | fin space | holds array | fin surface | fin edge type | defrost heater |
Φ15.88mm | 50×50mm | 4-10mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ15.88mm | 38Χ33mm | 2.5-4mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ12.7mm | 31.75Χ27.5mm | 3-9mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 25Χ21.65mm | 1.5-6mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 31.75Χ27.5mm | 2.5-7.5mm | equilateral triangle | sin-wave&corrugated | flat+wave | with |
Φ9.52mm | 25χ21.65mm | 1.5-2.5mm | equilateral triangle | louver | flat | without |
Φ7.94mm | 25χ21.65mm | 1.5-3.5mm | equilateral triangle | flat | flat+wave | without |
Φ7.0mm | 21×12.7mm | 1.3-1.8mm | equilateral triangle | louver | flat | without |
