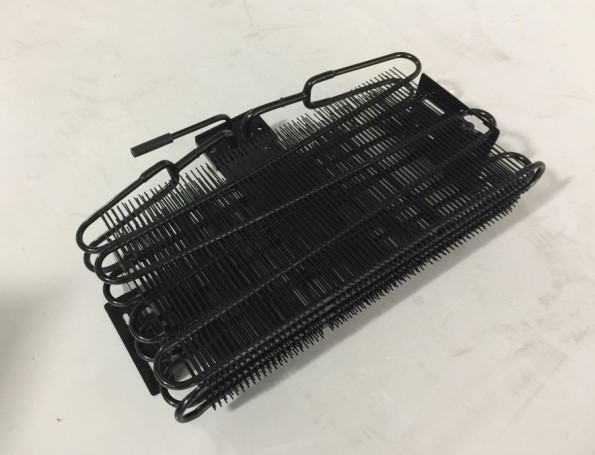

Refrigeration parts of Semiconductor Condenser

Specifications

1,Porduct No.:semi co-6

2,Wire Diameter:1.2mm

3,Bundy Tube Diameter:4.76mm

4,Layers:10

5,Certificate:Rohs,UL,Iso

PRODUCT NAME:

Semiconductor Refrigerating Condenser

APPLICATION:

REFRIGERATOR,FREEZER,SHOWCASE,WATER COOLER

REFRIGENT:

R134a

MAIN MATERIAL:

1,BUNDY TUBE:Ø4.76/6/6.35/8/9.52,WALL THICKNESS 0.7MM.

2,LOW CARBON STEEL WIRE Ø1.0-1.6MM.

3,BRACKET:STEEL PLATE(SPCC),THICKNESS 0.6-1.5MM.

4,STEEL PLATE:SPCC THICKNESS 0.3-0.4MM

STRUCTURE:

1,FLAT TYPE OF WIRE ON TUBE CONDENSER USED AT THE BACK.

2,BENDED OR SPIRAL TYPE OF WIRE ON TUBE CONDENSER USED AT THE BOTTOM.

3,WRAPPED TYPE OF TUBE EMBED ON PLATE.

MAIN PRODUCTION PROCESS:

TUBE BENDING->WELDING->FIX THE BRACKET->WELD THE SUCTION TUBE->LEAKAGE TEST->COATING->FOLDING OR BENDING SHAPING->INSPECTION->PAKAGE.

PERFORMANCE:

1,SUEFACE WITH ELECTROPHORESIS COATING TO PREVENT THE CORROSION.

2,INNER CLEANESS CAN MEET THE REQUIREMENT OF CFC & R134A COOLING SYSTEM

3,CAB SATIFY DIFFERENT COOLING CAPABILITY REQUIREMENTS.
