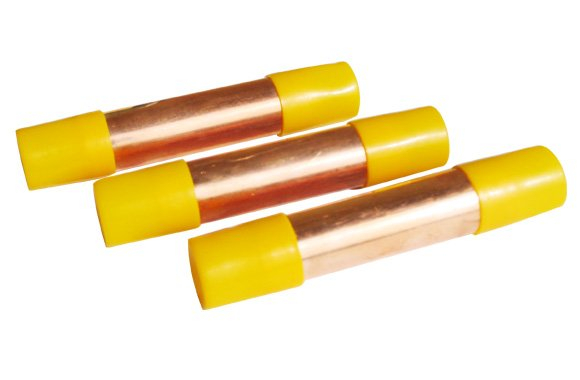

Universal Type Refrigerator welded type copper filter drier

Universal Type Refrigerator welded type copper filter drier

1,Drier NO.:GT-316 2,Cap Colour:Yellow/Green/Blue/White different available 3,Molec:5g-50g 4,Wall thickness:0.35-0.8mm 5,Certificate:Rohs

Model:
WF10
Brand:
RETEKOOL

Availability:

Quantity:



Inquire Add to Basket

Product Description

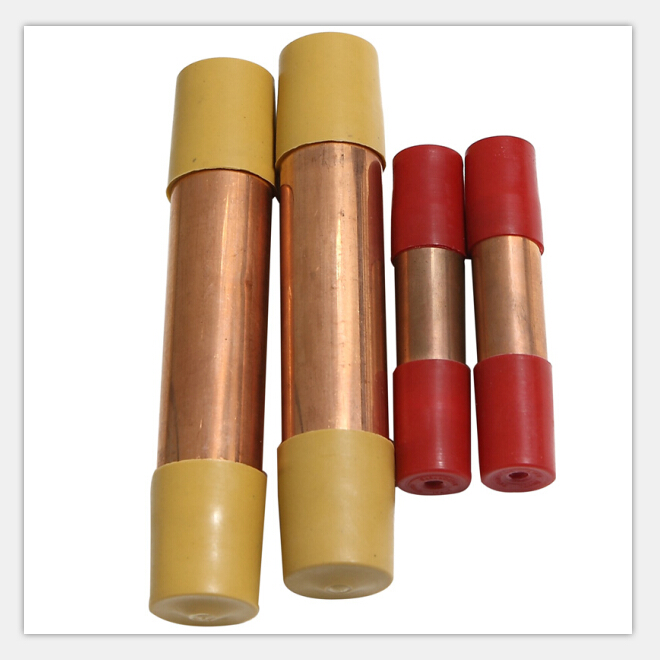

1)Welded filter drier (Copper Strainer) for refrigerator, freezer, air conditioner
and compressor unit,condenser unit,refrigeration unit

2) Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different colors available)
3) 5GR, 7GR, 10GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR
4) Words can be printed on the body of driers
5) Labels are also available for your choice
6) Molecular sieves: XH-9
7) Stop points available on both inlet and outlet or any one
8) Suitable for R134a, R12, Universal type

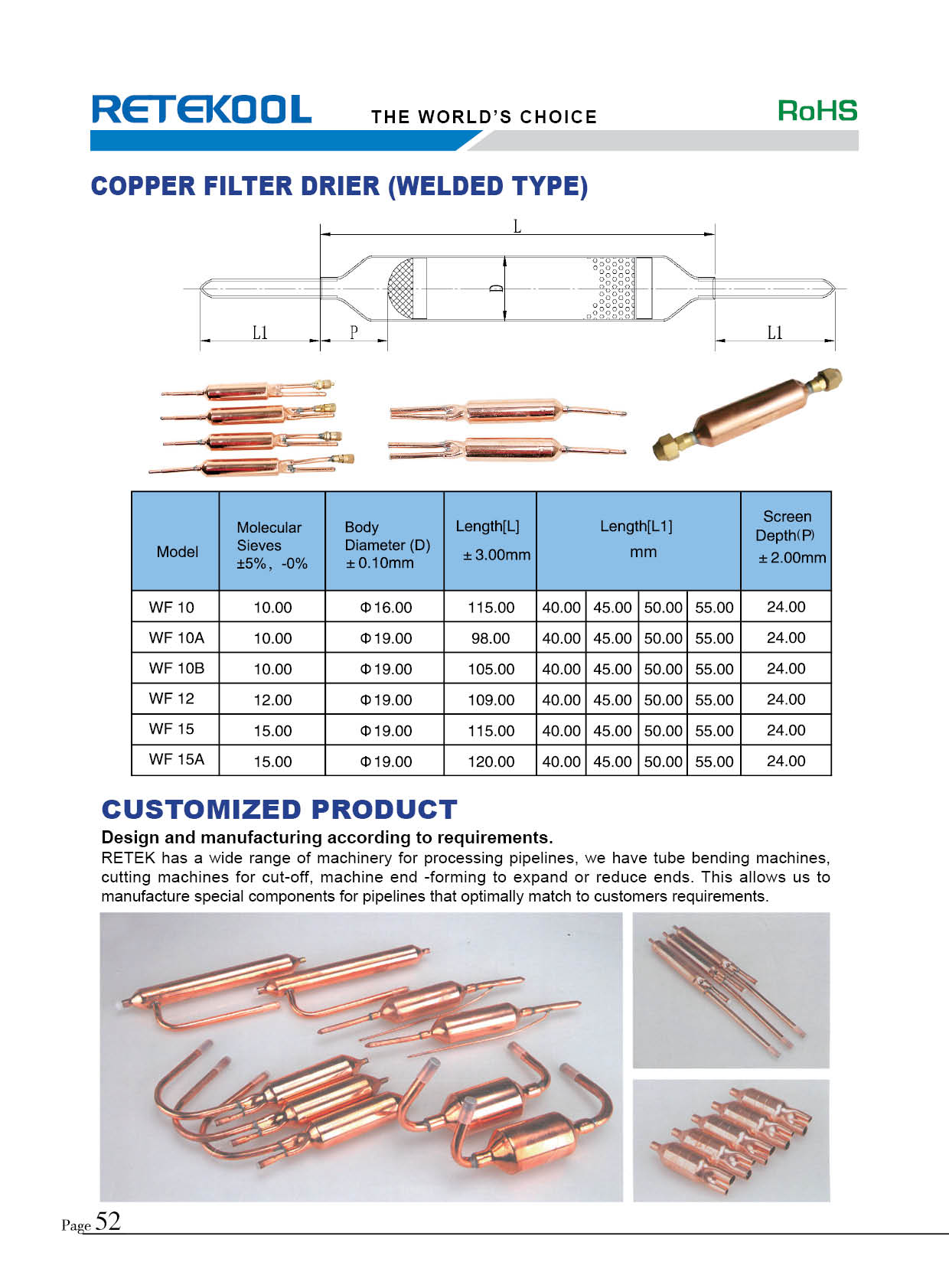

Model	Molec	External Diameter(D)	Length(L)	Length(L1)				Screen Depth(P)
Tolerances	±5%	±0.10mm	±3.00mm	mm				±2.00mm
WF10	10	Φ16	115	40	45	50	55	24
WF10A	10	Φ19	98	40	45	50	55	24
WF10B	10	Φ19	105	40	45	50	55	24
WF12	12	Φ19	109	40	45	50	55	24
WF15	15	Φ19	115	40	45	50	55	24
WF15A	15	Φ19	120	40	45	50	55	24
WF20	20	Φ19	141	40	45	50	55	24
WF20A	20	Φ24	120	40	45	50	55	26
WF25	25	Φ24	125	40	45	50	55	26
WF30	30	Φ24	140	40	45	50	55	26
WF35	35	Φ24	155	40	45	50	55	26
WF40	40	Φ24	170	40	45	50	55	28
WF50	50	Φ29	160	40	45	50	55	30
