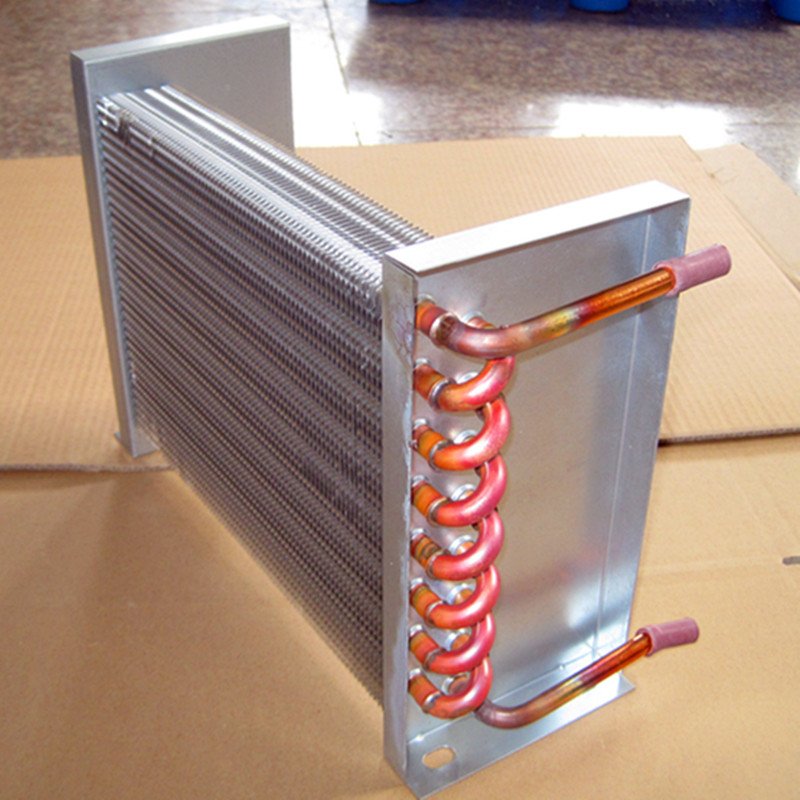

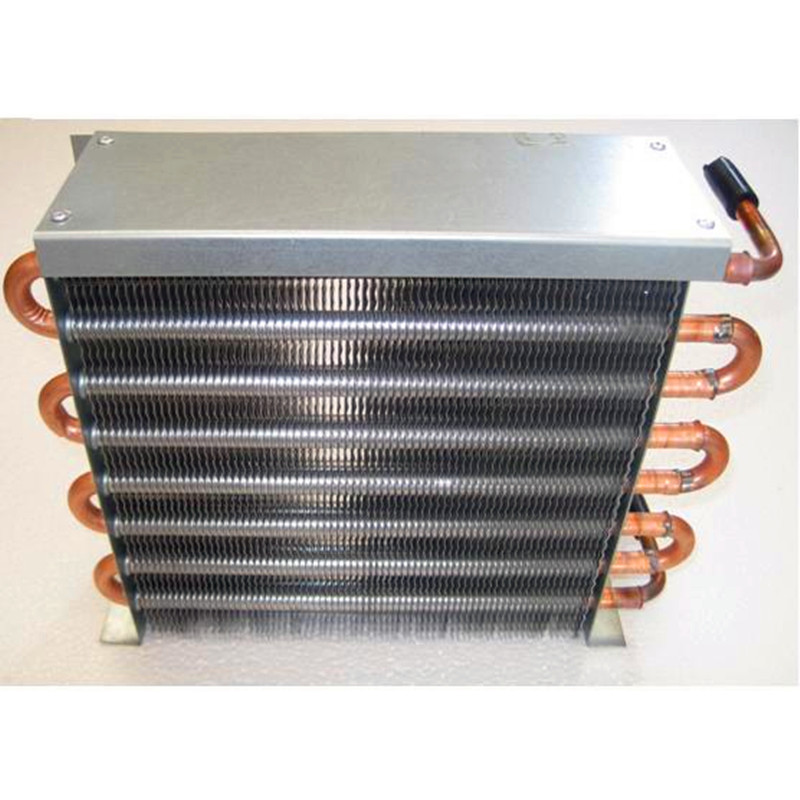

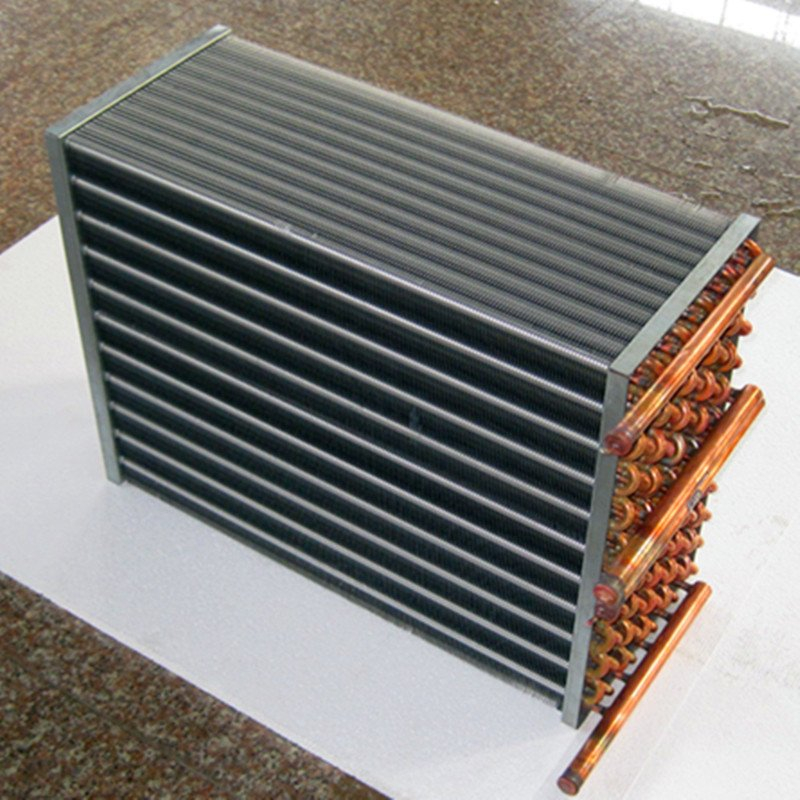

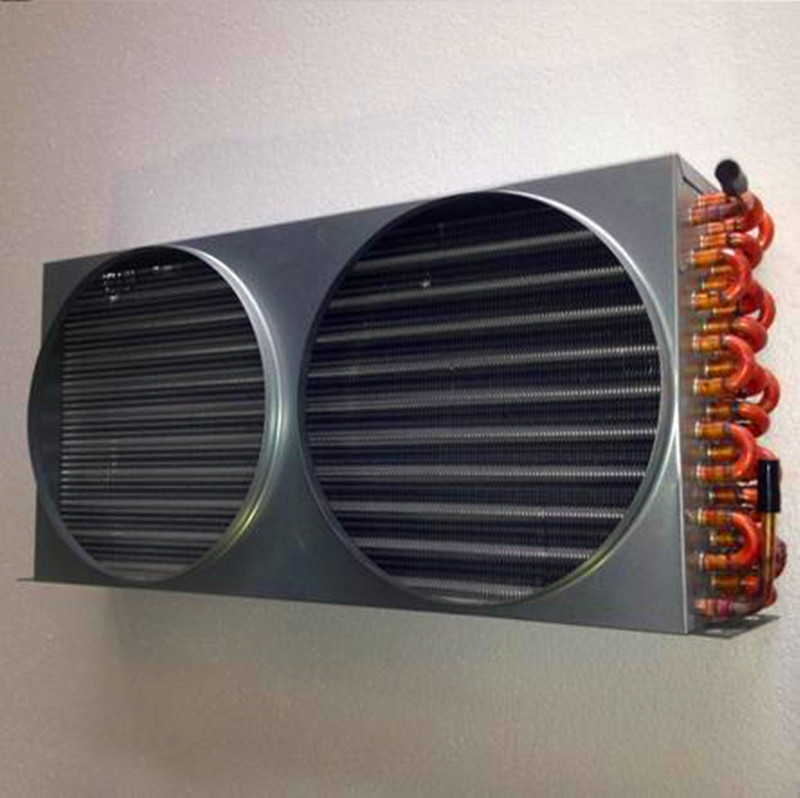

Commercial aluminium vs Copper Heat Exchanger coil For Cold Storage
Materials:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
Specifications
Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||
| BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F | |
| 12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A |
| 16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 |
| 16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 |
| 18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 |
| 18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 |
| 19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 |
| 20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 |
| 22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 |
| 20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 |
| 22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 |
MAX.Dimension:36*36
