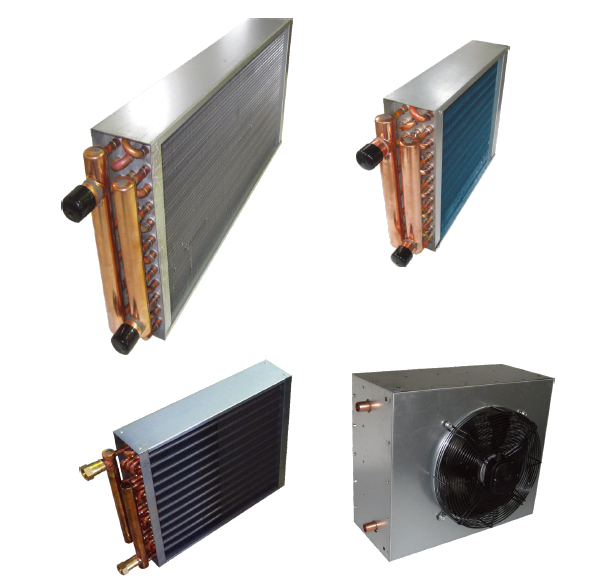

Copper Tube aluminium finned Heat Exchangers for outdoor wood furnace

Copper Tube aluminium finned Heat Exchangers for outdoor wood furnace

It is copper heat changer,widely used in refrigeration euqipment,many customers call it Copper Heat Exchanger For Freezing ,its material is copper tube and aluminium fin,also can do it with or without fan motor.this model is special for USA market,for outdoor wood furnace

Model:
RTK12*12
Brand:
RETEKOOL
Code:
8418

Availability:

Quantity:



Inquire Add to Basket

Product Description

Copper Tubular Heat Exchangers for outdoor wood furnace:

It is copper heat changer,widely used in refrigeration euqipment,many customers call it Copper Heat Exchanger For Freezing.Commercial Copper Heat Exchanger,also can be Copper Heat Exchanger For Low Temperature Cold Room

Model	Capacity,	Water flowrate(gpm)/pressure drop(psi)			Air flowrate(cfm)
	BTU/h	180-160F	180- 150F	180- 170F	Delta T 20F
12×12	60000	6.2/0.04	4.1/0.02	12.4/0.14	273A
16×16	80000	8.2/0.09	5.5/4.04	16.5/0.30	3630
16×18	100000	10.3/0.15	6.9/0.07	20.6/0.49	4544
18×18	120000	12.4/0.17	8.2/0.08	24.7/0.57	5450
18×20	140000	14.4/0.24	9.6/0.12	28.8/0.83	6360
19×20	150000	15.5/0.28	10.3/0.14	30.9/0.94	6810
20×20	160000	16.5/0.26	11.0/0.13	33.8/0.87	7270
22×22	200000	20.6/0.35	13.7/0.17	41.2/1.19	9080
20×25	190000	19.6/0.43	13.1/0.21	39.1/1.46	8630
22×25	220040	22.7/0.47	15.1/0.23	45.3/1.59	9990
