We could supply copper pipe fin type heat exchanger for deep freezer ,some customers send us drawing and we produce according to drawing,some customers call it Commercial Copper Heat Exchanger,we sells copper brazed heat exchanger to many different markets

Model: 14*14
Brand: RETEKOOL
Code: 8419500090

Quantity:


Inquire Add to Basket

Product Description

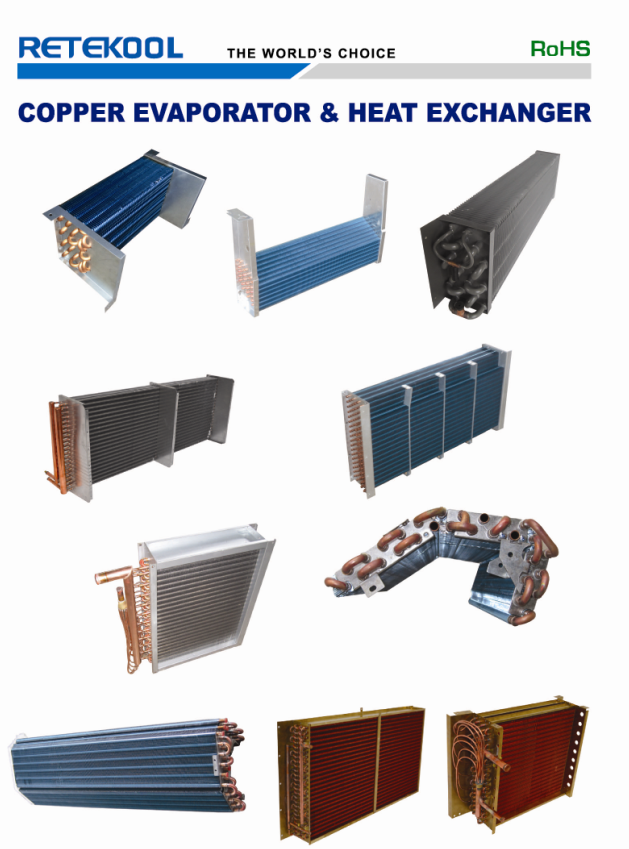

We could supply many different kinds of copper pipe fin type heat exchanger,copper pipe heat exchanger,copper tube heat exchanger,radiator for deep freezer

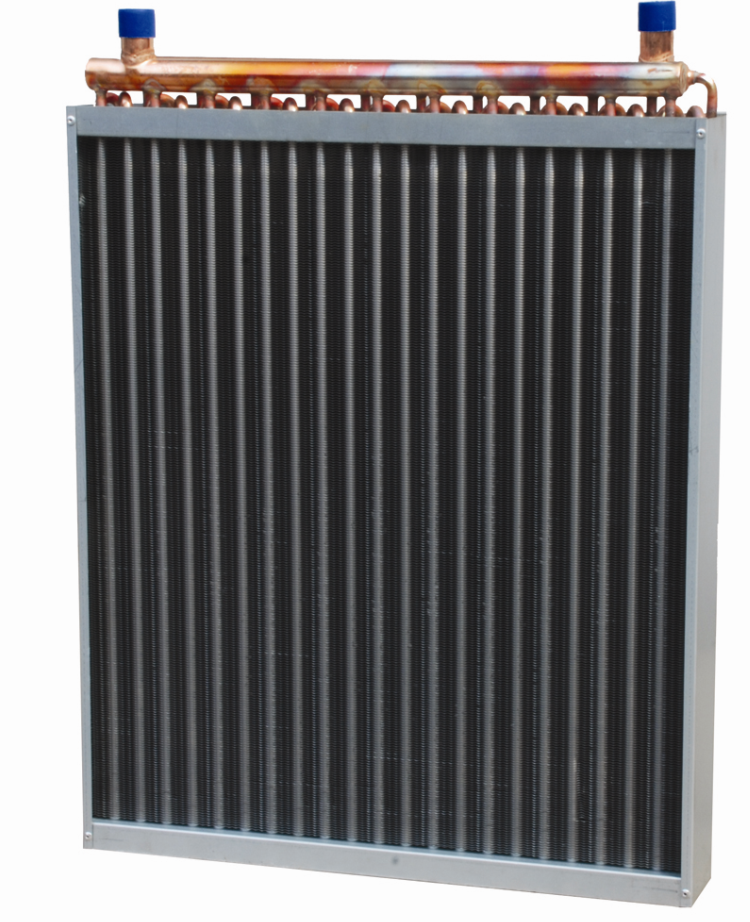

Materials:

Tube coil: 3/8” seamless copper (3row)or other dimension

Plate fin: Aluminum

Core housing: Galvanized steel

Header: 1" ID Copper or other dimension

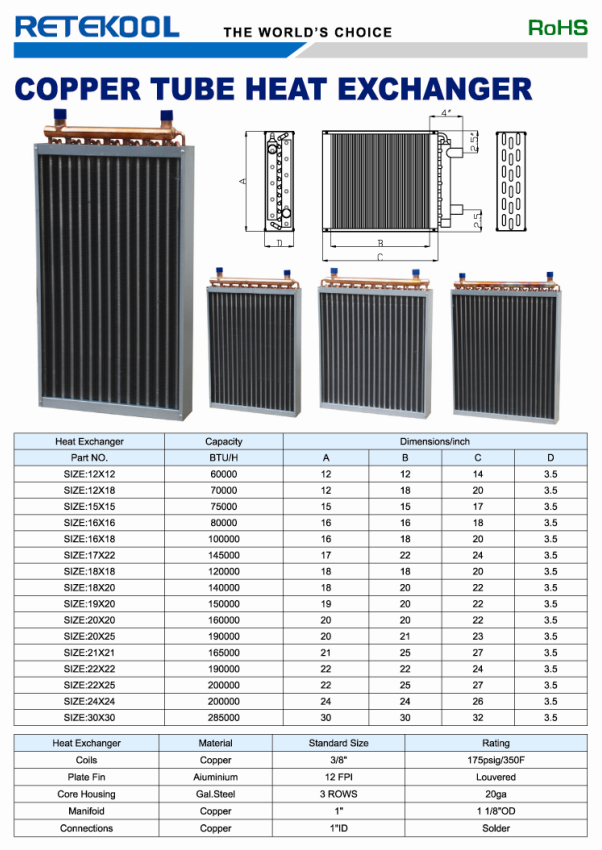

Specifications

Model	Capacity,	Water flowrate(gpm)/pressure drop(psi)			Air flowrate(cfm)
	BTU/h	180-160F	180- 150F	180- 170F	Delta T 20F
12×12	60000	6.2/0.04	4.1/0.02	12.4/0.14	273A
16×16	80000	8.2/0.09	5.5/4.04	16.5/0.30	3630
16×18	100000	10.3/0.15	6.9/0.07	20.6/0.49	4544
18×18	120000	12.4/0.17	8.2/0.08	24.7/0.57	5450
18×20	140000	14.4/0.24	9.6/0.12	28.8/0.83	6360
19×20	150000	15.5/0.28	10.3/0.14	30.9/0.94	6810
20×20	160000	16.5/0.26	11.0/0.13	33.8/0.87	7270
22×22	200000	20.6/0.35	13.7/0.17	41.2/1.19	9080
20×25	190000	19.6/0.43	13.1/0.21	39.1/1.46	8630
22×25	220040	22.7/0.47	15.1/0.23	45.3/1.59	9990
