We could supply aluminium heat exchanger, heat exchanger for fridge,aluminium fin heat exchanger,aluminium vs radiator,radiator for fridge,aluminium finned heat exchanger,aluminium finned radiator ,some customers send us drawing and we produce according to drawing,some customers call it Commercial Copper Heat Exchanger,we sells copper brazed heat exchanger to many different markets
Quantity: | |
---|---|
We could supply aluminium heat exchanger, heat exchanger for fridge,aluminium fin heat exchanger,aluminium vs radiator,radiator for fridge,aluminium finned heat exchanger,aluminium finned radiator

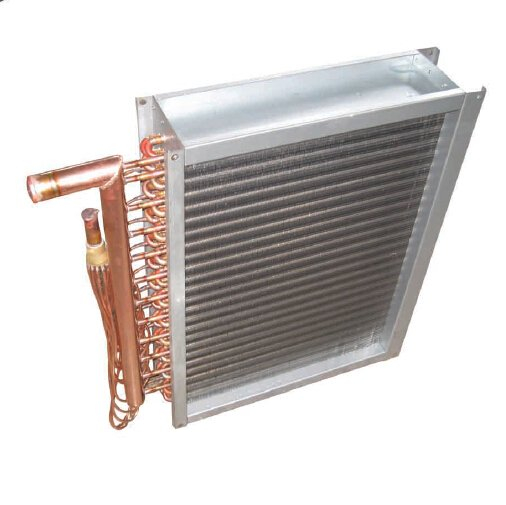

Materials:
Tube coil: 3/8” seamless copper (3row)or other dimension
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper or other dimension
Specifications
Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||
BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F | |
12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A |
16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 |
16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 |
18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 |
18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 |
19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 |
20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 |
22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 |
20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 |
22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 |
MAX.Dimension:36*36
