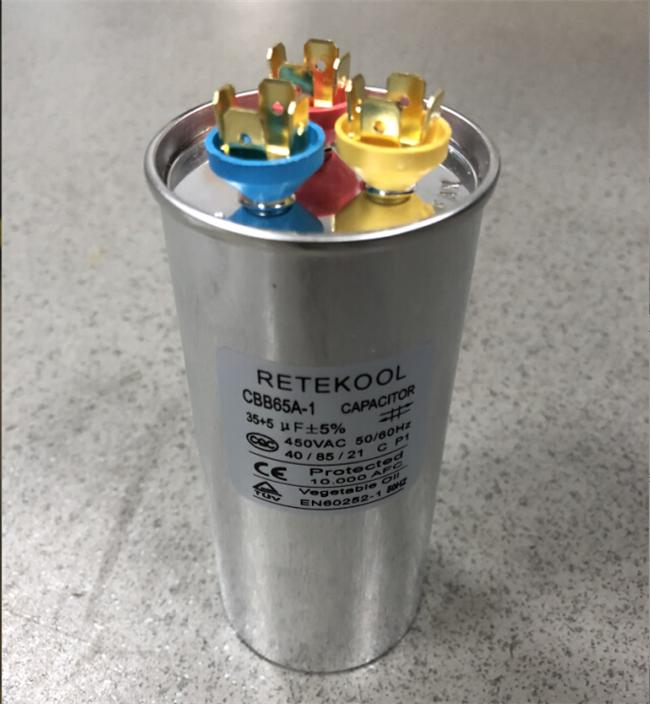

CBB65 Oval AC Run Aluminum Shell Film Capacitor

Share to:

CBB65 Oval AC Run Aluminum Shell Film Capacitor.

  • customized
  • customized
  • 8532259
Quantity:
 PRODUCT DESCRIPTION

Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.

APPLICATION AREA
  Air conditioning,compressor,cold dryer or other single-phase power supplu system asynchronous motor and three-phase asynchranous motor use single phase power supply

TECHNICAL PARAMETER

Technical Parameter Reference value
Voltage range 110Vac ~ 450Vac 50/60Hz
Capacitance range 2μF~100μF
Capacitance tolerance ±5%(J), ±10%(K)
Operating temperature range -40℃~85℃
Withstand voltage  T-T 2Un/60s
T-C 2Un +1000Vac/60s( ≥2200V)
Dissipation factor ≤0.004, 1000Hz
Altitude ≤2000m
Reference standard
GB/T3667.1, IEC/EN60252.1 UL810,VDE0560-8
