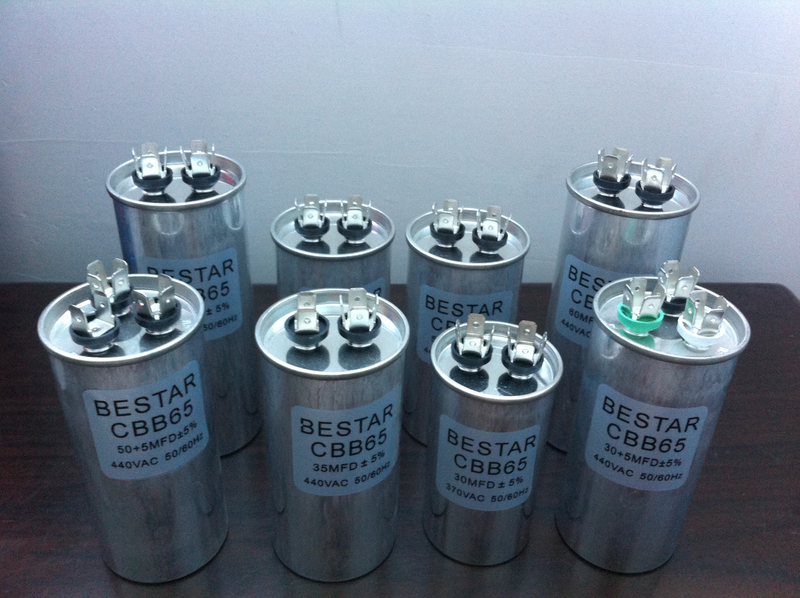

CBB65
customized
8532259
| Availability: | |
|---|---|
| Quantity: | |
Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.
Air conditioning,compressor,cold dryer or other single-phase power supplu system asynchronous motor and three-phase asynchranous motor use single phase power supply
| Technical Parameter | Reference value |
| Voltage range | 370Vac ~ 450Vac 50/60Hz |
| Capacitance range | 1+15μF~15+80μF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Operating temperature range | -40℃~85℃ |
| Withstand voltage | T-T 2Un/60s |
| T-C 2Un +1000Vac/60s( ≥2200V) | |
| Dissipation factor | ≤0.004, 1000Hz |
| Altitude | ≤2000m |
| Reference standard | GB/T3667.1, IEC/EN60252.1 UL810,VDE0560-8 |
| Capacitance | 370-450VAC | |
| D | H | |
| 1+15μF—10+15μF | 50 | 75-80 |
| 1+20μF—10+20μF | 50 | |
| 1+25μF—10+25μF | 50 | 85-105 |
| 1+30μF—10+30μF | 50 | |
| 1+35μF—10+35μF | 50 | |
| 1+40μF—10+40μF | 50 | |
| 1+45μF—10+45μF | 50 | |
| 1+50μF—10+50μF | 50 | 105-125 |
| 1+55μF—10+55μF | 55 | |
| 1+60μF—10+60μF | 55 | |
| 1+70μF—10+70μF | 60 | 100-125 |
| 1+80μF—10+80μF | 55 | |
Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.
Air conditioning,compressor,cold dryer or other single-phase power supplu system asynchronous motor and three-phase asynchranous motor use single phase power supply
| Technical Parameter | Reference value |
| Voltage range | 370Vac ~ 450Vac 50/60Hz |
| Capacitance range | 1+15μF~15+80μF |
| Capacitance tolerance | ±5%(J), ±10%(K) |
| Operating temperature range | -40℃~85℃ |
| Withstand voltage | T-T 2Un/60s |
| T-C 2Un +1000Vac/60s( ≥2200V) | |
| Dissipation factor | ≤0.004, 1000Hz |
| Altitude | ≤2000m |
| Reference standard | GB/T3667.1, IEC/EN60252.1 UL810,VDE0560-8 |
| Capacitance | 370-450VAC | |
| D | H | |
| 1+15μF—10+15μF | 50 | 75-80 |
| 1+20μF—10+20μF | 50 | |
| 1+25μF—10+25μF | 50 | 85-105 |
| 1+30μF—10+30μF | 50 | |
| 1+35μF—10+35μF | 50 | |
| 1+40μF—10+40μF | 50 | |
| 1+45μF—10+45μF | 50 | |
| 1+50μF—10+50μF | 50 | 105-125 |
| 1+55μF—10+55μF | 55 | |
| 1+60μF—10+60μF | 55 | |
| 1+70μF—10+70μF | 60 | 100-125 |
| 1+80μF—10+80μF | 55 | |
