Feature & Application
1.60 MFD 370 V Round Run Capacitor is type for Metallized Polypropylene Film Capacitor ,Metal Case P2 Motor run capacitor.
2. CBB65 Capacitors is equipped inside with reliable explosion-proof equipment and is highly safe
3. Very good pressure resistance function.
4. Air Conditioner capacitor widely used for air-conditioners, refrigerators, generators, compressor and HVAC system.

Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque = 5 Nm)

Products Details
Place of Origin: Zhejiang, China
Brand Name: RETEKOOL. Also can be client's brand
Model Number: CBB65
Type: Metallized Polypropylene Film Capacitor
Application: Running of AC single-phase motors at 50/60Hz for AC motors
Materials of Case: Aluminium (Polishing or not)
Shape: Cylinder and Oval
Terminal:
2+2 pins 6.35mm x 0.8 250#
2+3 pins 6.35mm x 0.8 250#
2+4 pins 6.35mm x 0.8 250#
4+4 pins 6.35mm x 0.8 250#
2+3+4 pins 6.35mm x 0.8 250#
2+2+2 pins 6.35mm x 0.8 250#
4+4+4 pins 6.35mm x 0.8 250#
Certifications: CQC in China, CE & RoHS in Europe
Loading Port: Ningbo, Shanghai, Yiwu, Guangzhou

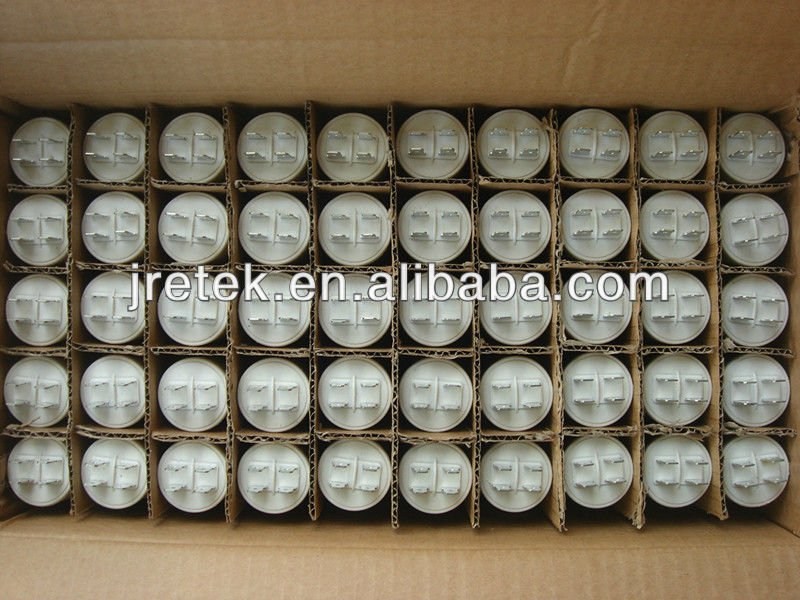

Package: 50-100 Pieces per carton, based on capacitors size
Delivery Time: 15 - 30 days (based on order quantity)
Payment Term: T/T, L/C at sight, Cash, Western Union
Shipment Term: FOB, CNF, CIF
MOQ 200 Pieces per type
Supply Ability: 1,200,000 Piece/Pieces per Month
Samples: For free (The freight shoule be paid by custom)
H.S. Code: 8532 2590

Technical data and specifications
Reference standards: IEC 60252-1
Safety class according: IEC 60252-1 P2
Life expectancy to IEC 60252-1: 3,000(C) ~ 10,000h(B)
Rated capacitance CR: 2µF ~ 150µF (MFD)
Tolerance: ± 5%
Rated voltage VR: 110VAC ~ 630VAC
Rated frequency FR: 50/60Hz
Maximum permissible votage Vmax: 1.1 x VR (VR=Rated voltage)
Maximum permissible current Imax: 1.3 x IR (IR=Rated current)
AC test voltage terminal to terminal VTT:
2 x VR, 2s (routine test)
2 x VR, 60s (type test)
Insulation voltage terminal to case:
1.75 x VR, 2s (type test)
1.75 x VR, 60s (routine test)
Dissipation factor: tan δ ≤0.002 (50Hz)
Climate types: 25/085/21 to IEC 60068-1
