Cooling water dispenser condenser coil

Water dispenser condenser coil

Material:1.bundy tube :diameter4.76,6,6.35,8,9.52,wall thickness 0.7

                    2.low carbon steel wire dia1.0-1.6

                    3.bracket:steel plate(SPPC),thickness 0.6-1.5

                     4.steel plate:SPPC thickness 0.3-0.4

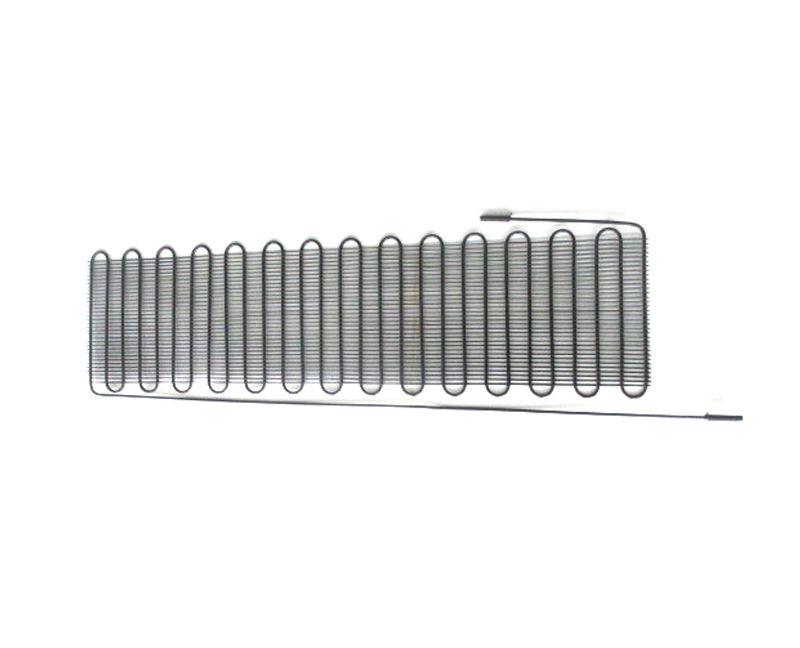

Structure: A. flat type of wire on tube condenser used at the back

                  B.bended or spiral type of wire  on tube condenser used at the bottom

                  C.wrapped type of tube embed on plate

Main production prosess: tube bending,welding,fix the bracket,weld the suction tube,leakage test,coating,folding or bending shaping ,inspection,package

Technical ability:wire pitch ≥5mm

 We can produce  according to the drawing or sample supplied by clients,also can help the clients disign and produce different condensers

Performace:1.Surface with electrophoresis coating to prevent corrosion

                       2.Inner cleaness can meet the requirement of CFC&R134a cooling system

                        3.Can satisfy different cooling capability requirements

Capacity:2 million sets per year(6000 sets per day)
