DT-3006
RETEK
500000000PCS Per Year
China
Packed in Seaworthy Cartons
pc
3000pcs
within 15 days
1
T/T
| Quantity: | |
|---|---|

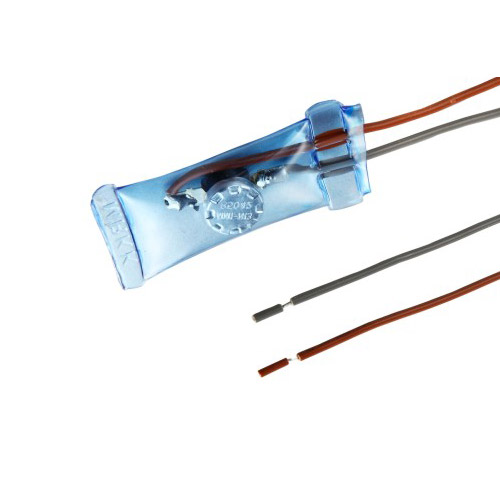

Temperature automatic control for removing frost and for protecting the frozen rupture
in the cold storage or freezing systems
with temperature protect thermal cut off
Easy to install at the small or narrow space
slim shape -Small size with high contacting capacitance
Available waterproof and dustproof types with welding vinyl tube on the parts
Specificates Rated Current AC 250V/5A
Action Temperature OFF/Open:11+-3 degree C
ON/Close:2+-4 degree C
Insulation Resistance ≥100M Min.
Temperature automatic control for removing frost and for protecting the frozen rupture
in the cold storage or freezing systems
with temperature protect thermal cut off
Easy to install at the small or narrow space
slim shape -Small size with high contacting capacitance
Available waterproof and dustproof types with welding vinyl tube on the parts
Specificates Rated Current AC 250V/5A
Action Temperature OFF/Open:11+-3 degree C
ON/Close:2+-4 degree C
Insulation Resistance ≥100M Min.
| Features |
| 1. Easy to install in small or narrow spaces due to slim shape |
| 2. Small size with high contacting capacitance |
| 3. Available waterproof and dust proof types with welded vinyl tubes |
| 4. Any custom requriement on the caps, brackets or contacts are acceptable |
| Specification |
| Electrical Ratings: AC125V 15A 5A; AC250V 10A 5A 16A |
| ON/OFF Temperature: -30°C~80°C(-22°F~176°F) |
| ON/OFF Diff: Min 5°C; Standard 15~25°C |
| Tolerance: Min±2°C; Standard±5°C |
| NOTE: If those shown are not acceptable, Please contact us to discuss specific requirement. |
| We believe our product quality and service attitude will make you satisfied with us. |
| Features |
| 1. Easy to install in small or narrow spaces due to slim shape |
| 2. Small size with high contacting capacitance |
| 3. Available waterproof and dust proof types with welded vinyl tubes |
| 4. Any custom requriement on the caps, brackets or contacts are acceptable |
| Specification |
| Electrical Ratings: AC125V 15A 5A; AC250V 10A 5A 16A |
| ON/OFF Temperature: -30°C~80°C(-22°F~176°F) |
| ON/OFF Diff: Min 5°C; Standard 15~25°C |
| Tolerance: Min±2°C; Standard±5°C |
| NOTE: If those shown are not acceptable, Please contact us to discuss specific requirement. |
| We believe our product quality and service attitude will make you satisfied with us. |
