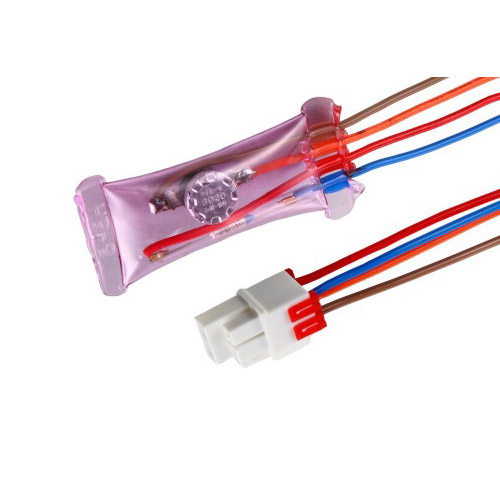

DT-3014 Bi-metal Defrosting Refrigerator Thermostat

Share to:
  • DT-3014
  • RETEK
  • 500000000PCS Per Year
  • China
  • Packed in Seaworthy Cartons
  • pc
  • 3000pcs
  • within 15 days
  • 1
  • T/T
Quantity:

 Temperature automatic control for removing frost  and for protecting the frozen rupture
 in the cold  storage or freezing systems
 with temperature protect thermal cut off
 Easy to install at the small or narrow space
 slim shape -Small size with high contacting capacitance
 Available waterproof and dustproof types with welding vinyl tube on the parts

 Specificates  Rated Current AC 250V/5A
 Action Temperature  OFF/Open:11+-3 degree C

                                      ON/Close:2+-4 degree C

 Insulation Resistance ≥100M Min.









       Features
       1. Easy to install in small or narrow spaces due to slim shape
       2. Small size with high contacting capacitance
       3. Available waterproof and dust proof types with welded vinyl tubes
       4. Any custom requriement on the caps, brackets or contacts are acceptable
       Specification
       Electrical Ratings:     AC125V 15A 5A; AC250V 10A 5A 16A
       ON/OFF Temperature:  -30°C~80°C(-22°F~176°F)
       ON/OFF Diff:        Min 5°C; Standard 15~25°C
       Tolerance:           Min±2°C; Standard±5°C
       NOTE: If those shown are not acceptable, Please contact us to discuss specific requirement.
