GT-318
RETEKOOL
| Quantity: | |
|---|---|

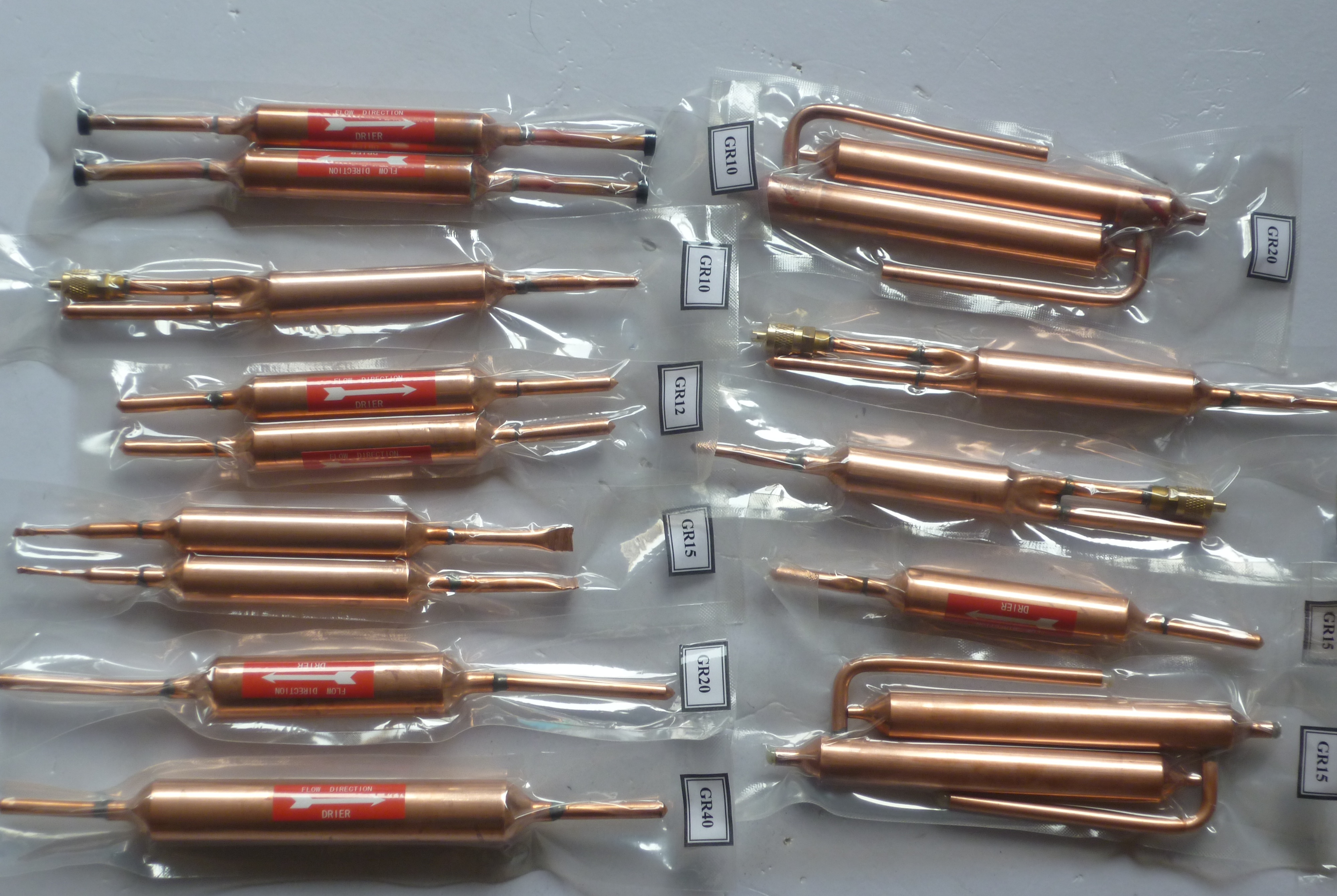

1)Welded filter drier (Copper Strainer) for refrigerator, freezer, air conditioner
and compressor unit,condenser unit,refrigeration unit
2) Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different colors available)
3) 5GR, 7GR, 10GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR
4) Words can be printed on the body of driers
5) Labels are also available for your choice
6) Molecular sieves: XH-9
7) Stop points available on both inlet and outlet or any one
8) Suitable for R134a, R12, Universal type
| Model | Molec | External Diameter(D) | Length(L) | Length(L1) | Screen Depth(P) | |||
| Tolerances | ±5% | ±0.10mm | ±3.00mm | mm | ±2.00mm | |||
| WF10 | 10 | Φ16 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF10A | 10 | Φ19 | 98 | 40 | 45 | 50 | 55 | 24 |
| WF10B | 10 | Φ19 | 105 | 40 | 45 | 50 | 55 | 24 |
| WF12 | 12 | Φ19 | 109 | 40 | 45 | 50 | 55 | 24 |
| WF15 | 15 | Φ19 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF15A | 15 | Φ19 | 120 | 40 | 45 | 50 | 55 | 24 |
| WF20 | 20 | Φ19 | 141 | 40 | 45 | 50 | 55 | 24 |
| WF20A | 20 | Φ24 | 120 | 40 | 45 | 50 | 55 | 26 |
| WF25 | 25 | Φ24 | 125 | 40 | 45 | 50 | 55 | 26 |
| WF30 | 30 | Φ24 | 140 | 40 | 45 | 50 | 55 | 26 |
| WF35 | 35 | Φ24 | 155 | 40 | 45 | 50 | 55 | 26 |
| WF40 | 40 | Φ24 | 170 | 40 | 45 | 50 | 55 | 28 |
| WF50 | 50 | Φ29 | 160 | 40 | 45 | 50 | 55 | 30 |
1)Welded filter drier (Copper Strainer) for refrigerator, freezer, air conditioner
and compressor unit,condenser unit,refrigeration unit
2) Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different colors available)
3) 5GR, 7GR, 10GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR
4) Words can be printed on the body of driers
5) Labels are also available for your choice
6) Molecular sieves: XH-9
7) Stop points available on both inlet and outlet or any one
8) Suitable for R134a, R12, Universal type
| Model | Molec | External Diameter(D) | Length(L) | Length(L1) | Screen Depth(P) | |||
| Tolerances | ±5% | ±0.10mm | ±3.00mm | mm | ±2.00mm | |||
| WF10 | 10 | Φ16 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF10A | 10 | Φ19 | 98 | 40 | 45 | 50 | 55 | 24 |
| WF10B | 10 | Φ19 | 105 | 40 | 45 | 50 | 55 | 24 |
| WF12 | 12 | Φ19 | 109 | 40 | 45 | 50 | 55 | 24 |
| WF15 | 15 | Φ19 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF15A | 15 | Φ19 | 120 | 40 | 45 | 50 | 55 | 24 |
| WF20 | 20 | Φ19 | 141 | 40 | 45 | 50 | 55 | 24 |
| WF20A | 20 | Φ24 | 120 | 40 | 45 | 50 | 55 | 26 |
| WF25 | 25 | Φ24 | 125 | 40 | 45 | 50 | 55 | 26 |
| WF30 | 30 | Φ24 | 140 | 40 | 45 | 50 | 55 | 26 |
| WF35 | 35 | Φ24 | 155 | 40 | 45 | 50 | 55 | 26 |
| WF40 | 40 | Φ24 | 170 | 40 | 45 | 50 | 55 | 28 |
| WF50 | 50 | Φ29 | 160 | 40 | 45 | 50 | 55 | 30 |
