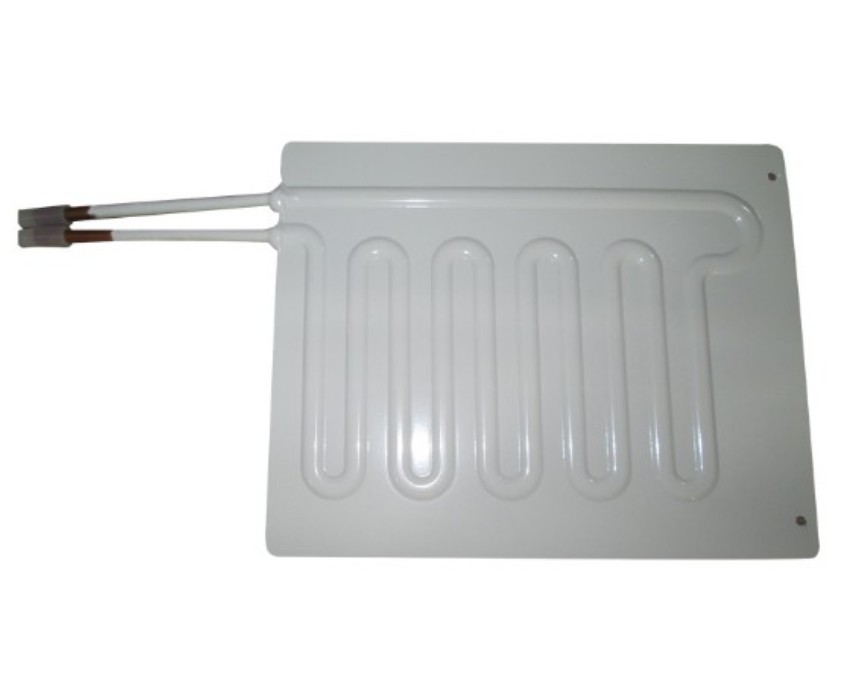

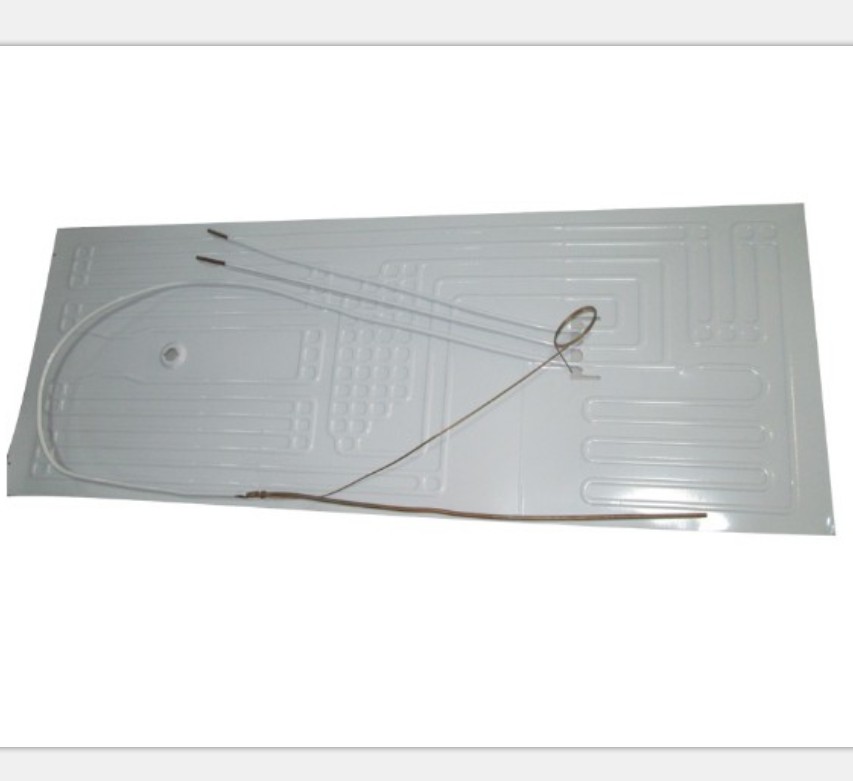

Roll Bond Aluminum Evaporator for Icebox

Share to:

Application
Products: Aluminium Roll bond evaporator for refrigerator.
Main use: Used in freezer, refrigerator, wine cabinet, showcase chiller etc.
Good quality, service and moderate price in the same field.
Technical Data
Raw material
(Al plate)
Al plate: the thickness of finished product is 1.1-2.0mm
he thickness of raw Al plate:1.7-2.15mm
Application
refrigeration parts
Structure
Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll bond evaporator
Key process
preparing materials – cleaning – printing – rolling – annealing - blowing up – punching –folding and sharpening –adding the capillary – assemble welding – leakage testing – cleaning and drying – coating - inspection – packing.
Performance
(1) Surface treated with powder coating to prevent corrosion
(2) Inner cleanness can meet the requirement of R134a and CFC cooling system
(3) Can satisfy the cooling capability requirements of the designed refrigerator.

  • Roll Bond Evaporator For Refrigerator
  • New
  • Refrigerator Part
  • R134a/R600A/R404A
  • Aluminum
  • White
  • CE
  • DRRZ-02
  • RETEKOOL
  • 8418999990
Quantity:

Application

Products: Aluminium Roll bond evaporator in refrigerator

Main use: Used in freezer, refrigerator.

Good quality, service and moderate price in the same field

Powerful production ability, quick delivery!



Technical Data

Raw material

(Al plate)

Al plate: the thickness of finished product is 1.1-2.0mm
The thickness of raw Al plate:1.7-2.15mm


Application



refrigeration parts

Structure

Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll bond evaporator

Key process
preparing materials – cleaning – printing – rolling – annealing - blowing up – punching –folding and sharpening –adding the capillary – assemble welding – leakage testing –  cleaning and drying – coating - inspection – packing.











Performance












  (1) Surface treated with powder coating to prevent corrosion
  (2) Inner cleanness can meet the requirement of R134a and CFC cooling system
  (3) Can satisfy the cooling capability requirements of the designed refrigerator.
Notation Max dimension: width 590mm, length 2050mm.
