GT-173
RETEKOOL
2018030102
| Quantity: | |
|---|---|

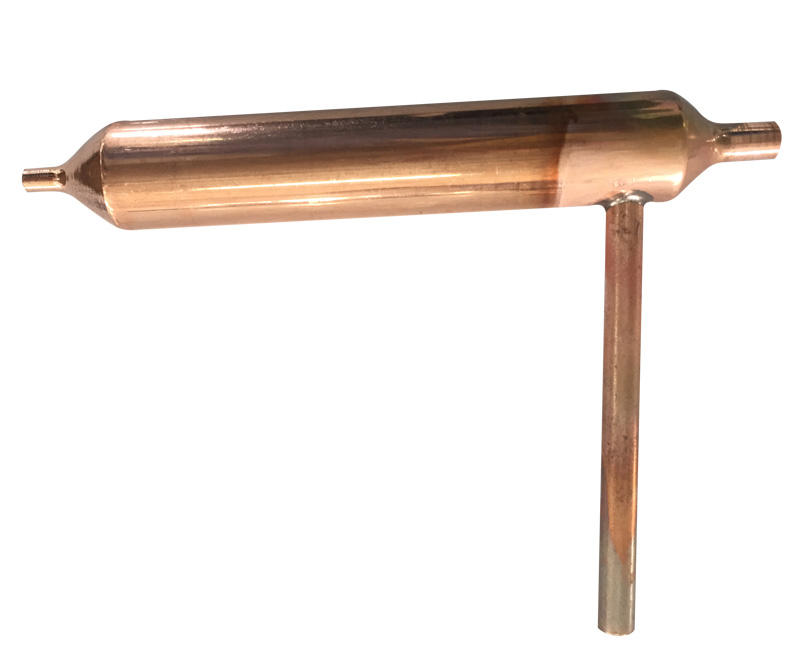

| Product name: | T Type Welded Fiter Drier for Refrigerator |
| Molecular sieves: | XH-9 |
| Application | Refrigerator,freezer,water cooler,showcase |
| Refrigerant | R12,R134a,R401,R500,R600 |
| Cap colour | Yellow/White/Blue/Red/Green different available |
| Special requestavailable | 1,Words can be printed on the body of driers |
| 2,Stop points available on both inlet and outlet or any one | |
| 3,Tags are also available for your choice |
| Model | Molec | External Diameter(D) | Length(L) | Length(L1) | Screen Depth(P) | |||
| Tolerances | ±5% | ±0.10mm | ±3.00mm | mm | ±2.00mm | |||
| WF10 | 10 | Φ16 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF10A | 10 | Φ19 | 98 | 40 | 45 | 50 | 55 | 24 |
| WF10B | 10 | Φ19 | 105 | 40 | 45 | 50 | 55 | 24 |
| WF12 | 12 | Φ19 | 109 | 40 | 45 | 50 | 55 | 24 |
| WF15 | 15 | Φ19 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF15A | 15 | Φ19 | 120 | 40 | 45 | 50 | 55 | 24 |
| WF20 | 20 | Φ19 | 141 | 40 | 45 | 50 | 55 | 24 |
| WF20A | 20 | Φ24 | 120 | 40 | 45 | 50 | 55 | 26 |
| WF25 | 25 | Φ24 | 125 | 40 | 45 | 50 | 55 | 26 |
| WF30 | 30 | Φ24 | 140 | 40 | 45 | 50 | 55 | 26 |
| WF35 | 35 | Φ24 | 155 | 40 | 45 | 50 | 55 | 26 |
| WF40 | 40 | Φ24 | 170 | 40 | 45 | 50 | 55 | 28 |
| WF50 | 50 | Φ29 | 160 | 40 | 45 | 50 | 55 | 30 |
| Product name: | T Type Welded Fiter Drier for Refrigerator |
| Molecular sieves: | XH-9 |
| Application | Refrigerator,freezer,water cooler,showcase |
| Refrigerant | R12,R134a,R401,R500,R600 |
| Cap colour | Yellow/White/Blue/Red/Green different available |
| Special requestavailable | 1,Words can be printed on the body of driers |
| 2,Stop points available on both inlet and outlet or any one | |
| 3,Tags are also available for your choice |
| Model | Molec | External Diameter(D) | Length(L) | Length(L1) | Screen Depth(P) | |||
| Tolerances | ±5% | ±0.10mm | ±3.00mm | mm | ±2.00mm | |||
| WF10 | 10 | Φ16 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF10A | 10 | Φ19 | 98 | 40 | 45 | 50 | 55 | 24 |
| WF10B | 10 | Φ19 | 105 | 40 | 45 | 50 | 55 | 24 |
| WF12 | 12 | Φ19 | 109 | 40 | 45 | 50 | 55 | 24 |
| WF15 | 15 | Φ19 | 115 | 40 | 45 | 50 | 55 | 24 |
| WF15A | 15 | Φ19 | 120 | 40 | 45 | 50 | 55 | 24 |
| WF20 | 20 | Φ19 | 141 | 40 | 45 | 50 | 55 | 24 |
| WF20A | 20 | Φ24 | 120 | 40 | 45 | 50 | 55 | 26 |
| WF25 | 25 | Φ24 | 125 | 40 | 45 | 50 | 55 | 26 |
| WF30 | 30 | Φ24 | 140 | 40 | 45 | 50 | 55 | 26 |
| WF35 | 35 | Φ24 | 155 | 40 | 45 | 50 | 55 | 26 |
| WF40 | 40 | Φ24 | 170 | 40 | 45 | 50 | 55 | 28 |
| WF50 | 50 | Φ29 | 160 | 40 | 45 | 50 | 55 | 30 |
