flat fin,louver fin and corrugated fin
Hydrophilic or Bare
galvanized plate or stainless steel plate
inner grooved or bare tube
12"*12"
RETEKOOL
12*12
| Quantity: | |
|---|---|

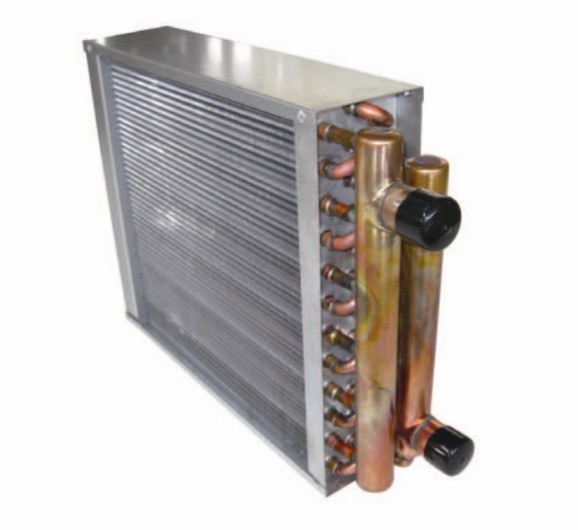

Water to air heat exchanger
Water to water sidearm heat exchanger
Water to water threaded ports sidearm heat exchanger
Water to water sweat ports sidearm heat exchanger
copper tube condenser
Materials:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
Specifications
| Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||
| | BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F |
| 12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A |
| 16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 |
| 16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 |
| 18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 |
| 18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 |
| 19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 |
| 20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 |
| 22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 |
| 20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 |
| 22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 |
MAX.Dimension:36*36
Water to air heat exchanger
Water to water sidearm heat exchanger
Water to water threaded ports sidearm heat exchanger
Water to water sweat ports sidearm heat exchanger
copper tube condenser
Materials:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
Specifications
| Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||
| | BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F |
| 12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A |
| 16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 |
| 16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 |
| 18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 |
| 18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 |
| 19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 |
| 20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 |
| 22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 |
| 20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 |
| 22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 |
MAX.Dimension:36*36
