DRHK-02
RETEKOOL
8419500090
| Availability: | |
|---|---|
| Quantity: | |

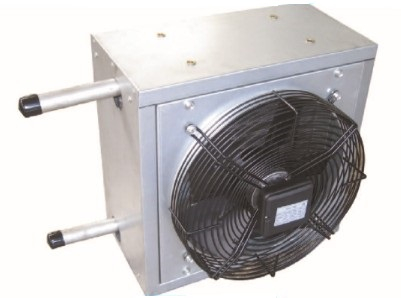

Water to air heat exchanger
Water to water sidearm heat exchanger
USA customer call it" Water to water sweat ports sidearm heat exchanger"
copper pipe heat exchanger,copper water to air heat exchanger
Materials:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
If you have interested in my products,please don't hesitate to contact us.
Specifications
copper fin heat exchanger Model | Capacity, | Water flowrate(gpm)/pressure drop(psi) | Air flowrate(cfm) | ||
| BTU/h | 180-160F | 180- 150F | 180- 170F | Delta T 20F | |
| 12×12 | 60000 | 6.2/0.04 | 4.1/0.02 | 12.4/0.14 | 273A |
| 16×16 | 80000 | 8.2/0.09 | 5.5/4.04 | 16.5/0.30 | 3630 |
| 16×18 | 100000 | 10.3/0.15 | 6.9/0.07 | 20.6/0.49 | 4544 |
| 18×18 | 120000 | 12.4/0.17 | 8.2/0.08 | 24.7/0.57 | 5450 |
| 18×20 | 140000 | 14.4/0.24 | 9.6/0.12 | 28.8/0.83 | 6360 |
| 19×20 | 150000 | 15.5/0.28 | 10.3/0.14 | 30.9/0.94 | 6810 |
| 20×20 | 160000 | 16.5/0.26 | 11.0/0.13 | 33.8/0.87 | 7270 |
| 22×22 | 200000 | 20.6/0.35 | 13.7/0.17 | 41.2/1.19 | 9080 |
| 20×25 | 190000 | 19.6/0.43 | 13.1/0.21 | 39.1/1.46 | 8630 |
| 22×25 | 220040 | 22.7/0.47 | 15.1/0.23 | 45.3/1.59 | 9990 |
for this product,aluminum vs copper heat exchanger MAX.Dimension:36*36
