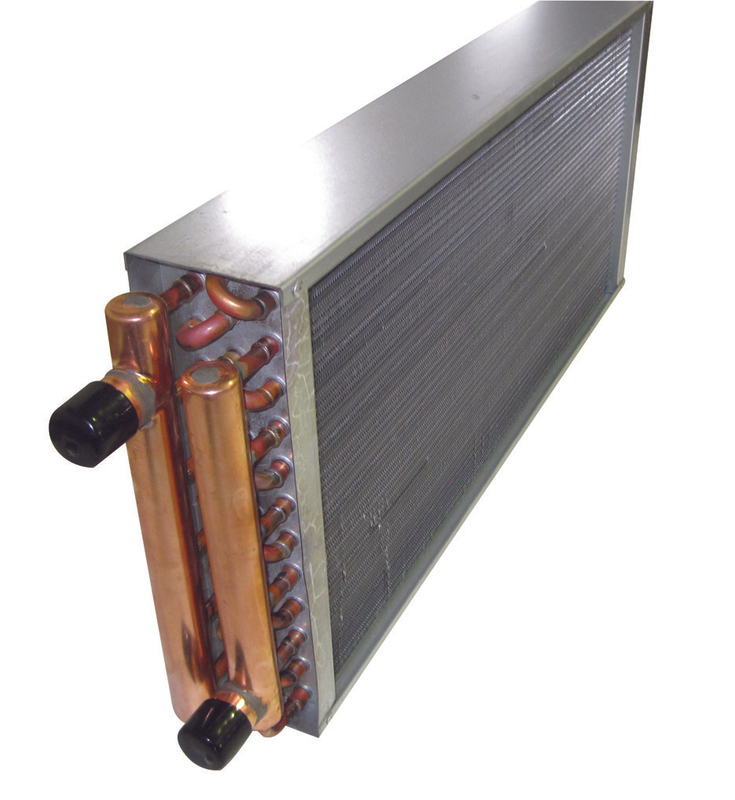

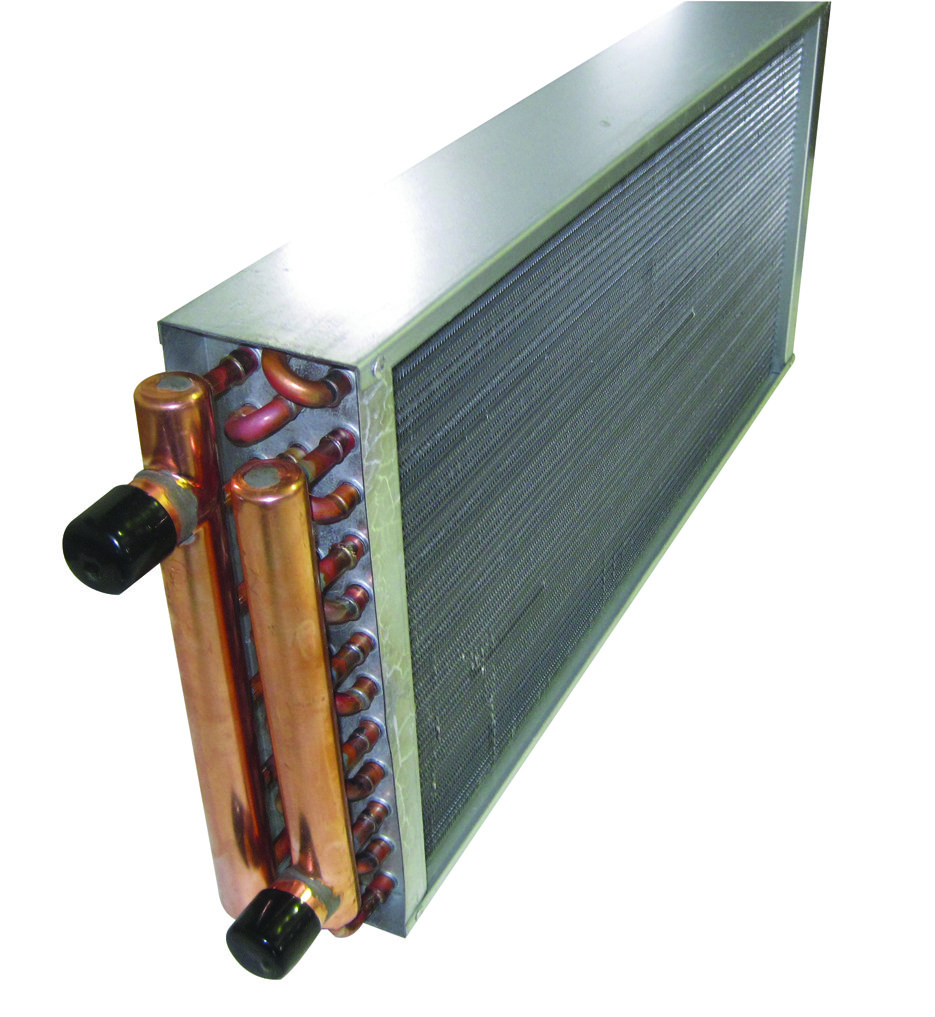

water to air copper tube heat exchanger for freezer

Share to:

We could supply copper water to air heat exchanger,also produce Copper Heat Exchanger For Freezing ,some customers send us drawing and we produce according to drawing,some customers call it Commercial Copper Heat Exchanger,we sells copper brazed heat exchanger to many different markets

  • 12*12
  • RETEKOOL
  • 8419500090
Quantity:



We could supply many different kinds of copper heat exchanger,water to air heat exchanger,copper tube  heat exchanger,heat exchanger for swimming pool, heat exchanger for house

 Materials:

 Tube coil: 3/8” seamless copper (3row)or other dimension

 Plate fin: Aluminum

 Core housing: Galvanized steel

 Header: 1" ID Copper or other dimension


Specifications



Model
Capacity, Water flowrate(gpm)/pressure drop(psi)  Air flowrate(cfm)
  BTU/h  180-160F  180- 150F  180- 170F Delta T 20F
12×12 60000 6.2/0.04 4.1/0.02 12.4/0.14 273A
16×16 80000 8.2/0.09 5.5/4.04 16.5/0.30 3630
16×18 100000 10.3/0.15 6.9/0.07 20.6/0.49 4544
18×18 120000 12.4/0.17 8.2/0.08 24.7/0.57 5450
18×20 140000 14.4/0.24 9.6/0.12 28.8/0.83 6360
19×20 150000 15.5/0.28 10.3/0.14 30.9/0.94 6810
20×20 160000 16.5/0.26 11.0/0.13 33.8/0.87 7270
22×22 200000 20.6/0.35 13.7/0.17 41.2/1.19 9080
20×25 190000 19.6/0.43 13.1/0.21 39.1/1.46 8630
22×25 220040 22.7/0.47 15.1/0.23 45.3/1.59 9990

copper pipe heat exchanger

aluminum vs copper heat exchanger

MAX.Dimension:36*36
